| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-B36-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, AEC-Q101 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 36V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 350Ω |
| Typical Voltage Temperature Coefficient | 30.4mV/K |
Nexperia BZX884S-B36-QYL is a general purpose Zener diode designed for high-reliability voltage regulation in industrial, automotive, and electronics manufacturing environments. This diode features a nominal Zener voltage of 36 V with a tight tolerance of ±2% and a maximum power dissipation of 365 milliwatts.

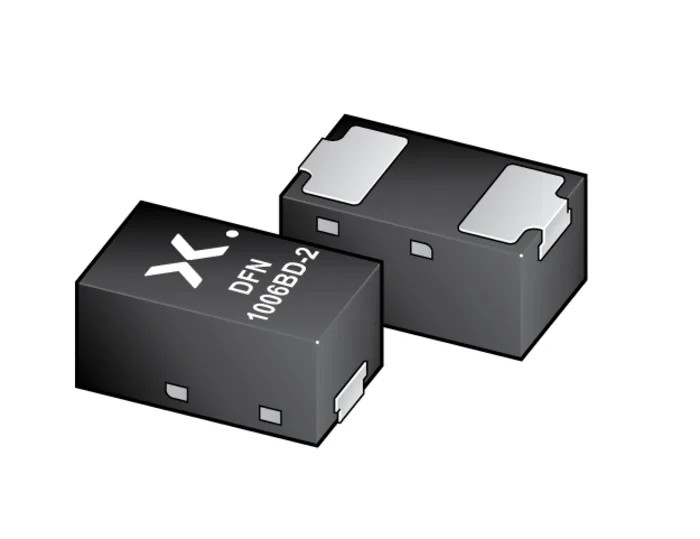

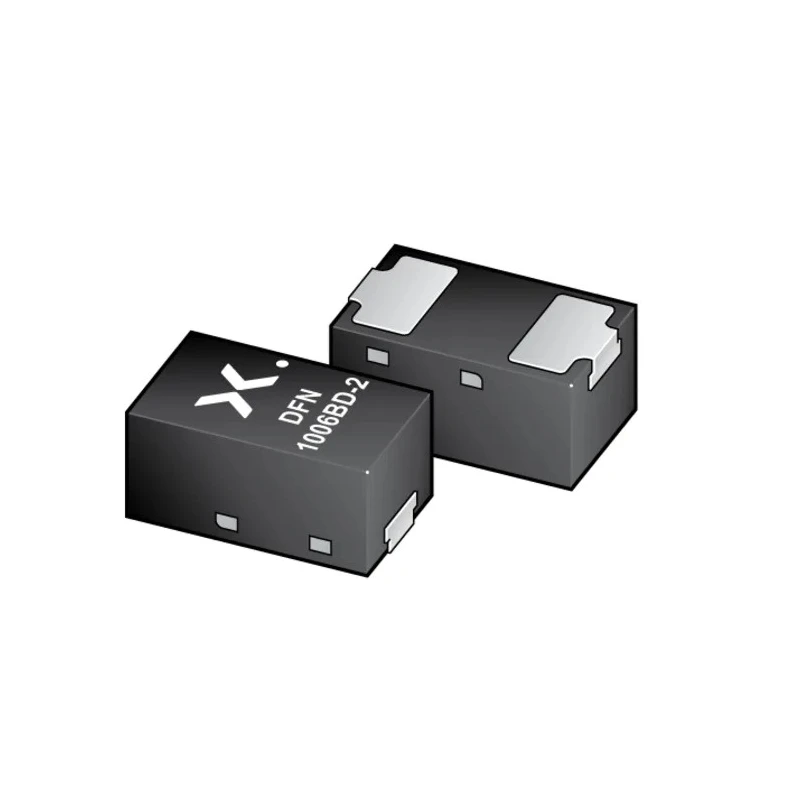

Housed in a leadless surface mount DFN1006BD-2 package measuring only 0.47 mm in height and 1 mm in length, it is ideal for space-constrained PCB designs requiring effective voltage stabilization. The device has a test current of 5 mA, maximum Zener impedance of 350 ohms, and an ultra-low maximum reverse leakage current of 50 nA, ensuring minimal power loss during operation. It demonstrates stable voltage regulation with a temperature coefficient of 30.4 mV/K.
Qualified to the AEC-Q101 standard, this diode is suited for automotive applications demanding high reliability and endurance under wide temperature ranges from -55°C to +150°C. The plastic SMD package includes side-wettable flanks for enhanced solder joint integrity, beneficial in automated assembly lines.
Common uses include circuit voltage regulation, protection from voltage spikes, and reference voltage generation in power supplies and automotive electronics. Its general purpose Zener characteristics make it versatile across laboratory, manufacturing, and automotive electronic assemblies.
Operates at nominal 36 V with ±2% tolerance. Maximum power rating of 365 mW for continuous operation. Compact, leadless DFN1006BD-2 surface mount package. Test current rated at 5 mA with maximum impedance of 350 Ω. Complies with RoHS and AEC-Q101 automotive standards.
Wide temperature operation range: -55°C to 150°C. Low reverse leakage current of 50 nA. Typical voltage temperature coefficient 30.4 mV/K. Side-wettable flanks for robust PCB mounting. Ideal for automotive and industrial electronics applications.
Choose Nexperia BZX884S-B36-QYL Zener diode for reliable voltage regulation in demanding electronic circuits. Explore more semiconductor solutions and automotive components at EnvMart.
