| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-B11-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, AEC-Q101 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 100nA |
| Nominal Zener Voltage Vz | 11V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 150Ω |
| Typical Voltage Temperature Coefficient | 5.4mV/K |

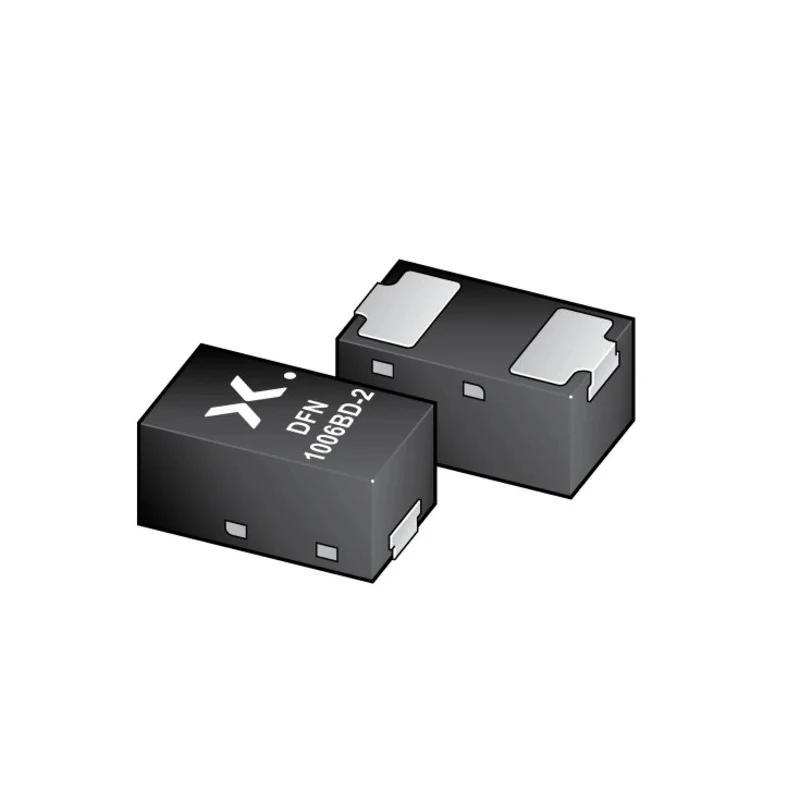

The Nexperia BZX884S-B11-QYL is a high-quality general purpose Zener diode designed for voltage regulation in electronic circuits. This device features a nominal Zener voltage of 11 V with a tolerance of ±2%, making it ideal for precision voltage reference applications.
Packaged in an ultra small DFN1006BD-2 leadless surface mount package, it offers excellent thermal performance with a maximum power dissipation of 365 mW, suitable for compact and space-constrained board designs.
The diode is tested at a current of 5 mA and exhibits low reverse leakage current of up to 100 nA, ensuring low power losses and improved circuit efficiency. Its wide operating temperature range from -55°C to 150°C allows reliable operation in demanding environments, including automotive industry standards compliancy with AEC-Q101.
The 2-pin surface mount design with side-wettable flanks facilitates automated assembly processes and enhances solder joint reliability. Typical applications include voltage regulation, voltage reference in power supplies, measurement instruments, and automotive electronic circuits.
Nominal Zener voltage of 11 V with 2% tolerance. Single diode configuration with 2 pins for surface mount assembly. Maximum power dissipation of 365 milliwatts. Operating temperature range from -55°C to +150°C. Low reverse leakage current of 100 nanoamperes maximum.
Package type DFN1006BD-2 with side-wettable flanks. Complies with RoHS and automotive standard AEC-Q101. Typical voltage temperature coefficient of 5.4 mV/K. Compact physical size: 1 mm length by 0.47 mm height. SMD package suitable for automated manufacturing.
This Zener diode series is suitable for industrial, automotive, telecommunications, and consumer electronics requiring stable voltage regulation and protection. Explore the comprehensive offering of semiconductor components and enhance your electronic product designs with Nexperia’s trusted performance and quality.
