Nexperia 1.30 V Zener Diode Single 365 mW 2% Surface Mount 2-Pin DFN1006BD-2 BZX884S-B30-QYL

Nexperia BZX884S-B30-QYL is a high-quality, general-purpose Zener diode designed for surface mounting applications in electronics and automotive industries. It is housed in an ultra-small DFN1006BD-2 leadless plastic package with side-wettable flanks, providing a compact footprint for modern PCB designs.

The diode offers a nominal Zener voltage of 30V with a ±2% tolerance, making it ideal for stable voltage regulation in sensitive electronic circuits. It supports a maximum power dissipation of 365 mW and can operate effectively within a temperature range from -55°C to 150°C, ensuring reliability across harsh environments.

The device features a low maximum reverse leakage current of 50 nA, minimizing current losses and enhancing efficiency. Its test current is rated at 5 mA, with a maximum Zener impedance of 300Ω, enabling precise voltage clamping and protection.

This diode complies with AEC-Q101 automotive standards and RoHS certification, confirming its robustness and environmental safety. Typical voltage temperature coefficient of 24.4 mV/K ensures consistent performance over varying operating temperatures.

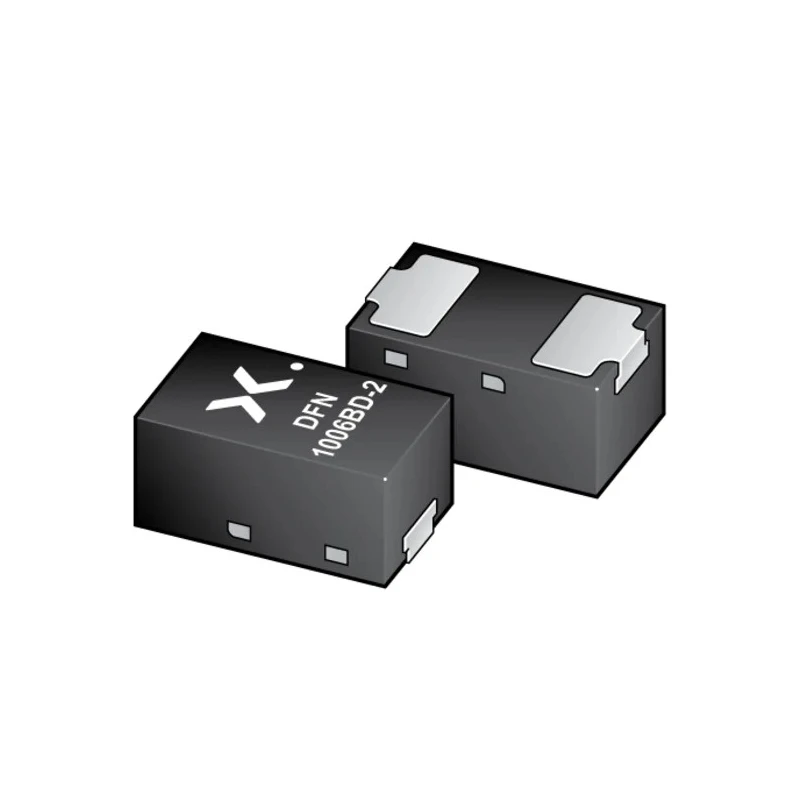

The compact 2-pin DFN1006BD-2 package measures approximately 1 mm in length and 0.47 mm in height, suitable for densely populated PCBs and space-constrained applications. It is recommended for use in automotive electronics, power supplies, and semiconductor circuits requiring reliable voltage stabilization and protection.

The diode configuration is single, designed for stable voltage regulation. Nominal Zener voltage is 30V with a ±2% tolerance. Surface mount package DFN1006BD-2 offers compact size and ease of assembly. Maximum power dissipation is 365 mW suitable for moderate power applications.

Test current of 5 mA ensures precise voltage control under load. Certified to AEC-Q101 automotive standards for robustness. Operating temperature range from -55°C to 150°C provides high reliability. Low reverse leakage current of 50 nA reduces power loss.

Compact physical dimensions enable usage in tight PCB layouts. Typical voltage temperature coefficient is 24.4 mV/K for stable operation.

This Nexperia Zener diode is an essential component for electronics designers seeking dependable voltage regulation and protection in automotive and industrial applications. Explore our extensive range of semiconductor products to find the suitable electronic components for your projects at EnvMart.
