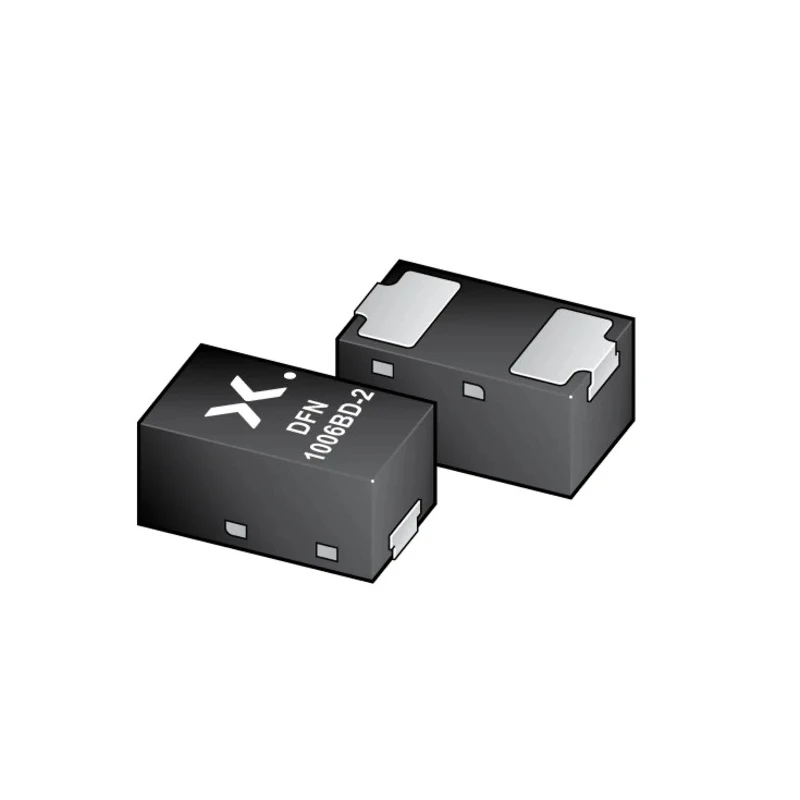

Nexperia 1.11 V 365 mW 2% Tolerance General Purpose Zener Diode Single 2-Pin Surface Mount DFN1006BD-2 BZX884S-B11-QYL

Nexperia BZX884S-B11-QYL is a general purpose zener diode designed for voltage regulation and protection applications in electronic circuits. It features a nominal zener voltage of 11 V with a tight ±2% tolerance, making it suitable for precise voltage control.

Housed in an ultra small DFN1006BD-2 2-pin surface mount package, the diode is ideal for compact PCB designs where space saving is critical. The height is 0.47 mm and length is 1 mm, offering an ultra-low profile that supports automated assembly.

With a maximum power dissipation of 365 mW and a test current of 5 mA, this diode is engineered to deliver reliable performance under normal operating conditions. The device operates within a wide temperature range from -55°C to 150°C, making it robust for industrial, automotive, and consumer electronics environments.

This diode complies with RoHS environmental directives and AEC-Q101 automotive qualification standards, ensuring high quality and reliability in demanding automotive applications.

Its electrical characteristics include a maximum zener impedance of 150 Ω and a maximum reverse leakage current of 100 nA, minimizing energy loss and noise in circuits. The typical voltage temperature coefficient is 5.4 mV/K, supporting stable voltage regulation across temperature variations.

Typical use cases cover industrial electronics, automotive electronics, power supply regulation, and any circuits requiring a stable reference voltage within the 11 V range. This diode is suitable for manufacturing environments requiring component consistency and quality assurance.

Single diode configuration suitable for voltage regulation applications. Maximum power dissipation rating of 365 mW ensures reliable operation. 2% voltage tolerance and 5 mA test current provide precision performance. Operates within temperature range from -55°C to 150°C for industrial use.

Complies with RoHS and AEC-Q101 automotive standards for quality assurance. Compact 2-pin DFN1006BD-2 surface mount package with height 0.47 mm and length 1 mm. Low maximum reverse leakage current of 100 nA minimizes loss and noise.

Typical voltage temperature coefficient of 5.4 mV/K for stable operation over temperature. Browse more Zener Diodes and semiconductor components on EnvMart for your industrial and automotive electronics needs.
