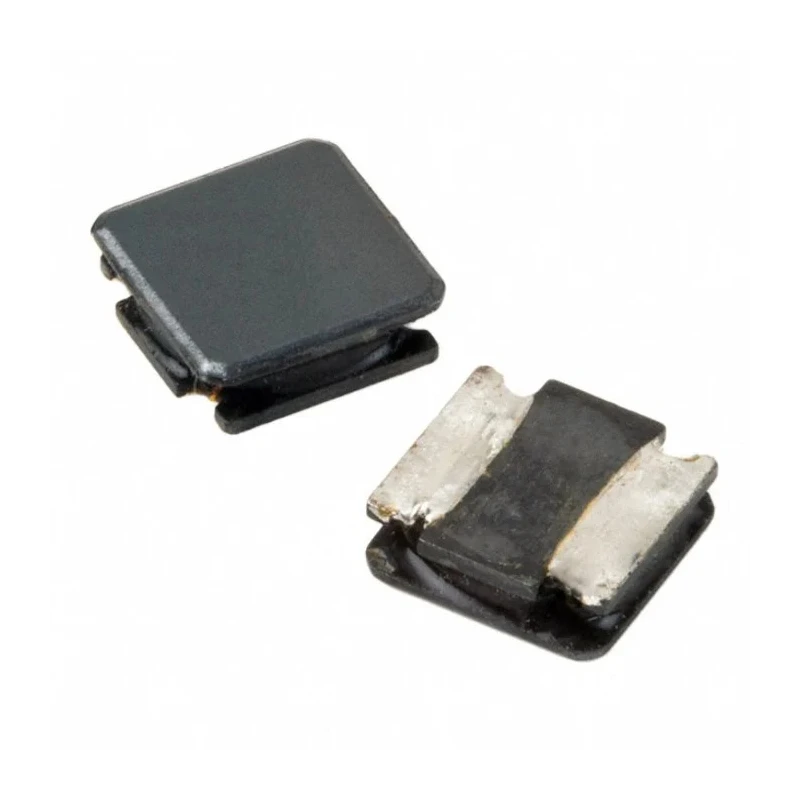

Abracon Shielded Surface Mount Inductor 3.9μH Ferrite Core ±20% 2.7A IDC Surface Mount ASPI-0628-3R9M-T1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 2.8mm |
| Length | 6mm |
| Model | ASPI-0628-3R9M-T1 |
| Depth | 2.8mm |
| Packaging | Tape & Reel |
| Series | ASPI-0628 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -25°C |
| Core Material | Ferrite |
| Inductance | 3.9μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 2.7A |
| Pin Count | 4 |
| Maximum DC Resistance | 31mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Ferrite Core |
| Small size and low profile | 2.8mm |
Key Features
- Compact surface mount package with 6mm length and 2.8mm height and depth.
- Ferrite core construction providing magnetic shielding and high reliability.
- Inductance tolerance of ±20% suitable for flexible circuit designs.
- Low DC resistance of 31 mΩ ensuring efficient current flow.
- Wide operating temperature range from -25°C to 125°C.
- RoHS compliant with tape and reel packaging for easy automated assembly.
- Suitable for portable communication devices, mobile phones, MP3 players, and digital cameras.
- High rated current with shielded design to minimize electromagnetic interference.
Product Description
Abracon ASPI-0628-3R9M-T1 shielded surface mount inductor is designed for high performance and compact integration in electronic circuits. Featuring a ferrite core and magnetically shielded by magnetic powder molding, this inductor provides excellent magnetic containment and high reliability against mechanical stress.
This 3.9μH inductance component supports a maximum DC current of 2.7 amps with a nominal inductance tolerance of ±20%, making it ideal for power management and filtering in portable communication equipment such as mobile phones, MP3 players, and digital cameras.
The low profile form factor with dimensions of 6 mm length, 2.8 mm height, and 2.8 mm depth enables integration into compact PCB layouts. Additionally, the tape and reel packaging supports efficient, automated manufacturing workflows.
With a maximum DC resistance of 31 milliohms, this surface mount inductor minimizes power loss while its maximum operating temperature of 125°C ensures stable performance across a wide range of industrial and consumer applications.
Its ferrite core construction and RoHS-compliant design make it suitable for environmentally friendly electronic manufacturing. The product is molded for robustness and features a surface mount termination style for ease of assembly.
Compact low profile design facilitates use in space-constrained applications. Magnetically shielded ferrite core reduces EMI and improves circuit integrity. High current handling supports demanding power requirements. Wide temperature operating range suitable for industrial and consumer electronics.
RoHS compliance aligns with environmental standards for electronic components. Tape and reel packaging ensures manufacturing efficiency and reduced handling damage. Ideal for power filtering and noise suppression in portable communication devices.
Reliable mechanical performance due to magnetic powder molding.
This surface mount inductor is categorized under Surface Mount Inductors within the Electronics & Electricals domain, useful for electronic component assembly in various industrial, telecommunications, and consumer electronics domains. Explore more in our Electronics Components category on EnvMart for related products that suit your manufacturing and repair needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 3.9μH.
It supports a maximum DC current of 2.7A.
The dimensions are 6mm in length, 2.8mm in height, and 2.8mm in depth.
The operating temperature range is from -25°C to 125°C.
It features a ferrite core construction, which provides magnetic shielding.
The maximum DC resistance is 31mΩ.
It is packaged in tape and reel format, facilitating automated assembly.
The inductance tolerance is ±20%.
It is suitable for portable communication devices, mobile phones, MP3 players, and digital cameras.
The termination style is surface mount, designed for ease of assembly.
Yes, it is RoHS compliant, aligning with environmental standards for electronic components.
This inductor belongs to the ASPI-0628 series.
