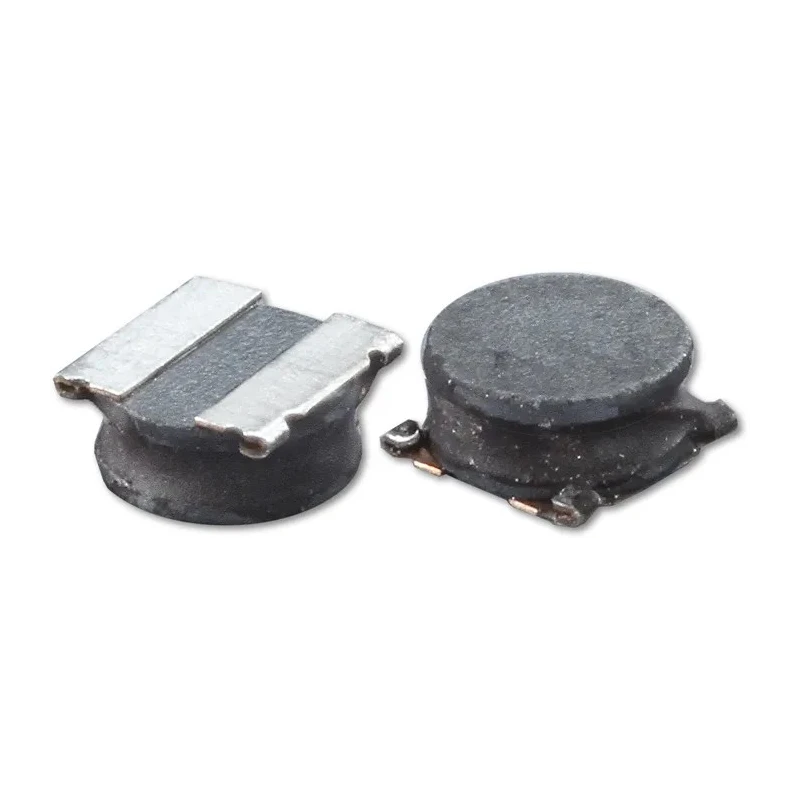

Abracon Shielded Surface Mount Inductor with Ferrite Core 22 μH Flat Wire Winding ±20% 570 mA Idc ASPI-0315FS-220M-T2
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.5mm |
| Brand | Abracon |
| Height | 1.5mm |
| Length | 3mm |
| Model | ASPI-0315FS-220M-T2 |
| Depth | 1.5mm |
| Packaging | Tape & Reel |
| Series | ASPI-0315FS |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 570mA |
| Pin Count | 4 |
| Maximum DC Resistance | 598mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 23MHz |
| Inductor Construction | Flat Wire Winding |
| Small size and low profile | 1.5mm |
Key Features
- Flat wire winding construction provides stability and reliability.
- Inductance tolerance is ±20 percent for versatile circuit designs.
- Maximum DC current rating of 570 mA supports moderate current applications.
- Compact size with dimensions 3 mm length, 1.5 mm height, and 1.5 mm depth.
- Magnetically shielded design minimizes electromagnetic interference.
- Suitable for surface mount technology with tape and reel packaging.
- Maximum self-resonant frequency is 23 MHz for high-frequency use cases.
- Core material is high-quality ferrite ensuring magnetic efficiency.
Product Description
Abracon ASPI-0315FS-220M-T2 shielded surface mount inductor features a ferrite core and flat wire winding with an inductance of 22 μH and tolerance of ±20%. This inductor has a maximum DC current rating of 570 mA and a maximum DC resistance of 598 mΩ, making it suitable for moderate current electronic circuits.
This component is magnetically shielded by magnetic powder molding to reduce EMI and ensure signal integrity. It is designed for surface mount applications and supplied in tape and reel packaging, supporting efficient automated assembly processes.
Compact with a length of 3 mm, height and depth of 1.5 mm each, and a diameter of 2.5 mm, the ASPI-0315FS-220M-T2 is ideal for space-constrained modern devices such as mobile phones, digital cameras, MP3 players, and other portable communication equipment.
The inductor offers a maximum self resonant frequency of 23 MHz, supporting high-frequency applications. It is RoHS compliant, ensuring environmental safety and compatibility with regulatory requirements.
Its robust ferrite core and flat wire winding construction provide strong mechanical reliability and consistent electrical performance. Operating temperature range is from -40°C to 125°C, suitable for various environments.
Typical industrial and commercial uses include electronic circuit filtering, energy storage in DC-DC converters, power supplies, and signal conditioning in consumer electronics, telecommunication devices, and portable instrumentation.
Flat wire winding construction provides stability and reliability. Inductance tolerance of ±20% for versatile circuit designs. Maximum DC current rating of 570 mA supports moderate currents. Compact and low profile dimensions optimize PCB space.
Magnetically shielded to reduce electromagnetic interference. Tape and reel packaging supports automated manufacturing. Maximum self resonant frequency of 23 MHz for high-frequency use. Ferrite core ensures efficient magnetic performance.
RoHS compliant for environmental safety. Explore more high quality Surface Mount Inductors and related components in the Electronics Components category at EnvMart for your industrial and commercial design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 22 μH with a tolerance of ±20%.
This model has a maximum DC current rating of 570 mA, making it suitable for moderate current applications.
The dimensions of this inductor are 3 mm in length, 1.5 mm in height, and 1.5 mm in depth.
The maximum self-resonant frequency is 23 MHz, which supports high-frequency applications.
It features a ferrite core, which ensures efficient magnetic performance.
The inductor is supplied in tape and reel packaging, which supports automated manufacturing processes.
The operating temperature range is from -40°C to 125°C, making it suitable for various environments.
The maximum DC resistance is 598 mΩ, which is relevant for power loss considerations in circuits.
The termination style is surface mount, which is compatible with surface mount technology applications.
Yes, it is RoHS compliant, ensuring it meets environmental safety and regulatory requirements.
This inductor is suitable for applications such as electronic circuit filtering, energy storage in DC-DC converters, and signal conditioning in consumer electronics.
The flat wire winding construction provides stability and reliability, enhancing the inductor's performance in circuits.
