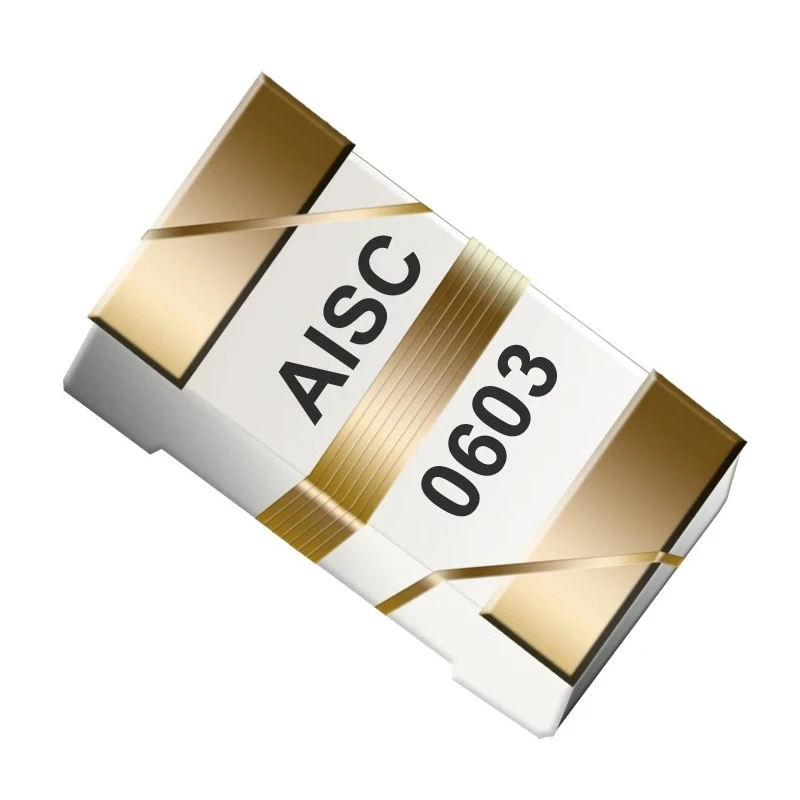

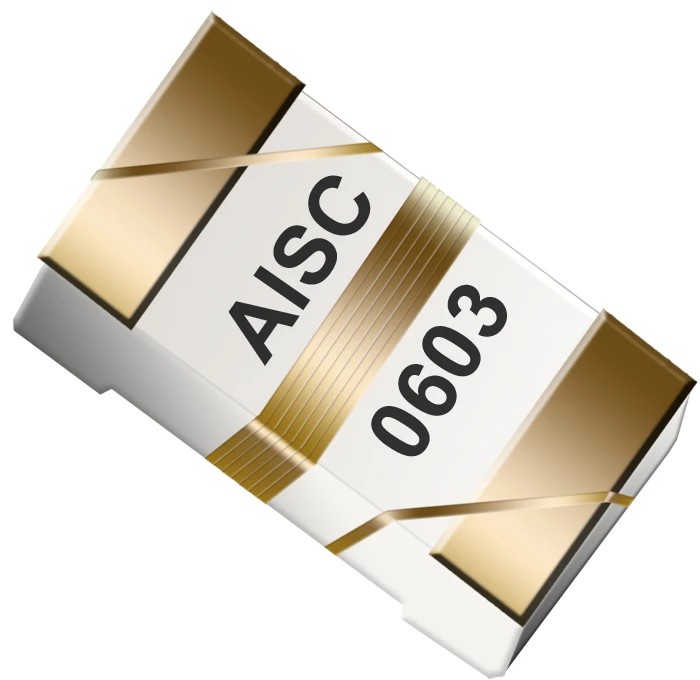

Abracon Unshielded Surface Mount Inductor with Ferrite Core 470 nH 5% Tolerance 470 mA AISC-0603F-R47J-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1mm |
| Length | 1.6mm |
| Model | AISC-0603F-R47J-T |
| Depth | 1mm |
| Packaging | Tape & Reel |
| Series | AISC-0603F |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 470nH |
| Standards/Approvals | Pb RoHS/RoHS II, ISO 9001 / QS 9000, ISO 9001 :2008 |
| Package/Case | Surface Mount |
| Maximum DC Current | 470mA |
| Pin Count | 2 |
| Maximum DC Resistance | 0.37Ω |
| Inductance Tolerance | 5 % |
| Inductor Construction | Wirewound |
| Standards/ApprovalsPb RoHS/RoHS II, ISO 9001 / QS 9000, ISO 9001 | 2008 |
Key Features
- Unshielded ferrite core construction for stable inductance under load.
- Inductance value of 470 nanohenries with a tolerance of 5 percent.
- Maximum DC current rating of 470 milliamps to prevent saturation.
- Compact surface mount package measuring 1.6 mm in length for PCB integration.
- Wirewound inductor construction to ensure durability and performance.
- Operating temperature range from minus 40 to plus 85 degrees Celsius.
- Maximum DC resistance of 0.37 ohms to minimize power loss.
- Supplied in tape and reel packaging for automated assembly processes.
Product Description
The Abracon AISC-0603F-R47J-T is an unshielded surface mount inductor that utilizes a ferrite core and wirewound construction to provide a precise inductance of 470 nH with 5% tolerance. Designed for demanding electronic applications, this component is suitable for use in devices such as camcorders, LED TVs, and other consumer electronic products.
Its compact surface mount package size of 1.6 mm length, 1 mm height, and 1 mm depth enables easy mounting on densely packed printed circuit boards. The inductor supports a maximum DC current of 470 mA and exhibits a low DC resistance of 0.37 ohms, ensuring efficient operation with minimal losses.
The product is manufactured to meet Pb RoHS/RoHS II and ISO 9001 quality and environmental standards, underscoring its reliability and compliance with international regulations. The operational temperature range spans from -40°C to +85°C, making it suitable for harsh industrial and commercial environments.
The tape and reel packaging format provides packaging compatibility with automated manufacturing systems, enhancing production efficiency. Featuring 2 pins for surface mounting, this inductor supports various industrial, laboratory, and electronics manufacturing uses.
Unshielded ferrite core inductor for stable inductance. Wirewound construction for durability and performance. 470 nH inductance with 5% tolerance for precision applications. Maximum DC current of 470 mA and 0.37 Ω DC resistance.
Compact 1.6 mm length surface mount package. Operation between -40°C and +85°C temperature range. Compliant with RoHS and ISO 9001 certification standards. Tape and reel packaging suitable for automated assembly. 2-pin configuration for PCB surface mounting.
This Abracon Surface Mount Inductor is ideally suited for use across electronics manufacturing, industrial devices, and laboratory instrumentation requiring reliable inductance components. Its construction and compliance ensure it meets stringent performance and environmental criteria. Browse EnvMart for more surface mount electronic components from Abracon and other top brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 470 nanohenries (nH) with a tolerance of 5%.
This inductor has a maximum DC current rating of 470 milliamps (mA) to prevent saturation.
The inductor measures 1.6 mm in length, 1 mm in height, and 1 mm in depth.
It operates within a temperature range of -40°C to +85°C.
The maximum DC resistance is 0.37 ohms, which helps minimize power loss.
It features a wirewound construction with a ferrite core for stable inductance under load.
It is supplied in tape and reel packaging, suitable for automated assembly processes.
The inductor complies with Pb RoHS/RoHS II and ISO 9001 quality standards.
This model has 2 pins for surface mounting on printed circuit boards (PCBs).
It is suitable for use in various electronic applications, including consumer electronics like camcorders and LED TVs.
This inductor is part of the AISC-0603F series.
The country of origin for this inductor is India.
