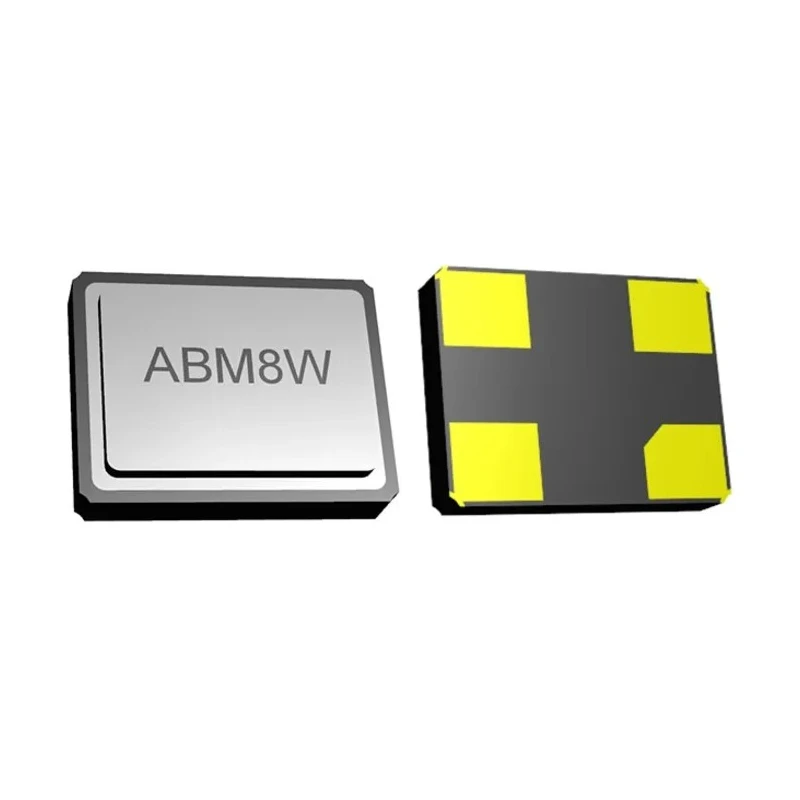

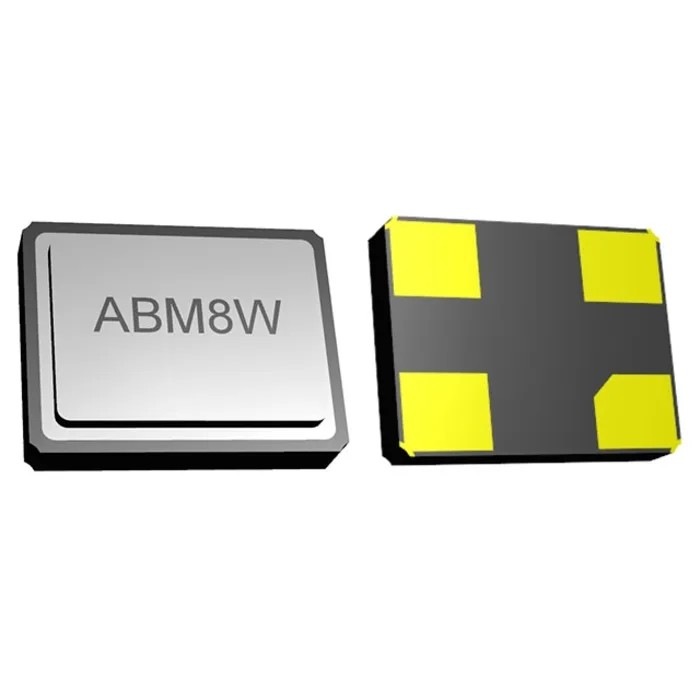

Abracon 16 MHz Crystal Unit ±10 ppm Surface Mount 4-Pin 0.75 mm Height 3.2 mm Length 2.5 mm Width ABM8W-16.0000MHZ-8-K1Z-T3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.75mm |
| Length | 3.2mm |
| Model | ABM8W-16.0000MHZ-8-K1Z-T3 |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ABM8W |
| Maximum Operating Temperature | 125°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 16MHz |
| Load Capacitance | 4pF |
| Series Resistance | 70Ω |
Key Features
- Operates at a standard frequency of 16 MHz for reliable oscillation.
- Features a 4-pin surface mount package with dimensions 3.2 mm length, 2.5 mm width, and 0.75 mm height.
- Load capacitance is 4 pF ensuring stable circuit performance.
- Designed for operation between -40°C to 125°C for wide temperature range applications.
- Series resistance is 70 Ω optimizing energy consumption and signal quality.
- Complies with RoHS standards confirming environmental safety regulations.
- Seam sealed construction enhances long-term reliability and stability.
- Ideal for IoT devices, wearables, Bluetooth, BLE, wireless modules, and ultra-low power MCUs.
Product Description
The Abracon ABM8W-16.0000MHZ-8-K1Z-T3 16 MHz Crystal Unit is a precisely engineered surface mount device designed for high stability and reliability in demanding electronic applications.
This crystal unit operates at a nominal frequency of 16 MHz with a tight frequency tolerance of ±10 ppm and frequency stability under the same tolerance, suitable for accurate timing in various circuits.
The unit utilizes a compact 4-pin surface mount package with a low profile, measuring 3.2 mm in length, 2.5 mm in width, and 0.75 mm in height. Its load capacitance is set at 4 pF to match circuit requirements.
It is capable of reliable operation across a wide temperature range from -40°C to 125°C, making it suitable for industrial, automotive (non-automotive standard), and consumer electronics environments.
The crystal features a series resistance of 70 Ω which balances power consumption and signal integrity. The device is seam sealed to ensure long-term stability and is lead-free, complying with RoHS and RoHS II directives ensuring environmentally friendly manufacturing.
Designed primarily for Internet of Things (IoT) applications, wearables, Bluetooth and Bluetooth Low Energy (BLE) modules, wireless sensor networks, and ultra-low power microcontroller units, this crystal unit supports optimized energy consumption while maintaining frequency accuracy.
Operates at 16 MHz with ±10 ppm frequency tolerance. Compact surface mount with 4 pins measuring 3.2 x 2.5 x 0.75 mm. Load capacitance is 4 pF for signal circuit stability. Wide operating temperature range from -40°C to 125°C.
Series resistance of 70 Ω for balanced power and signal. RoHS compliant and lead-free construction. Seam sealed for enhanced reliability. Ideal for IoT, wearables, BLE, and ultra-low power MCU applications.
This crystal unit is perfect for use in industrial electronics, wireless communications, consumer electronics, and other applications requiring precise frequency timing and compact form factor components.
Explore more electronics components and Crystal Units at EnvMart for reliable, high-quality parts meeting technical specifications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a standard frequency of 16 MHz, providing reliable oscillation for various applications.
It features a compact surface mount package with dimensions of 3.2 mm in length, 2.5 mm in width, and 0.75 mm in height.
The load capacitance is set at 4 pF, which ensures stable circuit performance in various applications.
It has a series resistance of 70 Ω, optimizing energy consumption and signal quality.
This unit can operate reliably between -40°C and 125°C, making it suitable for a wide range of environments.
It is designed for surface mounting, which is ideal for compact electronic applications.
The crystal unit is packaged in Tape & Reel, facilitating automated assembly processes.
Yes, it complies with RoHS standards, confirming that it meets environmental safety regulations.
It is ideal for Internet of Things (IoT) devices, wearables, Bluetooth, BLE modules, and ultra-low power microcontroller units.
This model has a pin count of 4, which is typical for surface mount crystal units.
It belongs to the ABM8W series, known for its high stability and reliability in electronic applications.
The frequency tolerance is ±10 ppm, ensuring accurate timing in various circuits and applications.
