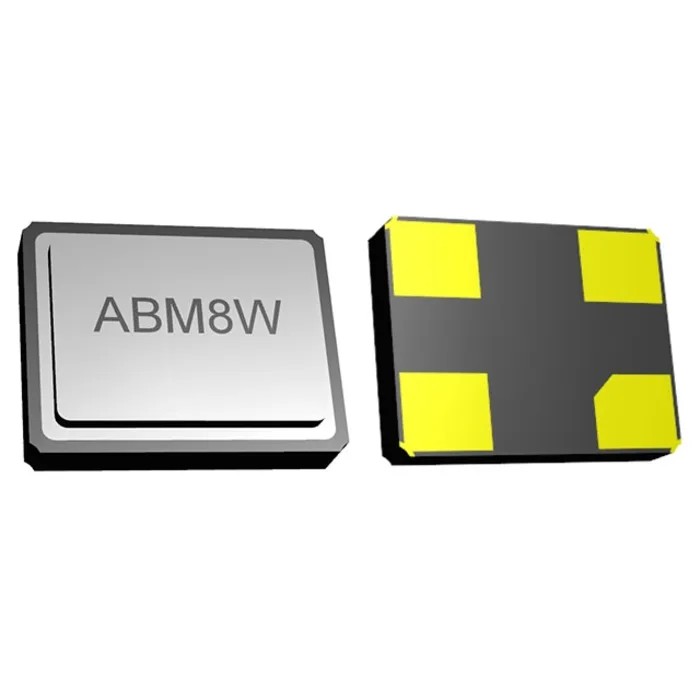

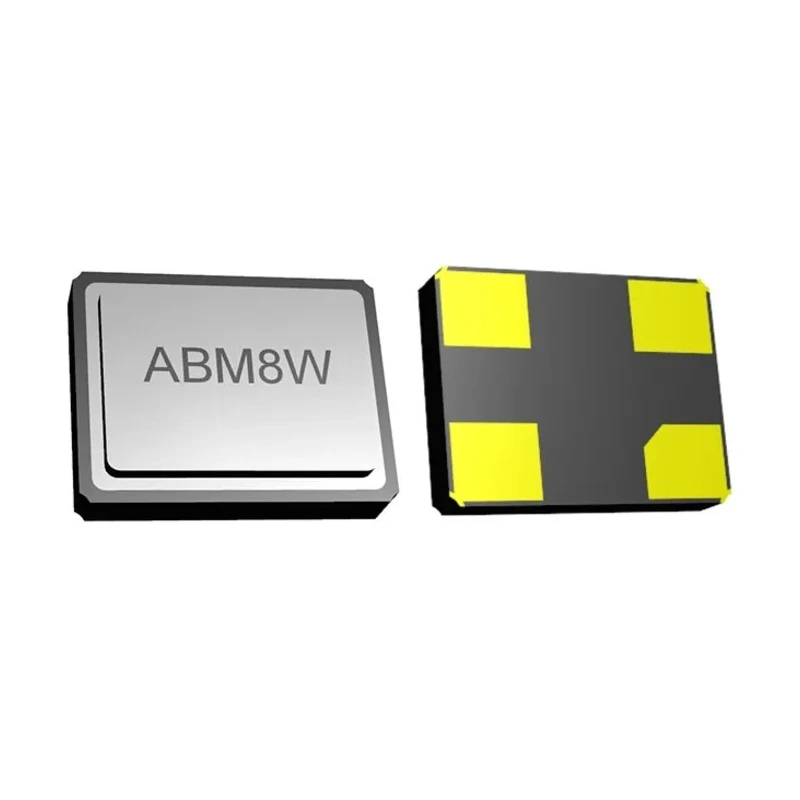

Abracon 16 MHz Crystal Unit Surface Mount 4-Pin 3.2 mm x 2.5 mm x 0.75 mm ABM8W-16.0000MHZ-8-K1Z-T3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.75mm |
| Length | 3.2mm |
| Model | ABM8W-16.0000MHZ-8-K1Z-T3 |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ABM8W |
| Maximum Operating Temperature | 125°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 16MHz |
| Load Capacitance | 4pF |
| Series Resistance | 70Ω |
Key Features
- The crystal unit operates at a standard frequency of 16 MHz with a frequency tolerance of ±10 ppm.
- It features a compact surface mount package measuring 3.2 mm in length, 2.5 mm in width, and 0.75 mm in height.
- Designed with 4 pins and optimized for energy-efficient applications such as IoT and wearables.
- Suitable for operating temperatures ranging from -40°C to 125°C, ensuring durability under harsh conditions.
- Offers a load capacitance of 4 pF and a series resistance of 70 Ω for stable oscillation performance.
- Constructed with a seam-sealed design to ensure long-term reliability and is RoHS compliant.
- Ideal for Bluetooth, Bluetooth Low Energy (BLE), wireless modules, and ultra-low power microcontrollers.
Product Description
Abracon ABM8W-16.0000MHZ-8-K1Z-T3 is a 16 MHz crystal unit designed for surface mount applications with a 4-pin configuration and precise frequency stability of ±10 ppm. Its low profile and compact dimensions of 3.2 mm by 2.5 mm by 0.75 mm make it ideal for space-constrained electronic circuits.
This crystal unit is engineered to support a broad temperature range from -40°C to 125°C, making it reliable for industrial, IoT, wearable, and wireless communication applications. It features a 4 pF load capacitance and a series resistance of 70 Ω, ensuring consistent and stable oscillation in low-power environments.
The product is seam sealed for enhanced long-term stability and is compliant with RoHS standards, promoting environmental safety. Its tape and reel packaging facilitates automated assembly processes and reduces handling damage.
This crystal unit suits applications including Bluetooth/BLE modules, ultra-low power MCUs, machine-to-machine connectivity, and other IoT related devices requiring precise timing and compact form factors.
Operates at a standard frequency of 16 MHz with ±10 ppm tolerance. Compact surface mount design for efficient PCB layout. Wide operating temperature range of -40°C to 125°C. Load capacitance 4 pF and series resistance 70 Ω for stable oscillation.
Seam sealed for durability and improved reliability. RoHS compliant, lead-free construction for environmental compliance. Optimized for low power consumption applications. Explore the Abracon range of Crystal Units and other electronic components at EnvMart for your precise and reliable timing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 16 MHz with a frequency tolerance of ±10 ppm.
This model has compact dimensions of 3.2 mm in length, 2.5 mm in width, and 0.75 mm in height.
It features a load capacitance of 4 pF and a series resistance of 70 Ω for stable oscillation performance.
The operating temperature range for this model is from -40°C to 125°C, making it suitable for various applications in harsh conditions.
It is packaged in tape and reel format, which facilitates automated assembly processes and reduces handling damage.
This unit is designed for surface mount applications, featuring a 4-pin configuration.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
This crystal unit is optimized for applications such as Bluetooth, Bluetooth Low Energy (BLE), wireless modules, and ultra-low power microcontrollers.
The country of origin for this product is India.
This model is part of the ABM8W series of crystal units.
The seam-sealed design enhances long-term reliability and stability of the crystal unit, ensuring consistent performance over time.
This crystal unit has a pin count of 4, suitable for various electronic circuit designs.
