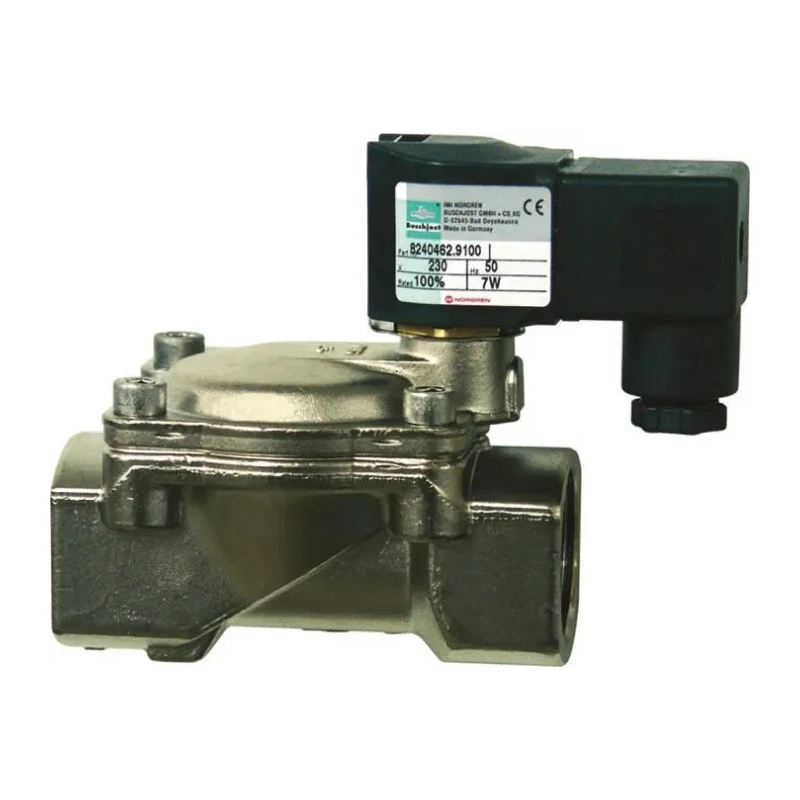

Buschjost Solenoid Valve 2 Port Normally Closed Brass Body G3/4 Threaded Connections 230V AC 16 Bar 8240300.9101.23050
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Buschjost |
| Body Material | Brass |
| Maximum Operating Pressure | 16 bar |
| Inlet Connection Type | Threaded |
| Series | 82 4 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 20mm |
| Supply Voltage | 230V ac |
| Hazardous Area Certification | Class EEx m II T4 |
| Inlet Port Size | G3/4 |
| Default Valve Position | NC |
| Flow Factor Kv | 6.1m³/h |
Key Features
- Compact functional design for reliable operation.
- Suitable for neutral gases and liquid fluids such as air and water.
- Valve operates with differential pressure for efficiency.
- High flow rate with 20 mm orifice diameter and Kv 6.1 m³/h.
- Easy maintenance due to click-on solenoid interchangeable without tools.
- Operates safely up to 16 bar maximum pressure.
- Can withstand operating temperatures from -10°C to +50°C.
- Complies with EN 60529 IP65 and other industrial standards.
Product Description
The Buschjost 8240300.9101.23050 solenoid valve is a high-performance normally closed (NC) 2/2 way valve designed to operate at 230V AC. Featuring a robust brass body and threaded inlet/outlet connections of size G3/4, this valve is ideal for handling neutral fluids including liquids and gases such as air and water. It is engineered for industrial environments requiring a maximum operating pressure of 16 bar and operating temperature range from -10°C to +50°C.
Its compact and functional design incorporates a 20 mm orifice diameter, providing a high flow factor Kv of 6.1 m³/h, ensuring efficient fluid control. The valve operates with differential pressure and includes servo assist, delivering smooth and reliable operation. The click-on solenoid design enables quick and easy solenoid interchangeability without the need for tools, reducing maintenance downtime.
The valve meets rigorous standards including EN 60529 IP65 for ingress protection, EN 983, EN 60204-1, EN 292, DIN 40050, and optional CSA approval, supporting safe deployment in demanding industrial, laboratory, HVAC, manufacturing, and fluid power applications. The design supports optional mounting positions, with vertical installation preferred for optimal performance.
Constructed from strong, durable materials, this Buschjost solenoid valve provides lasting durability and reliable control of fluid flow in pneumatic and hydraulic systems. It is suited for use with neutral gases and liquids, and installation of a strainer is recommended when operating with contaminated fluids to protect valve integrity.
Compact functional design for reliable operation. Suitable for neutral gases and liquid fluids such as air and water. Valve operates with differential pressure for efficiency. High flow rate with 20 mm orifice diameter and Kv 6.1 m³/h.
Easy maintenance due to click-on solenoid interchangeable without tools. Operates safely up to 16 bar maximum pressure. Can withstand operating temperatures from -10°C to +50°C. Complies with EN 60529 IP65 and other industrial standards.
Servo assist feature enhances valve performance. Reliable for industrial, fluid power, HVAC, and manufacturing applications. Explore more Solenoid Valves and industrial valve solutions in our catalog to find the best fit for your technical and operational requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 16 bar.
This model has an orifice diameter of 20 mm.
The supply voltage for this solenoid valve is 230V AC.
The valve body is constructed from brass.
It can operate within a temperature range of -10°C to +50°C.
The valve has a flow factor Kv of 6.1 m³/h, indicating its efficiency in fluid control.
This valve features threaded inlet connections of size G3/4.
The default valve position is normally closed (NC).
It complies with EN 60529 IP65 and other industrial standards including EN 983 and EN 60204-1.
It is suitable for handling neutral gases and liquid fluids such as air and water in industrial environments.
Maintenance is simplified due to the click-on solenoid design, allowing for easy interchangeability without tools.
The country of origin for this solenoid valve is Germany.
