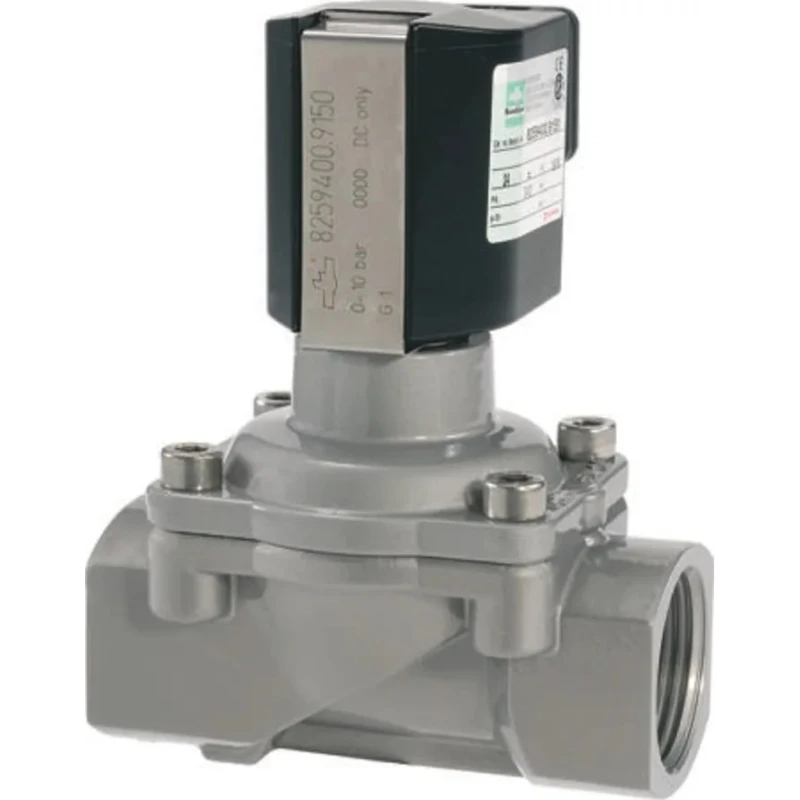

Buschjost 2 Port NC G1 Solenoid Valve, 24V, 316 Stainless Steel Body, Orifice 25mm, Max Pressure 10 Bar 8259400.9151.02400
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Buschjost |
| Body Material | 316 Stainless Steel |
| Maximum Operating Pressure | 10 bar |
| Series | 82590/84490 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 25mm |
| Supply Voltage | 24V |
| Hazardous Area Certification | x II 2 GD EEx me II T3, x II 3 GD EEx nA II T4 |
| Inlet Port Size | G1 |
| Default Valve Position | NC |
| Inlet Thread Standard | G1 |
| Inlet Port Gender | Female |
| Flow Factor Kv | 8m³/h |
Key Features
- Operates at 24V supply voltage for precise electromagnetic actuation.
- Constructed with 316 stainless steel body for durability and corrosion resistance.
- Designed with a 25mm orifice diameter and supports a maximum operating pressure of 10 bar.
- Suitable for use with gases and liquids in industrial fluid power systems.
- Features a normally closed (NC) valve position with female G1 inlet and outlet ports.
- Complies with DIN VDE 0580, EN 61000-6-1, EN 61000-6-3, PED 97/23/EG, and IP65 standards.
- Equipped with servo assist and designed for systems with low or fluctuating pressure conditions.
- Electromagnetically actuated diaphragm valve suitable for vacuum service.
Product Description
Buschjost 8259400.9151.02400 Solenoid Valve is a 2-port, normally closed (NC) valve engineered for controlling gas and liquid flows in demanding industrial environments. It is designed to operate at 24V supply voltage and built with a robust 316 stainless steel body to ensure long-term durability and corrosion resistance.
The valve features a 25mm orifice diameter that supports a maximum operating pressure of 10 bar, making it suitable for a wide range of fluid power and pipeline applications. The inlet and outlet ports both have female G1 threading, ensuring compatibility with standardized pipe fittings.
This valve is part of the 82590/84490 series known for its diaphragm construction, allowing use with partially aggressive media and vacuum conditions. It is electromagnetically actuated, providing reliable operation without the need for minimum pressure differentials.
Key performance and safety standards met include DIN VDE 0580, EN 61000-6-1, EN 61000-6-3, PED 97/23/EG, and EN 60529 IP65 ingress protection. The valve also carries hazardous area certifications x II 2 GD EEx me II T3 and x II 3 GD EEx nA II T4, making it suitable for use in classified environments.
Operates at 24V for precise electromagnetic actuation. 316 stainless steel body provides robustness and corrosion resistance. Supports pressures up to 10 bar for industrial applications. Normally closed valve position ideal for safety shutoffs.
Certified for hazardous areas and compliance with international standards. Servo assist feature improves valve responsiveness and efficiency. Interchangeable Click-on® magnet system enables tool-free maintenance. Suitable for gas, liquid, and vacuum system applications.
Designed to work without minimum pressure differential for system flexibility.
This Buschjost solenoid valve is widely used in industrial fluid power, manufacturing, water treatment, and process control applications where reliable valve operation is critical. Its robust materials, certifications, and engineering features make it a preferred choice for high-performance valve automation.
Explore more Solenoid Valves and related industrial valves at EnvMart to find the ideal components for your fluid control systems and industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 10 bar.
The orifice diameter of this model is 25mm.
This valve operates at a supply voltage of 24V.
The valve body is constructed from 316 stainless steel, providing durability and corrosion resistance.
The default valve position is normally closed (NC).
The maximum operating temperature is +50°C, and the minimum operating temperature is -10°C.
The inlet port size is G1 with female threading.
Yes, it complies with DIN VDE 0580, EN 61000-6-1, EN 61000-6-3, PED 97/23/EG, and has IP65 ingress protection.
The valve has hazardous area certifications x II 2 GD EEx me II T3 and x II 3 GD EEx nA II T4.
The flow factor (Kv) for this model is 8m³/h.
This solenoid valve is suitable for use in industrial fluid power, manufacturing, water treatment, and process control applications.
This model belongs to the 82590/84490 series.
