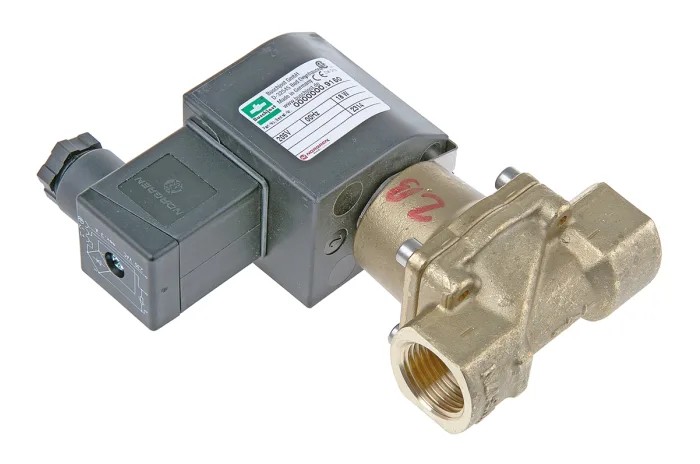

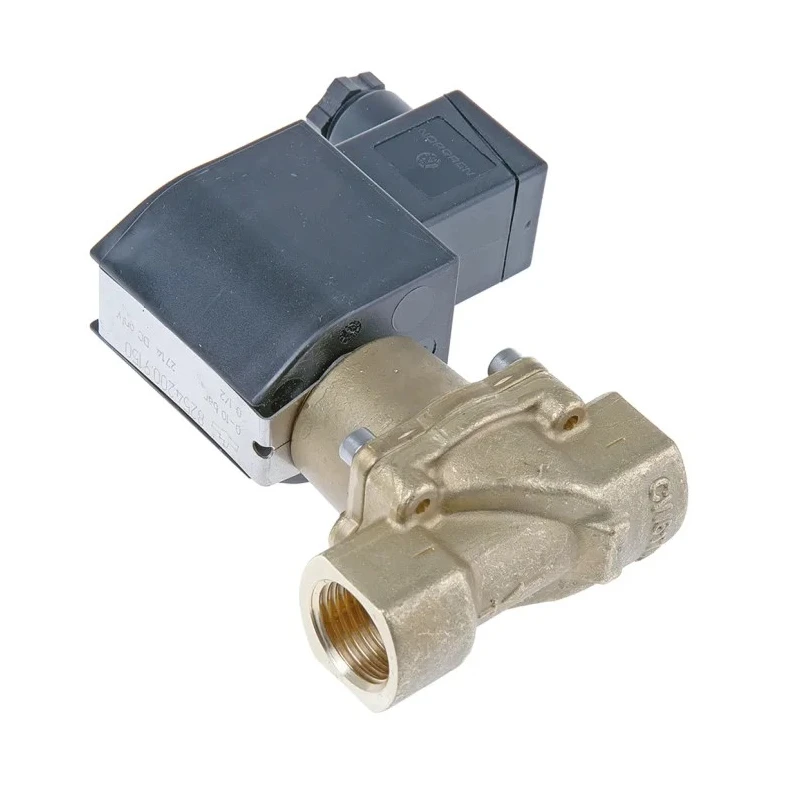

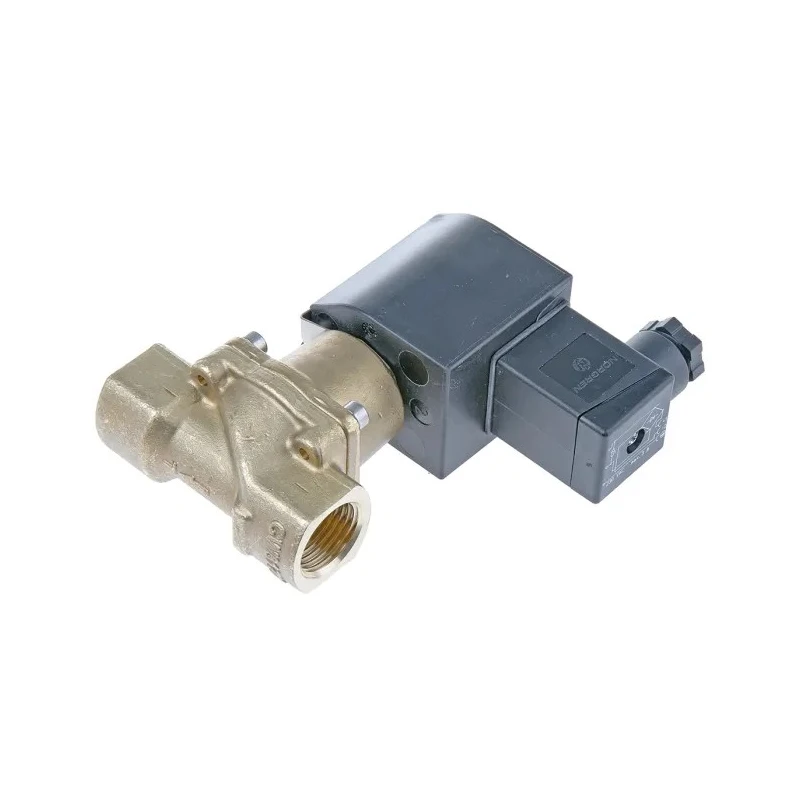

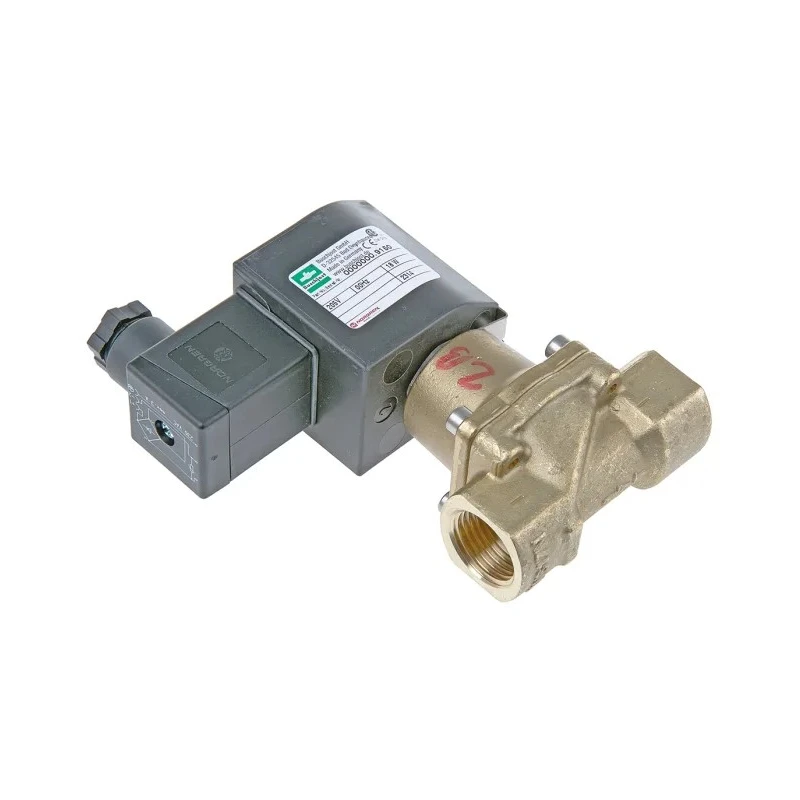

Buschjost Brass 2 Port Normally Closed Solenoid Valve G1/2, 230V AC, 12mm Orifice Diameter 8254200.9154.23049

Buschjost 8254200.9154.23049 is a high-quality brass 2-port solenoid valve with normally closed configuration and G1/2 threaded inlet and outlet ports. Operating at 230V AC, this solenoid valve is engineered for reliable flow control of neutral gaseous and liquid fluids including air, oil, and water. Its compact and robust design makes it ideal for industrial environments requiring precision and durability.

The valve operates efficiently under low or fluctuating pressure conditions, featuring a 12mm orifice diameter which corresponds to a flow factor Kv of 3.4 m³/hour. It supports a maximum operating pressure of 10 bar and can perform continuously within a temperature range of -10°C to +50°C, making it suitable for various applications.

This solenoid valve includes a servo assist mechanism for enhanced actuation and offers damped operation for smooth valve movements. The click-on solenoid design allows for quick and tool-free interchangeability, minimizing maintenance downtime. Its construction from strong brass material delivers long-lasting performance in harsh industrial settings.

Safety and compliance are ensured with an IP65 rating to EN 60529, along with adherence to EN 61000-6-1, DIN EN 175301-803, EN 61000-6-3, PED 97/23/EG, and DIN VDE 0580 standards. Additionally, the valve is certified for hazardous areas, meeting explosion protection categories II 3 GD EEx nA II T4 T 135 °C and II 2 GD EEx me II T3 T 140 °C, making it suitable for demanding environments.

Manufactured in Germany, the Buschjost model 8254200.9154.23049 delivers precision, reliability, and safety for applications in industrial automation, HVAC systems, water treatment, fluid power, and other heavy-duty uses. The valve’s high flow rate and versatility make it an essential component for efficient fluid management in complex systems.

This solenoid valve features a brass body ideal for robust industrial applications. It is designed for 2/2 way flow control with a normally closed valve mechanism. The valve has a 12mm orifice diameter providing a flow factor Kv of 3.4 m³/hour.

Suitable for air, oil, and water fluids in low or fluctuating pressure systems. Equipped with threaded G1/2 inlet and outlet ports for secure connections. Effective operating pressure up to 10 bar with temperature range from -10°C to +50°C.

Includes servo assist and offers damped operation for smooth performance. Solenoid is interchangeable via a click-on design without need for special tools. Certified to EN 60529 IP65 and conforms to multiple electrical and safety standards.

Designed for use in hazardous areas with certifications for explosion protection. Manufactured in Germany ensuring high-quality standards and durability. Explore the wide range of Buschjost Solenoid Valves at EnvMart for solutions catering to your fluid power and automation needs.
