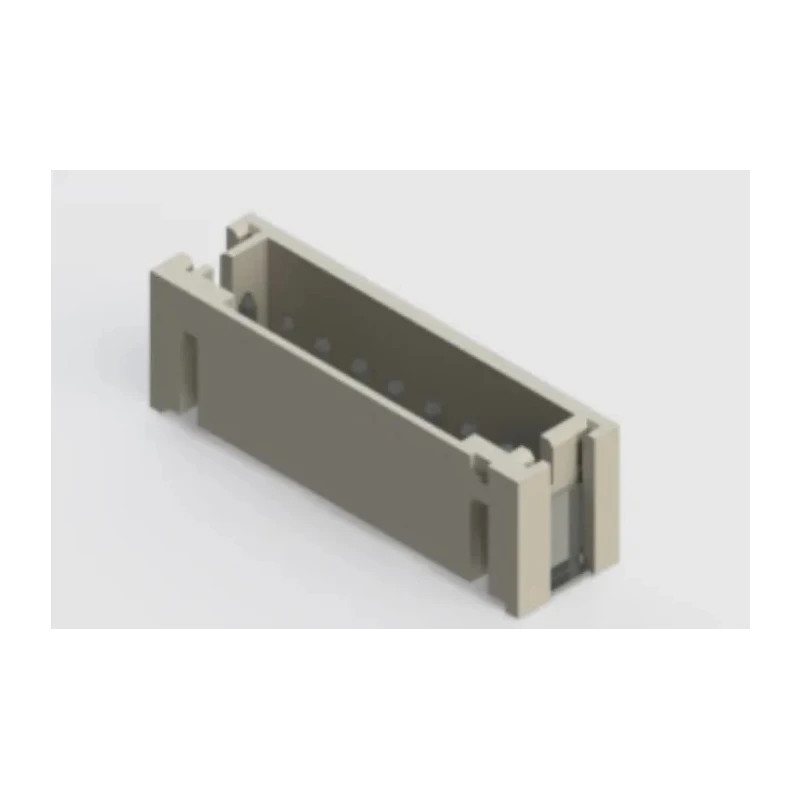

EDAC 140 Series Vertical Surface PCB Header 8 Contacts 2 mm Pitch 1 Row Shrouded 140-508-417-011

The EDAC 140-508-417-011 Vertical Surface PCB Header is a high-quality wire-to-board connector featuring 8 female contacts arranged in a single row with a 2 mm pitch. This shrouded PCB header is designed for secure, reliable high-density connection inside electronic assemblies, suitable for industrial and commercial PCB applications.

The housing is constructed from polyamide 9T, a robust insulating material rated UL94V-0 flame resistance, ensuring protection and durability. Brass contacts plated with tin offer excellent electrical performance and corrosion resistance, maintaining connectivity integrity over time.

This connector operates efficiently within a broad temperature range from -40°C up to 105°C, enabling its use in demanding industrial environments such as manufacturing, electronic assembly lines, communication equipment, and control systems. It is supplied as a surface mount type facilitating precise and stable soldered connections to the PCB.

The shrouded design minimizes accidental shorts and mechanical damage to pins, enhancing system reliability. Rated for 2A current and 100V voltage, it suits moderate power electronic applications where dependable connections are critical. The wire-to-board configuration with top entry allows convenient wiring and serviceability.

The product complies with RoHS standards, ensuring environmentally responsible materials and safe usage. Originating from China, this component meets stringent quality controls for professional electronic manufacturing environments.

High-density, 8-contact surface mount PCB header with 2 mm pitch. Durable polyamide 9T housing rated UL94V-0. Brass contacts with tin plating for reliable conductivity. Operating temperature range: -40°C to +105°C. Rated current: 2A and voltage: 100V.

Shrouded design reduces short circuit risks. Solder termination for secure PCB mounting. RoHS compliant for environmental safety. Ideal for industrial, manufacturing, communications, and control systems. Manufactured under strict quality standards in China.
