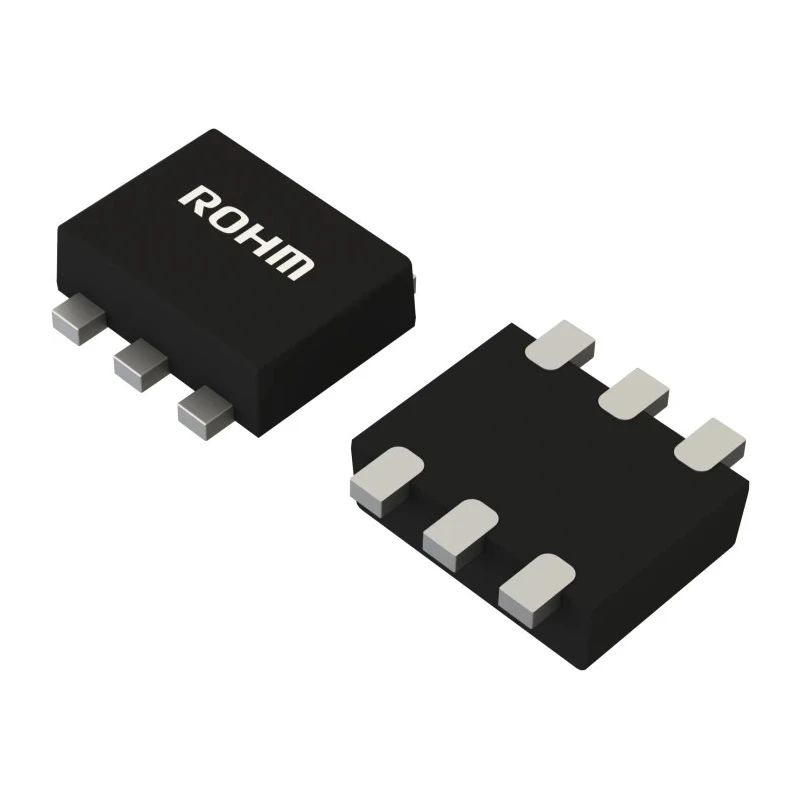

ROHM Digital Transistor 50 V Surface Mount SOT-563 6-Pin EMD38T2R

ROHM EMD38T2R digital transistor is a surface mount bipolar transistor with dual NPN and PNP elements packaged in a compact SOT-563 6-pin form factor. Designed for applications requiring up to 50 volts collector emitter voltage, it offers dependable performance in space-constrained electronic circuits.

The transistor supports a maximum power dissipation of 0.15 watts and a minimum DC current gain (hFE) of 30, providing efficient amplification capabilities. Its small dimensions of 2.2 mm length, 2.1 mm width, and 1 mm height allow integration into dense PCB layouts common in consumer, automotive, and industrial electronic devices.

This product is mounted using surface-mount technology compatible with reflow soldering and automated assembly processes, helping reduce manufacturing costs and improve production efficiency. The EMD38T2R series benefits from independent transistor elements, which minimize the need for additional interfacing components and save PCB space.

With an operating storage temperature range from -55°C to 150°C, the transistor demonstrates robustness and reliability suitable for industrial and commercial environments. It is equivalent to popular devices such as DTA113Z and DTC114Y, offering flexibility in component sourcing.

Dual NPN/PNP elements for versatile circuit designs. Compact SOT-563 6-pin surface mount package. Maximum collector emitter voltage of 50 V. Power dissipation rating of 0.15 W for low power applications. Minimum DC current gain of 30 for consistent amplification.

Temperature range from -55°C to 150°C for demanding environments. Independent elements reduce interface and mounting costs. Compatible with automated PCB assembly techniques.

This ROHM digital transistor is widely used in electronic components, power and connectors, and discrete semiconductor applications across industrial automation, consumer electronics, and communication equipment domains. The device enhances efficiency and reliability in signal switching and amplification tasks within compact and cost-sensitive designs. Explore the variety of Discrete Semiconductor solutions and other bipolar transistors available at EnvMart to meet your electronic project specifications.
