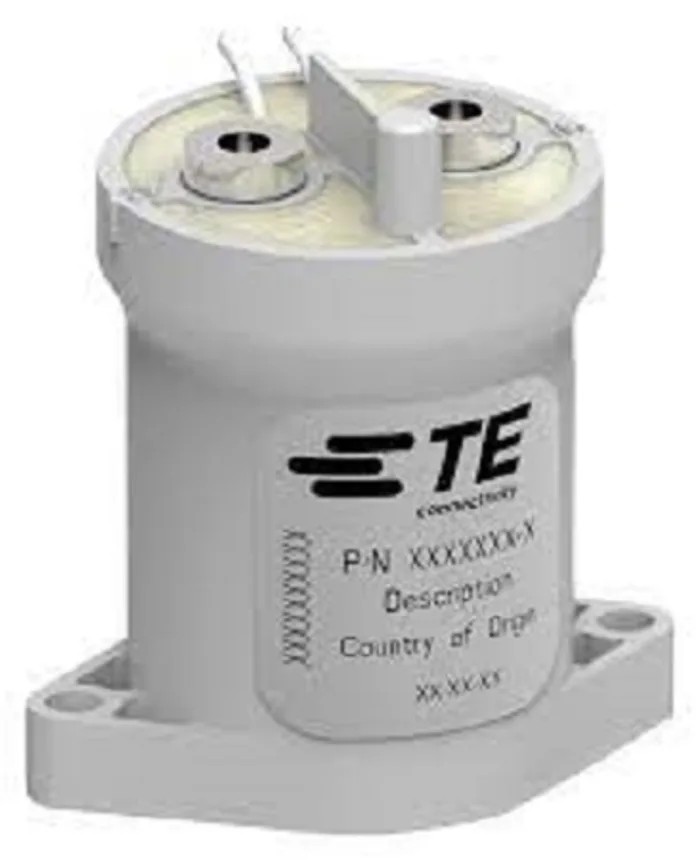

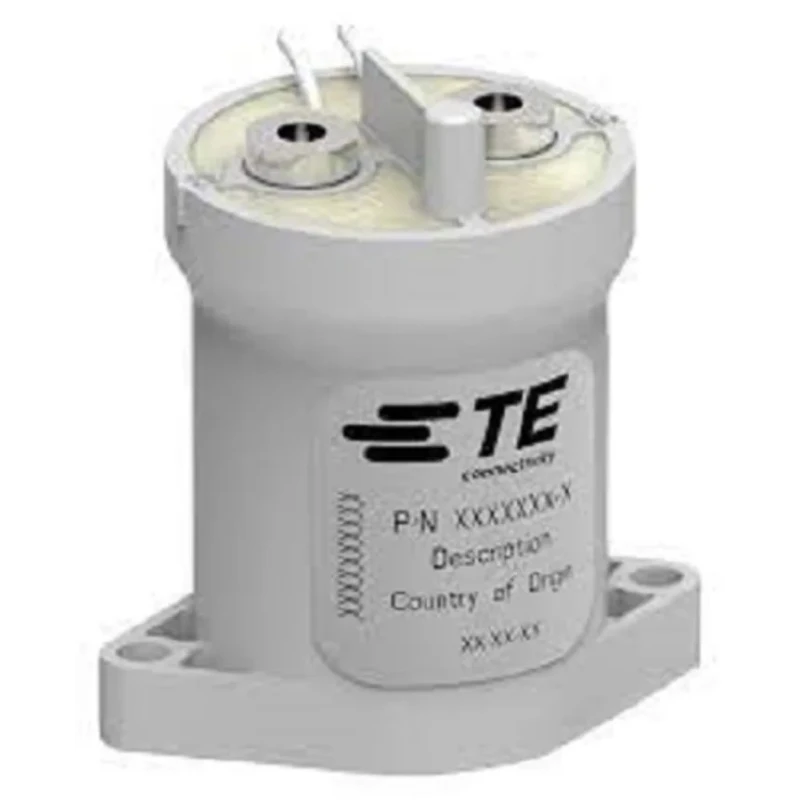

TE Connectivity Automotive Relay 12V DC Coil Voltage 20A Switching Current SPST 2203194-1
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Height | 24.9mm |
| Length | 25.9mm |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Plug-In |
| Coil Resistance | 15.3Ω |
| Coil Power | 1.4W |
Key Features
- The relay coil power is 1.4 watts ensuring efficient operation.
- Coil resistance is 15.3 ohms for stable performance.
- Constructed with silver alloy contact material for durability.
- Operates reliably within a temperature range from -40°C to 125°C.
- Compact design with a height of 24.9 mm and length of 25.9 mm for easy installation.
- Equipped with plug-in terminal type for convenient connection.
- Designed mainly for automotive and DC high current applications.
- Series number 2203194-1 confirms precise model identity.
Product Description
TE Connectivity 2203194-1 Automotive Relay is a high-quality component designed for automotive electrical applications requiring reliable switching of DC current. The relay operates with a 12V DC coil voltage and supports switching currents up to 20A, featuring a Single Pole Single Throw (SPST) contact configuration.
Its coil power rating of 1.4W and resistance of 15.3 ohms contribute to effective coil management and energy efficiency. The relay contacts are made from silver alloy, ensuring long-lasting conductivity and mechanical durability under heavy-duty conditions.
The unit is hermetically sealed and UL approved, offering robust protection against environmental factors. It is designed to operate under extreme conditions, with a minimum operating temperature of -40°C and a maximum of 125°C, making it suitable for harsh automotive environments.
The compact form factor of the relay, measuring 24.9 mm in height and 25.9 mm in length, facilitates easy mounting and integration into various vehicle systems. The plug-in terminal type simplifies installation and maintenance.
This relay is ideal for DC high voltage and high current applications including use as a main contactor in hybrid and electric vehicles, onboard chargers, auxiliary loads, and precharge systems.
The relay coil power is 1.4 watts ensuring efficient operation. Coil resistance is 15.3 ohms for stable performance. Constructed with silver alloy contact material for durability. Operates reliably within a temperature range from -40°C to 125°C.
Compact design with a height of 24.9 mm and length of 25.9 mm for easy installation. Equipped with plug-in terminal type for convenient connection. Designed mainly for automotive and DC high current applications. Series number 2203194-1 confirms precise model identity.
Industry sectors benefiting from this automotive relay include automotive manufacturing, electric vehicle production, industrial automation, and other commercial electrical systems requiring reliable DC current switching.
Explore the full range of Automotive Relays and other TE Connectivity components on EnvMart for high performance and durable electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This automotive relay operates at a coil voltage of 12V DC.
It supports a maximum switching current of 20A.
The relay features a Single Pole Single Throw (SPST) contact configuration.
The coil power rating is 1.4 watts, ensuring efficient operation.
The coil resistance is 15.3 ohms, contributing to stable performance.
This model operates reliably within a temperature range of -40°C to 125°C.
The contacts are constructed with silver alloy, ensuring durability and conductivity.
It is equipped with a plug-in terminal type for convenient connection.
The relay has a height of 24.9 mm and a length of 25.9 mm, allowing for easy installation.
It is designed mainly for automotive and DC high current applications, including electric vehicles and onboard chargers.
The relay is manufactured in the United States.
Yes, it is UL approved and hermetically sealed, providing robust protection against environmental factors.
