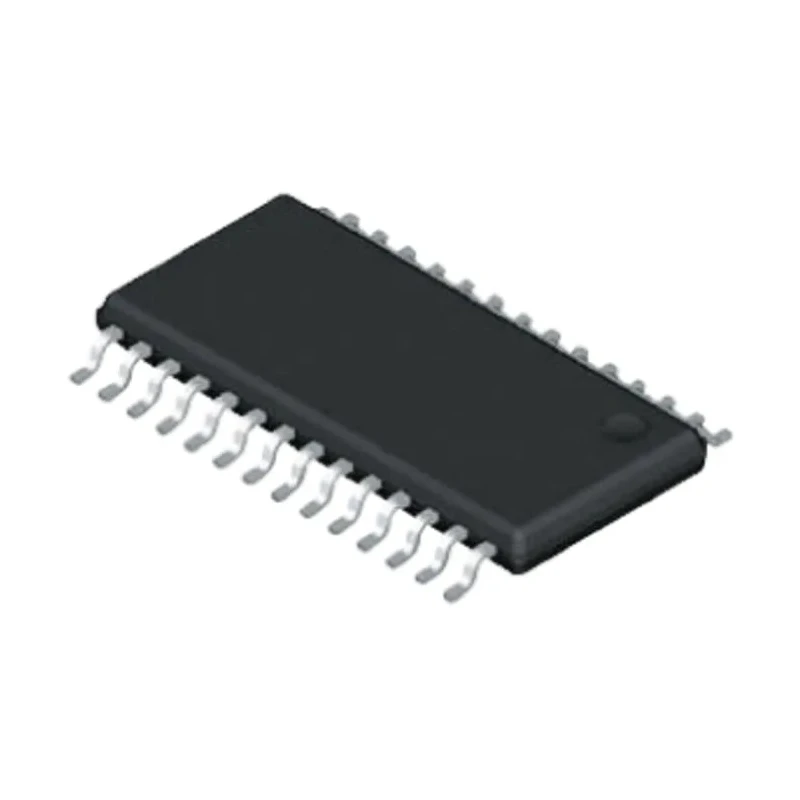

Renesas Electronics Buffer 28-Pin TSSOP, Surface Mount, 3.13-3.46V, 105 MHz Input Frequency, PCIe Gen1 and Gen2 9DB106BGLFT

Renesas Electronics 9DB106BGLFT Buffer 28-Pin TSSOP is a high-performance surface mount clock buffer IC tailored for PCIe Gen1 and Gen2 clocking requirements. It operates over a supply voltage range of 3.13 to 3.46 volts, offering a maximum input frequency of 105 MHz and a propagation delay time as low as 150 picoseconds.

This buffer includes a selectable phase-locked loop (PLL) bandwidth that effectively minimizes jitter peaking downstream, enhancing signal integrity in demanding electronic applications. Its design also supports spread spectrum compatibility to reduce electromagnetic interference, which is critical for maintaining system stability.

The device features an SMBus interface allowing dynamic control over PLL bandwidth and output enable/disable functions, providing flexibility in complex system designs. It also incorporates two clock request pins to support ExpressCard implementations.

The 9DB106BGLFT is packaged in a compact 28-pin Thin Shrink Small Outline Package (TSSOP), with a height of 1 mm and length of 9.7 mm, making it suitable for space-constrained electronic boards. Operating temperature ranges from 0°C to 70°C, ensuring reliable performance under typical commercial conditions.

This buffer is ideal for industrial, computing, telecommunications, and embedded system applications where precise clocking and signal integrity are paramount. It enables engineers to maintain stringent timing specifications while mitigating EMI and jitter effects.

Operates at supply voltages between 3.13 V and 3.46 V. Maximum input frequency is 105 MHz for high-speed clock buffering. Propagation delay time of 150 ps for low-latency signal transmission. Selectable PLL bandwidth reduces jitter and optimizes signal performance.

Spread spectrum compatible to minimize electromagnetic interference. SMBus interface facilitates PLL bandwidth control and output disabling. Includes two clock request pins suitable for ExpressCard use cases. Compact 28-pin TSSOP package with 1 mm height and 9.7 mm length dimensions.

Certified PCIe Gen1 and Gen2 compliant for compatibility with industry standards. Operating temperature range: 0 °C to 70 °C for commercial environments. Explore more semiconductor components and Clock Buffers at EnvMart for your industrial and commercial electronics projects.
