| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 0.8mm |
| Length | 5mm |
| Model | 8P34S1208NBGI |
| Mount Type | Surface |
| Series | 8P |
| Maximum Operating Temperature | 85°C |
| Package Type | VFQFPN |
| Minimum Operating Temperature | -40°C |
| Maximum input frequency | 1.2GHz |
| Pin Count | 28 |
| Maximum Supply Voltage | 1.89V |
| Minimum Supply Voltage | 1.71V |
| Maximum Propagation Delay Time | 250ps |

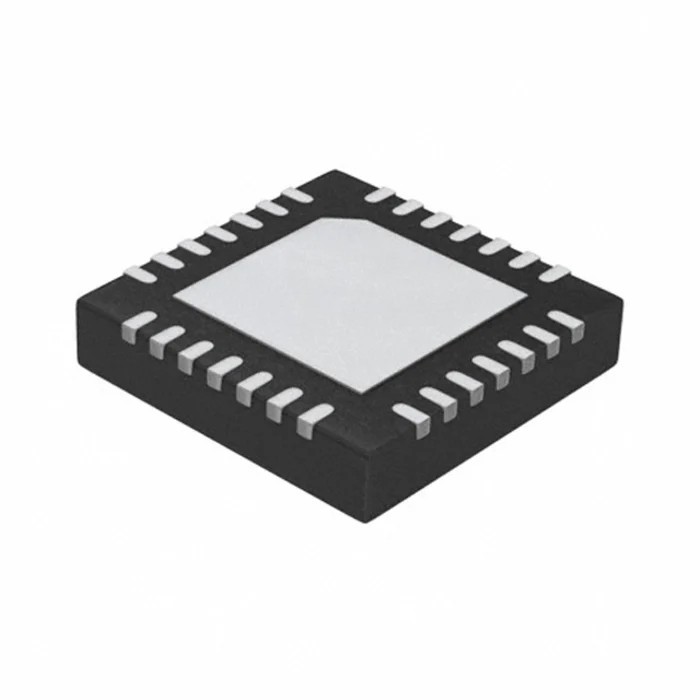

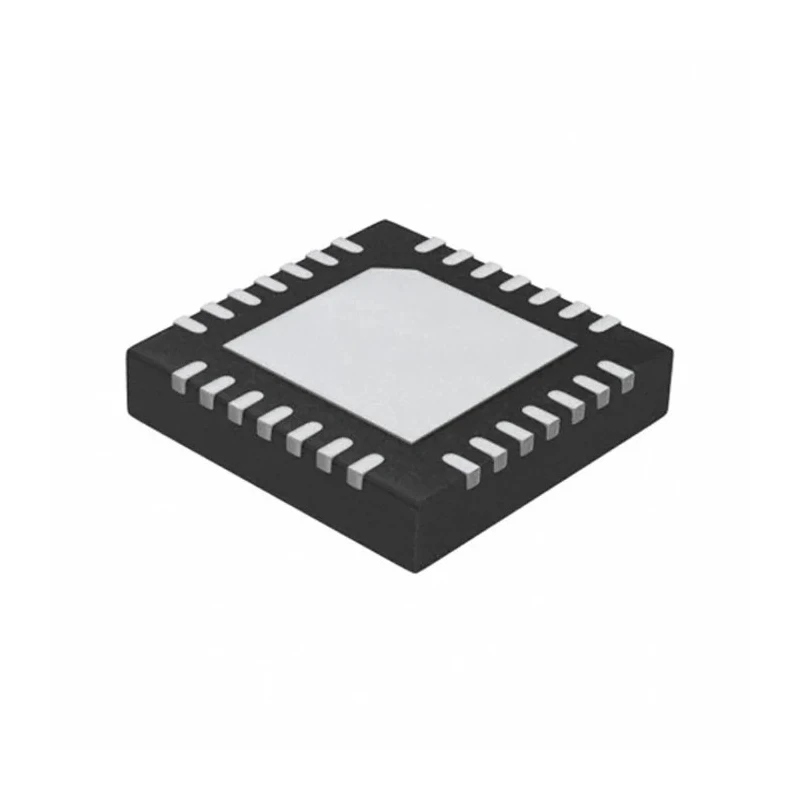

Renesas Electronics 8P34S1208NBGI Clock Buffer 28-Pin VFQFPN is designed for high-precision clock distribution in electronic systems, operating optimally within a supply voltage range of 1.71V to 1.89V. It supports a maximum input frequency of 1.2GHz and offers a low propagation delay time of 250ps, making it suitable for applications that require fast and reliable timing signals.
This surface-mounted device features a compact 28-pin VFQFPN package, measuring 5mm in length and 0.8mm in height, facilitating integration into dense PCB layouts common in industrial and commercial electronics designs. The device is rated to operate over a wide temperature range from -40°C to 85°C, ensuring robust performance under various environmental conditions.
Equipped with two selectable differential clock input pairs, the 8P34S1208NBGI accepts differential input levels such as LVDS and CML. The integrated bias voltage reference allows simple interfacing of single-ended signals to device inputs, enhancing design flexibility and reducing external component count. Low power consumption and minimal additive phase noise optimize energy efficiency and signal integrity.
Its guaranteed output-to-output and part-to-part skew characteristics make this clock buffer ideal for demanding clock distribution applications where repeatability and signal quality are critical, including telecommunications, computing, and industrial automation systems.
Operates within 1.71V to 1.89V supply voltage. 28-Pin VFQFPN package for surface mounting. Maximum input frequency of 1.2GHz. Propagation delay time of 250 picoseconds. Selectable differential clock inputs supporting LVDS and CML levels.
Wide operating temperature range from -40°C to 85°C. Low power consumption and low additive phase noise. Integrated bias voltage reference for single-ended signal compatibility. Compact dimensions of 5mm length and 0.8mm height.
Suitable for industrial, telecommunications, computing, and commercial electronic applications requiring precise timing and clock distribution solutions. Explore more clock buffer solutions with Renesas Electronics and related semiconductor components at EnvMart.
