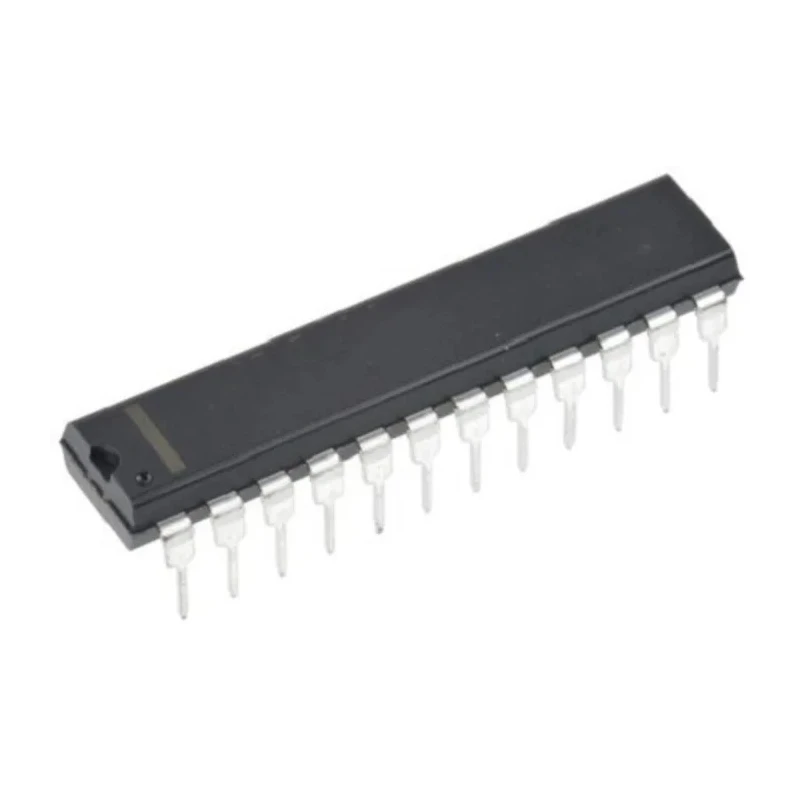

Renesas Electronics Programmable Timer 6 Internal Timers, 24-Pin PDIP, 2-18V Supply, 0°C to 70°C CP82C54-10Z

Renesas Electronics CP82C54-10Z is a high performance CMOS programmable interval timer that utilizes an advanced 2-micron CMOS process to deliver optimized power consumption and enhanced functionality. This device is packaged in a 24-pin PDIP format and is intended for through-hole mounting applications.

Featuring six programmable timer modes, the CP82C54-10Z can function as an event counter, elapsed time indicator, programmable one-shot timer, and more. It supports three independent 16-bit counters providing precise timing capabilities in various industrial and laboratory control setups.

The timer operates with a minimum supply voltage of 2V and a maximum supply voltage of 18V, ensuring flexible system integration. Its operating temperature range of 0°C to 70°C allows reliable performance in commercial and industrial environments.

This device complies with RoHS standards, ensuring it meets environmental regulations. The CP82C54-10Z is also fully TTL compatible and supports both binary and BCD counting, making it suitable for diverse timer and counter applications in electronics design and manufacturing.

It is compatible with NMOS 8254 and offers enhancements over the NMOS 8253, broadening its applicability in legacy and modern systems requiring programmable timing solutions.

Overall, the Renesas Electronics CP82C54-10Z timer is ideal for industrial, laboratory, and manufacturing electronics, providing flexible timing functions in a compact 24-pin PDIP package.

Operates with supply voltage from 2V to 18V. Six programmable timer modes with three 16-bit counters. Fully TTL compatible, supporting binary or BCD counting. Compliant with RoHS environmental standards. Operating temperature range of 0°C to 70°C.
