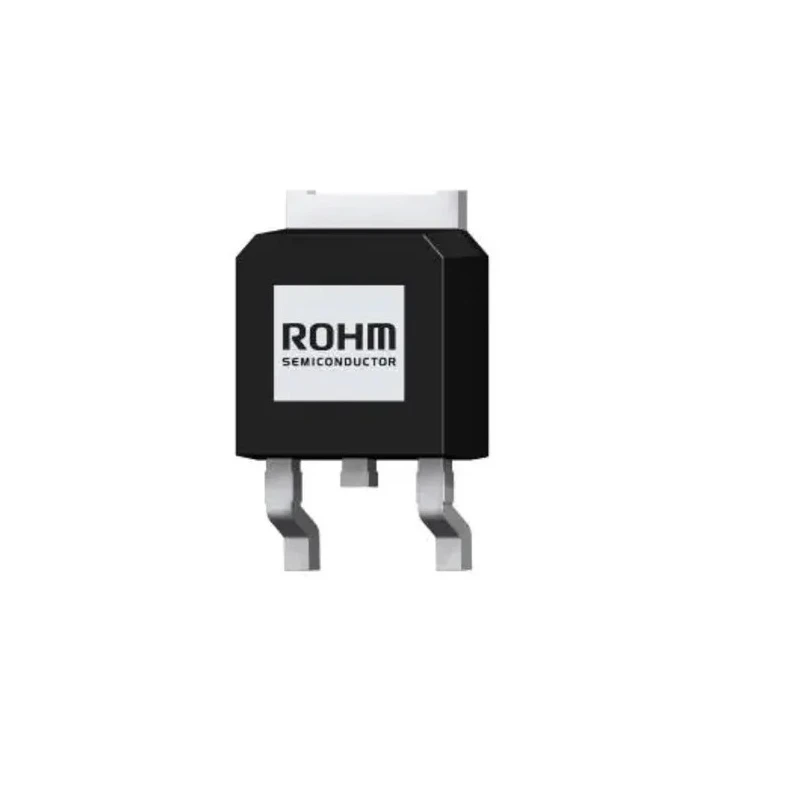

ROHM 100 V 20 A Surface Mount Rectifier & Schottky Diode TO-252 Package RBQ20BM100ATL

ROHM RBQ20BM100ATL is a high reliability surface mount rectifier and Schottky diode designed for power and switching supply applications. It features a peak reverse repetitive voltage rating of 100 V and can handle a continuous forward current of 20 A.

The device utilizes a Schottky barrier diode structure with a low forward voltage of 0.77 V, enhancing efficiency by reducing power loss. It comes in a TO-252 package with a 3-pin DPAK mount type and a dual common cathode diode configuration.

The diode supports operation temperatures up to 150°C, ensuring dependable performance in demanding industrial environments. Its compact size, measuring 6.8 mm in length, 6.4 mm in width, and 10.4 mm in height, aids in space-constrained PCB designs.

High reliability Schottky barrier diode optimized for switching power supplies. Low forward voltage drop minimizes power dissipation. Surface mount TO-252 package facilitates automated assembly. Dual common cathode design suitable for rectifier applications.

High-current rating with 20 A continuous forward current. Wide operating temperature range up to 150°C. Compact footprint for efficient PCB layout. Not certified to automotive standards.

This rectifier and Schottky diode are widely used in industrial, manufacturing, power supply, and electronic component applications. The device is a reliable choice for efficient power conversion and protection circuits.
