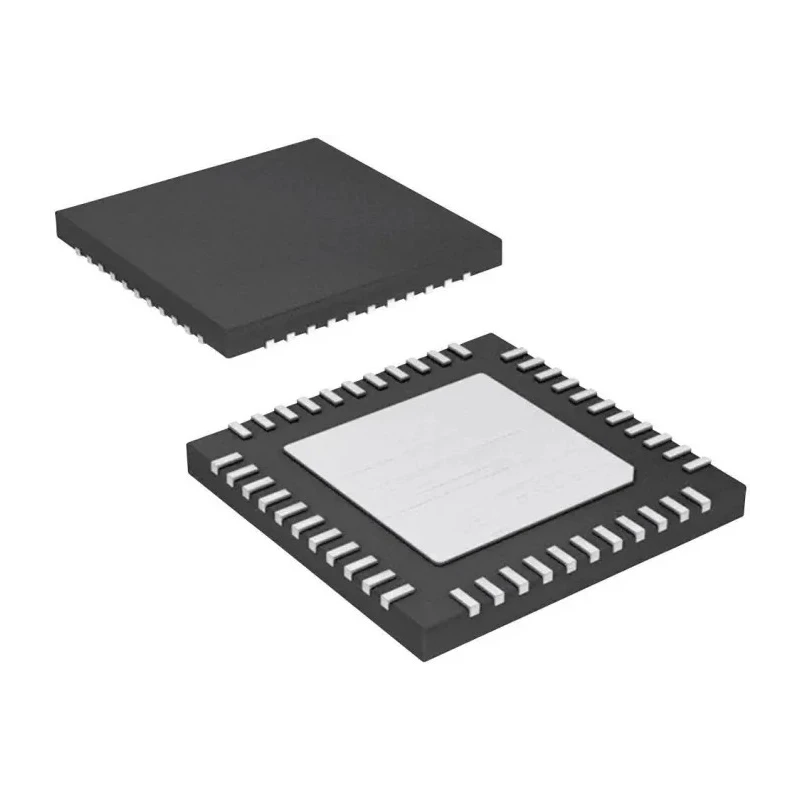

Renesas Electronics USB Controller 1-Channel 12 Mbps 3.3V-3.6V 68-Pin QFN UPD720201K8-701-BAC-A

Free Delivery in India | Lowest Global Shipping Charges

Renesas Electronics USB Controller 1-Channel 12 Mbps 3.3V-3.6V 68-Pin QFN UPD720201K8-701-BAC-A

Name: Renesas Electronics USB Controller 1-Channel 12 Mbps 3.3V-3.6V 68-Pin QFN UPD720201K8-701-BAC-A
Brand: Renesas Electronics
SKU: 173302
Price: 8.49 USD
Availability: InStock



Category USB Interface IC Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Brand	Renesas Electronics
Height	850μm
Length	8mm
Model	UPD720201K8-701-BAC-A
Mount Type	Surface
Series	UPD720201
Maximum Operating Temperature	85°C
Package Type	QFN
Sub Type	USB Host Controller IC
Minimum Operating Temperature	0°C
Interfaces	USB debugging capability on all super speed ports
Pin Count	68
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	3.3V
Maximum Data Rate	12Mbps
Number of Transceivers	1
USB Specification	USB 3.0
Supported Protocols	USB 3.0

Key Features

Supports USB 3.0 specification including xHCI 1.0 compliance.
Integrates 1-channel transceiver capable of 12 Mbps data rate.
Compact 68-pin QFN surface mount package with 8mm length and 850μm height.
Operates efficiently within a temperature range of 0°C to 85°C.
Designed for low power consumption with dual power supply voltages.
Compatible with USB debugging on all super speed ports.
Supports USB legacy function and PCI Express base specification revision 2.0.
Compliant with ExpressCard TM standards for expansion slots.

Product Description

Renesas Electronics UPD720201K8-701-BAC-A USB Controller is a specialized USB host controller LSI compatible with USB 3.0 and xHCI 1.0 standards. It offers a single-channel 12 Mbps data rate, enabling efficient communication in compact devices. The device supports dual power supply operation from 3.3V minimum up to 3.6V maximum, ensuring efficient power usage suitable for portable electronics.

The controller comes in a compact 68-pin QFN surface-mount package, measuring 8mm in length and a height of 850μm, allowing for minimal PCB space utilization. It operates reliably within an industrial temperature range of 0°C to 85°C, making it suitable for various environmental conditions.

Designed to reduce power consumption, this IC supports USB debugging capabilities on all super speed ports and offers USB legacy functionality. Compliance with PCI Express base specification revision 2.0 and ExpressCard TM standards makes it versatile for expanding connectivity options in modern computing platforms.

This USB host controller is ideal for designers integrating USB 3.0 interfaces into mobile computing devices such as laptops and notebook computers, where compact size and power efficiency are crucial.

Supports USB 3.0 and xHCI 1.0 specifications with 1 channel at 12 Mbps. Dual power supply with operating voltages from 3.3V to 3.6V. Surface mount QFN package with 68 pins, 8mm length, and 850μm height. Operational temperature range from 0°C to 85°C.

Enables USB debugging on all super speed ports and legacy USB functions. Meets PCI Express base specification revision 2.0 and ExpressCard TM standards. Reduces power consumption and provides compact footprint for mobile devices.

This product is suitable for industrial, electronic manufacturing, computing hardware design, and development applications that require high-speed USB connectivity in a compact form factor.
