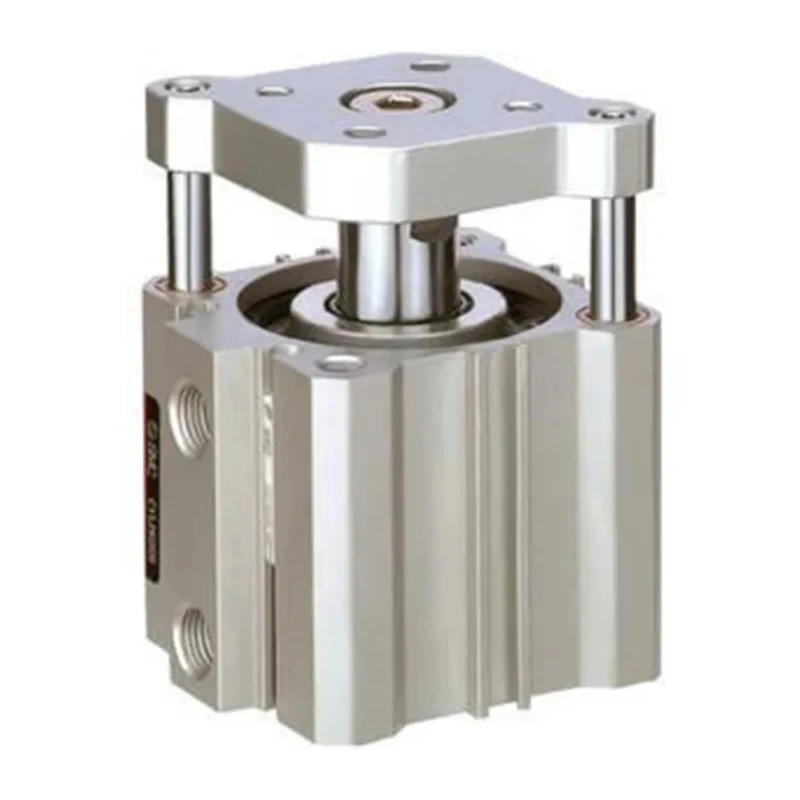

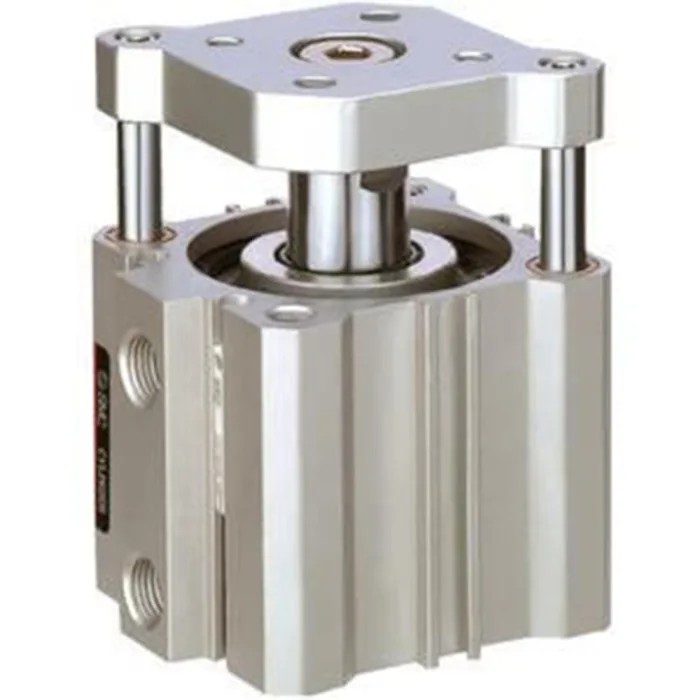

SMC Pneumatic Compact Cylinder 80mm Bore, 20 mm Stroke, Double Acting, Aluminium Alloy Body CDQMB80TF-20

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Compact Cylinder 80mm Bore, 20 mm Stroke, Double Acting, Aluminium Alloy Body CDQMB80TF-20



Category Pneumatic Cylinder Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	1 Mpa
Length	89.5mm
Model	CDQMB80TF-20
Gross Weight	1.82kg
Mount Type	Through Hole
Series	CDQM
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-10°C
Stroke Length	20mm
Bore Diameter	80mm
Rod Type	Single
Action Type	Double Acting
Cushioning Type	Rubber Bumper
Piston Rod Thread Standard	Metric
Piston Rod Thread Size	M20 x 1.5

Key Features

Double acting action type for versatile pneumatic applications.
Through hole mount type ensures secure and stable installation.
Rubber bumper cushioning type protects cylinder at stroke ends.
Maximum operating pressure of 1 Mpa for robust performance.
Lightweight aluminium alloy construction weighing 1.82kg.
Single rod type with M20 x 1.5 metric piston rod thread size.
Operating temperature range from -10°C to 60°C.
Compact length of 89.5mm with 20mm stroke length.

Product Description

The SMC CDQMB80TF-20 Pneumatic Compact Cylinder offers reliable pneumatic actuation with an 80mm bore and 20mm stroke length. This double acting cylinder features an aluminium alloy body and rubber bumper cushioning for durability and smooth operation.

Its through hole mount type allows for flexible and secure installation within various industrial automation or manufacturing systems. The pneumatic cylinder is designed for a maximum operating pressure of 1 Mpa and maximum piston speed of up to 500mm/s, making it suitable for demanding motion control tasks.

With a compact length of 89.5mm, this cylinder maintains an overall lightweight design at 1.82kg, easing integration without compromising robustness. The single rod type with an M20 x 1.5 metric thread provides straightforward connection options.

Operating temperature ranges from -10°C to 60°C enable it to perform reliably in diverse environmental conditions. Optimal for use in industrial automation, fluid power systems, laboratory equipment, and other pneumatic push-pull operations.

Double acting action type for effective push/pull motion control. Through hole mount type provides installation flexibility. Rubber bumper cushioning reduces impact and noise. Aluminium alloy body combines strength with lightweight benefits.

Maximum operating pressure of 1 Mpa supports high performance. Single rod type with metric M20 x 1.5 threading facilitates mounting accessories. Operating temperature from -10°C to 60°C for use in various environments. Compact 89.5mm length and 20mm stroke for tight spaces.

Quality engineered in Japan assuring reliability and precision.

This pneumatic cylinder adheres to versatile industrial standards and is made to optimize pneumatic actuation tasks. It is ideal for fluid power control in laboratories, manufacturing lines, HVAC machinery, and automated assembly equipment.

Explore our extensive range of Pneumatic Cylinders and actuators from trusted brands including SMC to find suitable components for your automation needs. EnvMart provides reliable pneumatic system components engineered for durability and efficiency.
