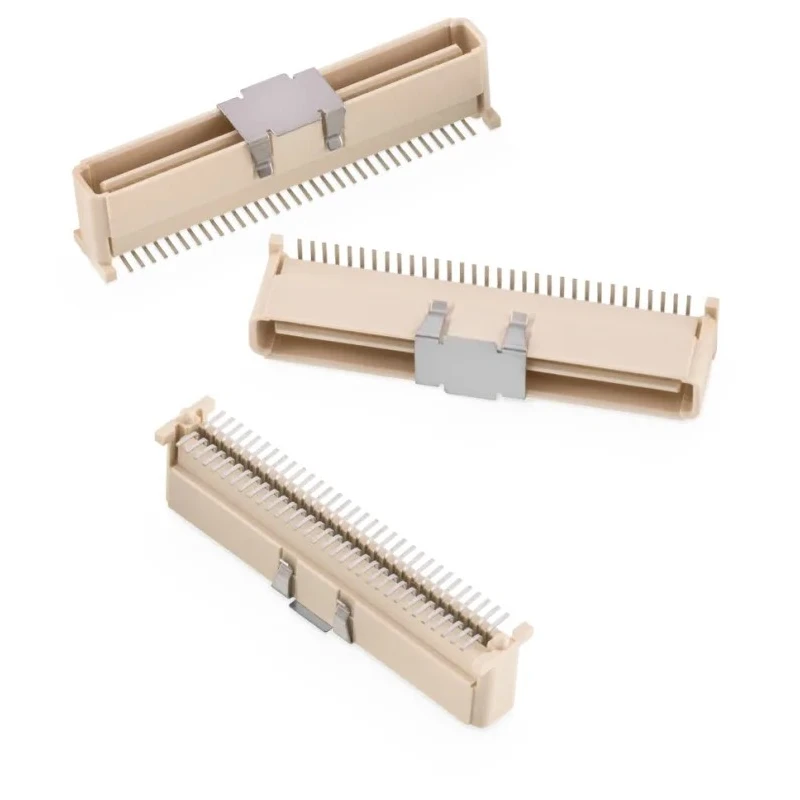

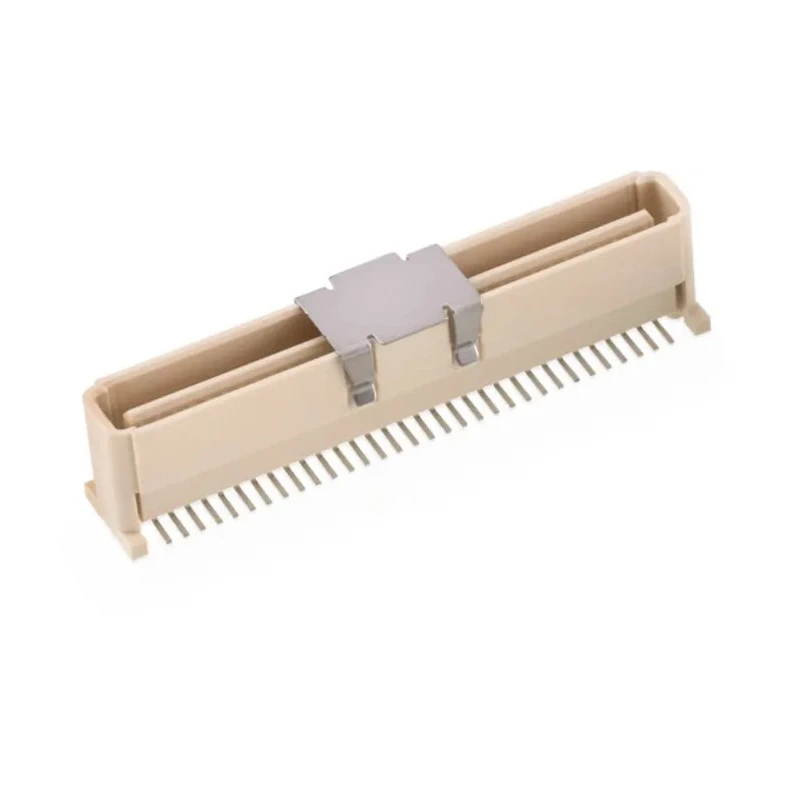

Wurth Elektronik WR-BTB Series Vertical Surface PCB Header, 64 Contacts, 1 mm Pitch, 1 Row, Shrouded 658158303064
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | Wurth Elektronik |
| Orientation | Vertical |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Brass |
| Series | WR-BTB |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold |
| Number of Contacts | 64 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
| Withstanding Voltage | 250 V (AC) |
| Insulator Material | LCP |
Key Features
- Features 64 gold-plated brass contacts ensuring optimal conductivity.
- Uses liquid crystal polymer housing for enhanced durability.
- Supports a current rating of 1A for standard electrical applications.
- Operates reliably within a temperature range from -55°C to +85°C.
- Single-row vertical orientation fits compact PCB layouts.
- Shrouded design provides enhanced contact protection.
- Surface mount technology facilitates easy PCB assembly.
- Accepts solder termination for secure connections.
Product Description
Wurth Elektronik 658158303064 is a WR-BTB Series Vertical Surface PCB Header, designed with 64 gold-plated brass contacts at a 1 mm pitch across one row. This shrouded male connector enables robust board-to-board interfacing, ideal for electronics and electrical component applications.
The header features liquid crystal polymer housing offering excellent mechanical and thermal stability. Its single row vertical orientation saves PCB space, suitable for dense electronic assemblies.
Supporting a current capacity of 1 ampere and voltage rating of 100 volts, it withstands up to 250 V AC, ensuring safety and performance in electrical circuits. The device operates within a temperature range of -55°C to +85°C, maintaining reliable function in varied environmental conditions.
Surface mount technology and solder termination type enable efficient assembly and strong mechanical bond on PCBs, enhancing manufacturing workflows in industrial, laboratory, and manufacturing environments.
Features 64 gold-plated brass contacts ensuring optimal conductivity. Uses liquid crystal polymer housing for enhanced durability. Supports a current rating of 1A for standard electrical applications. Operates reliably within a temperature range from -55°C to +85°C.
Single-row vertical orientation fits compact PCB layouts. Shrouded design provides enhanced contact protection. Surface mount technology facilitates easy PCB assembly. Accepts solder termination for secure connections. Rated voltage is 100V withstanding up to 250V AC.
Manufactured in China adhering to high-quality standards.
This PCB Header is widely used in electronics components manufacturing, power and connectors assemblies, electronic testing equipment, and other industrial and commercial electrical applications. Its high reliability and precision manufacturing make it a trusted choice in electronic designs.
Explore the extensive range of Wurth Elektronik connectors and components on EnvMart for comprehensive board-to-board connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1 ampere for standard electrical applications.
It has a maximum voltage rating of 100 volts and can withstand up to 250 volts AC.
The contacts are made of brass with gold plating, and the housing is constructed from liquid crystal polymer (LCP).
It operates reliably within a temperature range of -55°C to +85°C.
This unit features 64 contacts arranged in a single row.
It accepts solder termination for secure connections on PCBs.
The contacts are spaced at a pitch of 1 mm.
This model is designed for surface mounting on PCBs.
It features a vertical orientation, which is suitable for compact PCB layouts.
This connector is shrouded, providing enhanced contact protection.
It is manufactured in China, adhering to high-quality standards.
It is widely used in electronics components manufacturing, power and connectors assemblies, and electronic testing equipment.
