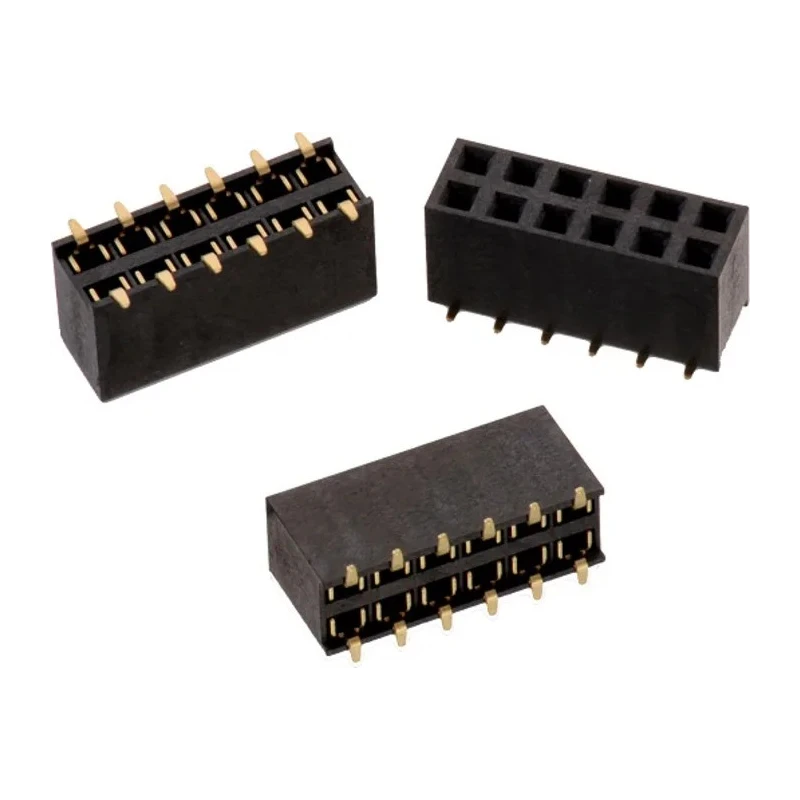

Wurth Elektronik WR-PHD Series Straight Surface Mount PCB Socket, 22-Contact, 2 Row, 2.54 mm Pitch, 3A Current 61002221821
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Surface |
| Housing Material | Polyamide 9T |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Durability | 25mating cycles |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | UL94-V0, CECC 75 301-802, RoHS |
| Contact Plating | Gold |
| Number of Contacts | 22 |
| Contact Gender | Female |
Key Features
- Constructed with durable Polyamide 9T housing rated UL94 V-0 for flammability.
- Supports a current rating of 3A and voltage of 250V for reliable performance.
- Gold plated copper alloy female contacts ensure excellent conductivity and durability.
- Designed for surface mounting with a straight orientation and dual row configuration.
- Operates within a temperature range of -40°C to +105°C, suitable for harsh environments.
- Compliance with RoHS and standards UL94-V0, CECC 75 301-802 for safety and quality assurance.
- Durable for up to 25 mating cycles, ensuring long service life in industrial applications.
Product Description
Wurth Elektronik 61002221821 WR-PHD Series Straight Surface Mount PCB Socket features 22 female contacts arranged in 2 rows with a precise 2.54 mm pitch, engineered for surface mount technology applications.
Constructed using Polyamide 9T, the housing material offers excellent electrical insulation with UL94 V-0 flammability rating, suitable for industrial and commercial electronics. The socket supports a maximum current of 3A and voltage rating of 250V, meeting demanding performance criteria.
Contacts are manufactured from copper alloy and plated with gold for superior electrical conductivity and corrosion resistance, enhancing long-term reliability. This socket is designed with a straight orientation for easy PCB mounting.
Operating temperature range from -40°C to 105°C ensures resilience in diverse environmental conditions, fitting applications in industrial control systems, instrumentation, and other electronic assemblies.
The product complies with RoHS regulations and standards including UL94-V0 and CECC 75 301-802, assuring quality and environmental safety. It also supports 25 mating cycles durability, ensuring the socket withstands repeated use during testing and maintenance.
Durable Polyamide 9T housing material with UL94 V-0 rating. Gold plated copper alloy female contacts for optimal conductivity. Supports 3A current and 250V voltage for robust performance. Surface mount straight dual-row design with 2.54 mm pitch spacing.
Wide operating temperature range of -40°C to +105°C. Compliant with RoHS, UL94-V0, and CECC 75 standards. Reliable for up to 25 mating cycles ensuring longevity. This PCB socket is ideal for electronics manufacturing, industrial equipment, instrumentation, and communication devices where reliable board connector solutions are essential.
Explore additional Wurth Elektronik products and PCB Sockets at EnvMart for advanced electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a maximum current of 3A and a voltage rating of 250V, ensuring reliable performance in various applications.
The contacts are arranged in a dual-row configuration with a pitch of 2.54 mm, featuring a total of 22 female contacts.
The housing is constructed from Polyamide 9T, which provides excellent electrical insulation and is rated UL94 V-0 for flammability.
It operates within a temperature range of -40°C to +105°C, making it suitable for harsh environmental conditions.
This model is designed for durability, supporting up to 25 mating cycles, ensuring longevity during repeated use.
Yes, it complies with RoHS regulations and standards including UL94-V0 and CECC 75 301-802 for safety and quality assurance.
It features a surface mount termination type, designed for easy mounting on PCBs.
The contacts are made from copper alloy and are gold plated, which enhances electrical conductivity and corrosion resistance.
This socket is designed with a straight orientation for straightforward PCB mounting.
The country of origin for this PCB socket is Taiwan.
This model is suitable for use in industrial control systems, instrumentation, and other electronic assemblies where reliable board connector solutions are necessary.
The socket features female contacts, which are designed to connect with male connectors, ensuring compatibility in various electronic applications.
