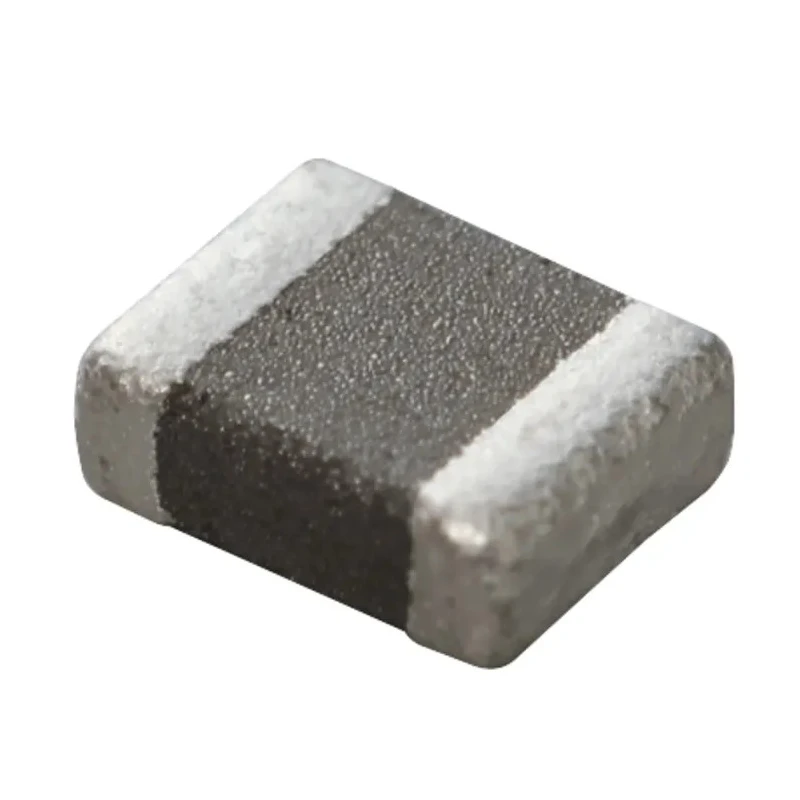

Murata Power Solutions 1210 Shielded Multilayer Surface Mount Inductor with Metal Alloy Core 1 μH DFE322512C

Murata Power Solutions DFE322512C 1210 Shielded Multilayer Surface Mount Inductor with a metal alloy core delivers reliable electromagnetic performance with an inductance of 1 μH. It is designed specifically for surface mount applications requiring stable inductance values and low DC resistance.

This multilayer inductor is capable of handling a maximum DC current of 3.7 A and features an inductance tolerance of ±20%, making it suitable for electronic circuits where precise inductance is not critically stringent but stable performance is needed. The package is the common 1210 footprint with compact dimensions of 3.2 mm length and 1.2 mm height and depth, facilitating high-density PCB layouts.

The metal alloy core enhances magnetic shielding and reduces electromagnetic interference, lending to improved signal integrity in complex systems. The inductor is molded and embedded with shielding for added mechanical robustness and thermal stability from -40°C up to 85°C operating temperature.

Its low maximum DC resistance of 0.05 Ω ensures minimal power loss during operation. The termination style supports surface mount assembly with embossed tape packaging, optimized for automated production lines.

While this model does not carry automotive certification, it finds use in a variety of electronic components applications including power management circuits, filtering, and noise suppression within consumer electronics, industrial machinery, telecommunications, and computer hardware.

Features a multilayer construction ensuring stable performance. Rated maximum DC current of 3.7 A for high current applications. Embedded metal alloy core improves magnetic properties and shielding. Package size is standard 1210 with dimensions 3.2 mm length and 1.2 mm height and depth.

Low maximum DC resistance of 0.05 Ω reduces power loss. Inductance tolerance is ±20% suitable for general purpose use. Operating temperature range is from -40°C to 85°C ensuring reliability in various environments. Termination style is surface mount compatible with embossed tape packaging for easy assembly.

This inductor is molded and shielded for enhanced durability and EMI reduction. Designed without automotive standards approval but suitable for electronic component applications.

This product is ideal for engineers and manufacturers seeking a reliable Surface Mount Inductor solution with enhanced shielding and stable inductance characteristics. Murata's engineering and manufacturing standards ensure high quality and longevity in electronic assemblies.
