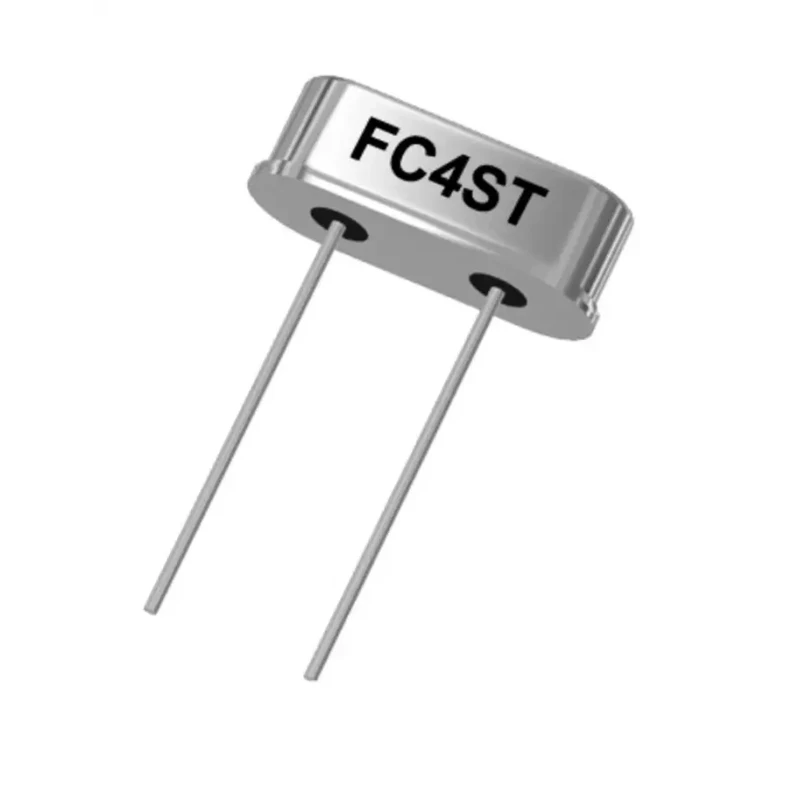

Abracon 12.288 MHz ±30 ppm Crystal HC-49 2-Pin Through Hole 3.6 mm Height 11.35 mm Length 4.64 mm Width FC4STCBMF12.288

Abracon FC4STCBMF12.288 is a 12.288 MHz crystal unit featuring a ±30 ppm frequency tolerance and an HC-49 2-pin through-hole package design. This crystal offers a load capacitance of 20 pF and a shunt capacitance of 7 pF with a resistance weld seal and termination finish of Sn, Ag 3.0, and Cu 0.5, ensuring durable and reliable performance in various applications.

Measuring 11.35 mm in length, 4.64 mm in width, and 3.6 mm in height, the crystal is suitable for printed circuit boards using through-hole mounting. It operates efficiently within the temperature range of -20°C to +70°C, making it ideal for industrial, commercial, and laboratory equipment requiring precise timing signals.

Designed to meet RoHS environmental standards, this crystal ensures compliance with global regulations. It is part of the FC4ST series known for its frequency stability and durability. The product is especially applicable in electronic oscillators, signal generators, and timing devices within communication, manufacturing, and consumer electronics sectors.

Standard frequency is 12.288 MHz with a ±30 ppm tolerance. Load capacitance rated at 20 pF for stability. Through-hole HC-49 package with 2 pins. Operating temperature between -20°C and 70°C. RoHS compliant to meet environmental guidelines.

Resistance weld seal and specific termination finishes. Compact size suitable for varied PCB layouts. Reliable performance in industrial and commercial electronics. Shunt capacitance of 7 pF ensures signal clarity.

This Abracon Crystal Unit is a reliable component for precise frequency generation and timing applications. It is ideal for integration into oscillators and electronic circuits requiring stable clock sources. Browse EnvMart's comprehensive selection of high-quality electronic components for your industry needs and ensure enhanced device performance and longevity.
