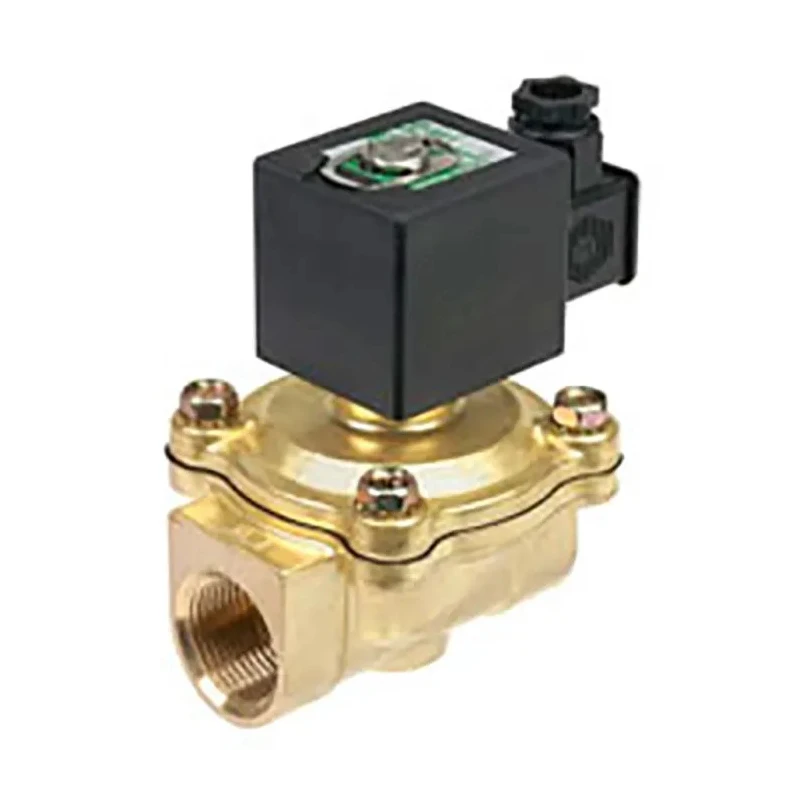

EMERSON ? ASCO EMERSON ASCO Solenoid Valve 2 Port Normally Closed Brass Body 19mm Orifice 230V AC SCG238A048.230/50

EMERSON ASCO SCG238A048.230/50 solenoid valve is an industrial-grade, power-assisted 2/2 normally closed valve designed primarily for water control applications. It delivers precise fluid handling with a brass body that assures durability and corrosion resistance. The valve operates on a standard 230V AC electrical supply, suitable for various industrial and commercial plumbing systems.

The 238 series solenoid valves are engineered for superior performance with a floating diaphragm, which eliminates water hammer when shutting off water flow, protecting connected pipelines and equipment. Its construction complies with rigorous standards including ISO 4400, EN 175301-803, IEC 335, EN 60529, and WRAS approval, ensuring safety and quality for professional use.

With a 19mm orifice diameter, the valve supports a maximum operating pressure of 10 bar and functions reliably between -20°C and 85°C, making it adaptable to diverse environmental conditions. It features threaded inlet connections conforming to G ISO 228/1 standards and is fitted with a pluggable PG 11P electrical connector for straightforward installation and maintenance.

The design includes servo assistance for enhanced control and energy efficiency. Additionally, the valve carries ATEX and EC certifications for safe usage in hazardous areas. The flow factor Kv is rated at 4.5 cubic meters per hour, guaranteeing effective flow regulation in fluid power applications.

Manufactured in France, this solenoid valve is suitable for industrial, HVAC, water treatment, agricultural irrigation, and process control sectors. It combines high performance, compliance with international standards, and robust materials to deliver reliable and long-lasting service.

Designed with power-assisted control and floating diaphragm technology to eliminate water hammer effects. Features a 19mm orifice diameter suitable for water applications with a maximum operating pressure of 10 bar. Operates efficiently within a temperature range of -20°C to 85°C.

Equipped with threaded G ISO 228/1 inlet connections for secure installation. Certified with IEC, EN, ISO standards and has ATEX hazardous area certification. Flow factor Kv of 4.5m³/h ensures reliable fluid control performance.

Compact design with pluggable PG 11P electrical connection for ease of use. Manufactured in France ensuring high quality and reliability. Explore more Solenoid Valves and industrial valves from EnvMart to find the ideal products for your automation and fluid control requirements.
