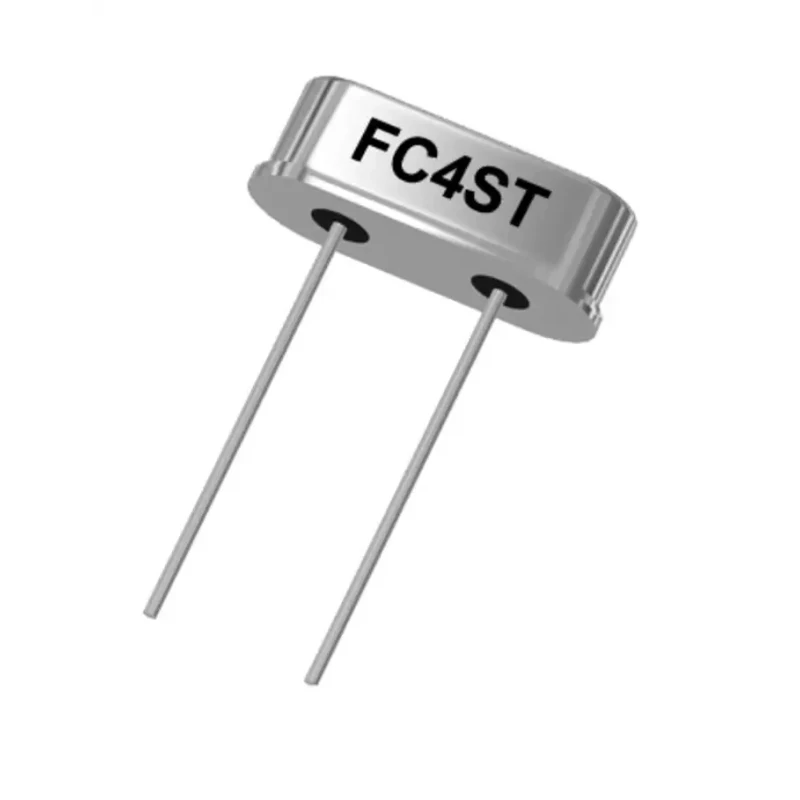

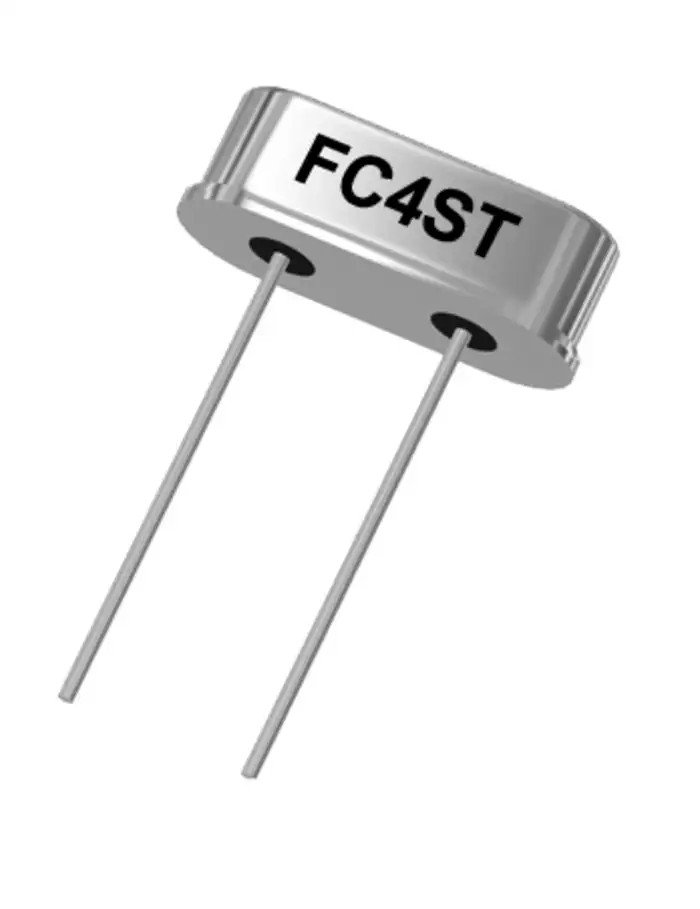

Abracon 11.0592 MHz Crystal ±30 ppm HC-49 Through Hole 2-Pin 3.6 mm x 11.35 mm x 4.64 mm FC4STCBMF11.0592
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 3.6mm |
| Length | 11.35mm |
| Model | FC4STCBMF11.0592 |
| Packaging | Tape & Reel |
| Width | 4.64mm |
| Mount Type | Through Hole |
| Series | FC4ST |
| Maximum Operating Temperature | 70°C |
| Package Type | HC-49 |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 11.0592MHz |
| Load Capacitance | 20pF |
Key Features
- The crystal has a load capacitance of 20 pF, designed for stable oscillation circuits.
- Physical dimensions measure 11.35 mm length, 4.64 mm width, and 3.6 mm height.
- Operates reliably within temperatures ranging from -20°C to 70°C.
- Manufactured with RoHS compliant materials ensuring environmental safety.
- Part of the FC4ST series featuring a resistance weld seal and termination finishes including Sn, Ag3.0, and Cu0.5.
- Shunt capacitance is approximately 7 pF contributing to circuit stability.
- This crystal unit is suitable for electronic circuits requiring precise frequency control.
Product Description
The Abracon FC4STCBMF11.0592 is a high-quality crystal unit designed for electronic applications requiring precise timing and frequency control. Its standard frequency is 11.0592 MHz with a frequency tolerance of ±30 ppm and frequency stability of ±50 ppm, which ensures consistent oscillation characteristics critical in communication and timing circuits.
This crystal features a HC-49 through-hole package with two pins, making it compatible with a variety of PCB layouts. The physical dimensions are 11.35 mm in length, 4.64 mm in width, and 3.6 mm in height, fitting standard form factors.
Its load capacitance of 20 pF and a shunt capacitance of approximately 7 pF contribute to electrical stability. The crystal is sealed with resistance weld technology and finished with a termination layer consisting of tin, silver (3.0%), and copper (0.5%) for enhanced conductivity and durability.
Operating temperature range from -20°C to 70°C allows this crystal unit to function efficiently in various industrial, commercial, and consumer electronic environments. It complies with RoHS standards, reflecting its environmentally friendly manufacturing process.
This crystal is widely used in oscillator circuits, communications devices, and timing control modules. Its high reliability and stable performance make it suited for laboratory equipment, industrial control systems, and general electronic component replacements.
Standard frequency of 11.0592 MHz with ±30 ppm tolerance. Through-hole HC-49 package type with 2 pins. Load capacitance rated at 20 pF for circuit compatibility. Compact dimensions: 11.35 mm length, 4.64 mm width, 3.6 mm height.
Wide operating temperature range of -20°C to 70°C. RoHS compliant for environmental safety. Resistance weld seal with Sn, Ag3.0, Cu0.5 termination finishes. Shunt capacitance approximately 7 pF for stability. Explore a comprehensive selection of Crystal Units and oscillators at EnvMart to find components that match your electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 11.0592 MHz, with a frequency tolerance of ±30 ppm.
This model has physical dimensions of 11.35 mm in length, 4.64 mm in width, and 3.6 mm in height.
It utilizes an HC-49 through-hole package type with two pins, making it compatible with various PCB layouts.
The load capacitance of this crystal unit is rated at 20 pF, which contributes to its electrical stability.
The operating temperature range for this model is from -20°C to 70°C, allowing it to function efficiently in various environments.
The termination finishes of this crystal include tin, silver (3.0%), and copper (0.5%), enhancing its conductivity.
Yes, this crystal unit is manufactured with RoHS compliant materials, ensuring environmental safety.
The shunt capacitance of this crystal unit is approximately 7 pF, which contributes to its stability in circuits.
This model is part of the FC4ST series, which features a resistance weld seal.
The crystal unit is packaged in tape and reel format, facilitating easy handling and placement.
This crystal unit is suitable for use in oscillator circuits, communications devices, and timing control modules.
The country of origin for this crystal unit is India.
