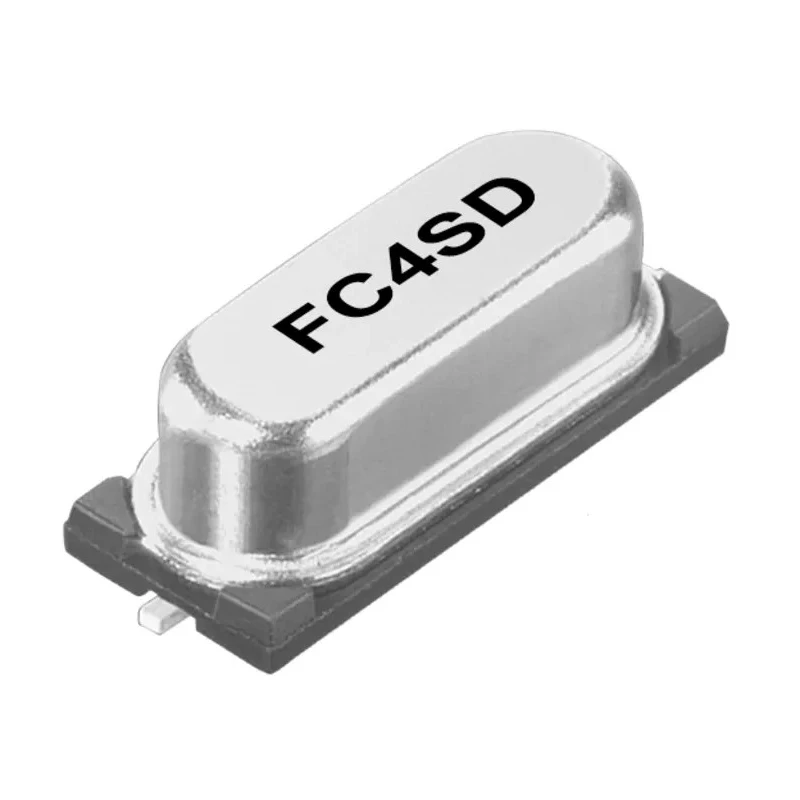

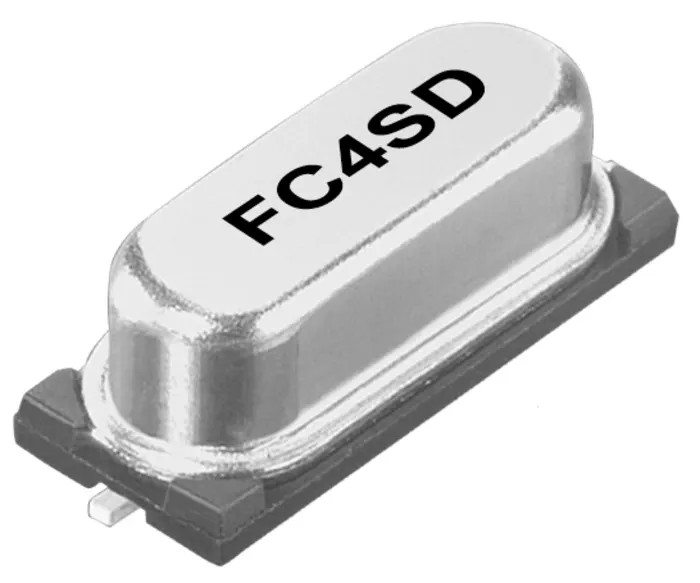

Abracon 24 MHz Crystal ±30 ppm Surface Mount 2-Pin 13.5 mm x 5 mm x 4.5 mm FC4SDCBMF24.0-T1

Abracon FC4SDCBMF24.0-T1 is a 24 MHz crystal unit designed for surface mount applications requiring precision and stability. Featuring a 2-pin configuration and compact size of 13.5 mm length, 5 mm width, and 4.5 mm height, this crystal is suitable for modern electronic circuits and oscillators.

This crystal offers a frequency tolerance of ±30 ppm and frequency stability of ±50 ppm, enabling stable frequency output in critical communications, computing, and consumer electronics applications. Its load capacitance of 20 pF and shunt capacitance of approximately 7 pF allow reliable integration within oscillating circuits to maintain timing accuracy.

Designed with a resistance weld seal and termination finish of Sn, Ag3.0, and Cu0.5, the crystal supports durability and longevity in varied environments. The component supports an operating temperature range from -20°C to 70°C, making it well-suited for industrial, commercial, and automotive electronics systems that require dependable performance under fluctuating thermal conditions.

Compliance with RoHS standards certifies it as an environmentally friendly product, while tape and reel packaging support manufacturing processes through ease of automated pick-and-place mounting.

Standard frequency of 24 MHz. Frequency tolerance ±30 ppm. Load capacitance 20 pF. Surface mount package with tape and reel packaging. Compact dimensions: 13.5 mm x 5 mm x 4.5 mm. Operating temperature range from -20°C to 70°C.

Resistance weld seal and Sn/Ag/Cu termination finish. RoHS compliant.

This Abracon crystal unit is commonly used in electronic circuit timing, frequency control, communications, industrial control systems, and consumer electronic devices, ensuring precise and stable clock signals. Discover more electronic components in our comprehensive Crystal Units category at EnvMart.
