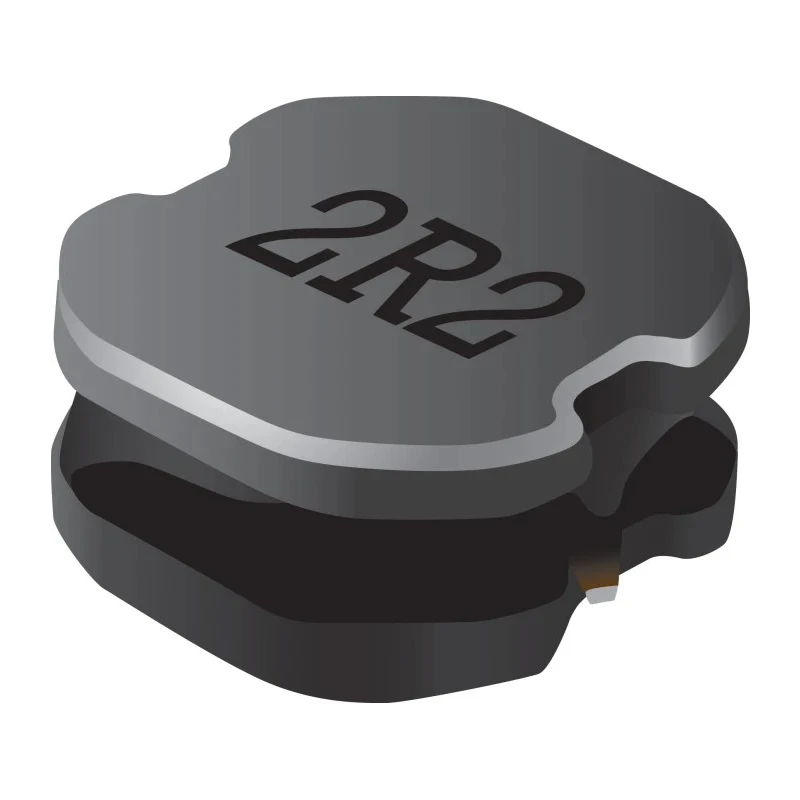

Bourns 0804 Shielded Surface Mount Inductor with Ferrite Core 1.5 μH 7A Maximum DC Current SRN8040
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bourns |
| Height | 4mm |
| Length | 8mm |
| Model | SRN8040 |
| Depth | 4mm |
| Packaging | Reel |
| Series | SRN8040 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1.5μH |
| Standards/Approvals | RoHS |
| Package/Case | 0804 |
| Maximum DC Current | 7A |
| Maximum DC Resistance | 0.01Ω |
| Inductance Tolerance | 30 % |
| Termination Style | Solder |
| Minimum Quality Factor | 13 |
| Inductor Construction | Semi Shielded |
Key Features
- The inductor features a semi-shielded construction with a ferrite core for improved performance.
- Designed with an 0804 package size, measuring 8mm in length, 4mm in height and depth.
- Supports a wide operating temperature range from -40°C to 125°C for diverse applications.
- Maximum DC resistance is rated at a low 0.01Ω, ensuring efficient current flow.
- Suitable for surface mount applications on PCBs with solder termination style.
- Packaged on a reel for ease of automated assembly in manufacturing.
- Complies with RoHS standards assuring environmentally safe materials and construction.
- Offers an inductance tolerance of 30% with a minimum quality factor of 13 for stable inductive properties.
Product Description
Bourns SRN8040 0804 Shielded Surface Mount Inductor features a ferrite core designed for efficient inductive performance with an inductance value of 1.5 μH and maximum DC current capacity of 7 amps. Its semi-shielded construction minimizes electromagnetic interference, suitable for high frequency electronic circuits.
This inductor comes in a compact 0804 package size with dimensions of 8mm length, and 4mm height and depth, making it ideal for surface mount applications in electronics manufacturing and prototyping.
It has a low maximum DC resistance of 0.01 ohms which helps reduce power loss and heat generation during operation. The device supports a broad operating temperature range from -40°C to 125°C, enabling use in automotive, industrial, and consumer electronics environments.
The termination style is solder, providing robust mechanical and electrical connections to printed circuit boards. The product is supplied on reels facilitating automated assembly and high volume production.
Bourns has ensured that this inductor meets RoHS compliance standards, highlighting the product's environmentally friendly design and manufacturing processes. The semi-shielded ferrite core improves magnetic performance and reduces noise.
30% inductance tolerance allows for flexible design tolerances. A minimum quality factor of 13 supports efficiency in signal filtering applications. Moulded construction enhances durability and mechanical strength.
This surface mount inductor is used extensively in power management circuits, DC/DC converters, and EMI filtering modules in various industrial, electronic, and automotive applications.
Explore the full range of Surface Mount Inductors on EnvMart for specialized needs and complementary electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 1.5 μH.
The maximum DC current rating for the SRN8040 is 7A.
This inductor has dimensions of 8mm in length, 4mm in height, and 4mm in depth.
The maximum DC resistance is rated at 0.01Ω.
The SRN8040 supports an operating temperature range from -40°C to 125°C.
It uses a solder termination style for robust connections on printed circuit boards.
The inductance tolerance for the SRN8040 is 30%.
The minimum quality factor is rated at 13.
The inductor features a ferrite core for improved performance.
It is packaged on a reel, facilitating automated assembly in manufacturing.
Yes, it complies with RoHS standards, ensuring environmentally safe materials and construction.
This inductor is used extensively in power management circuits, DC/DC converters, and EMI filtering modules.
