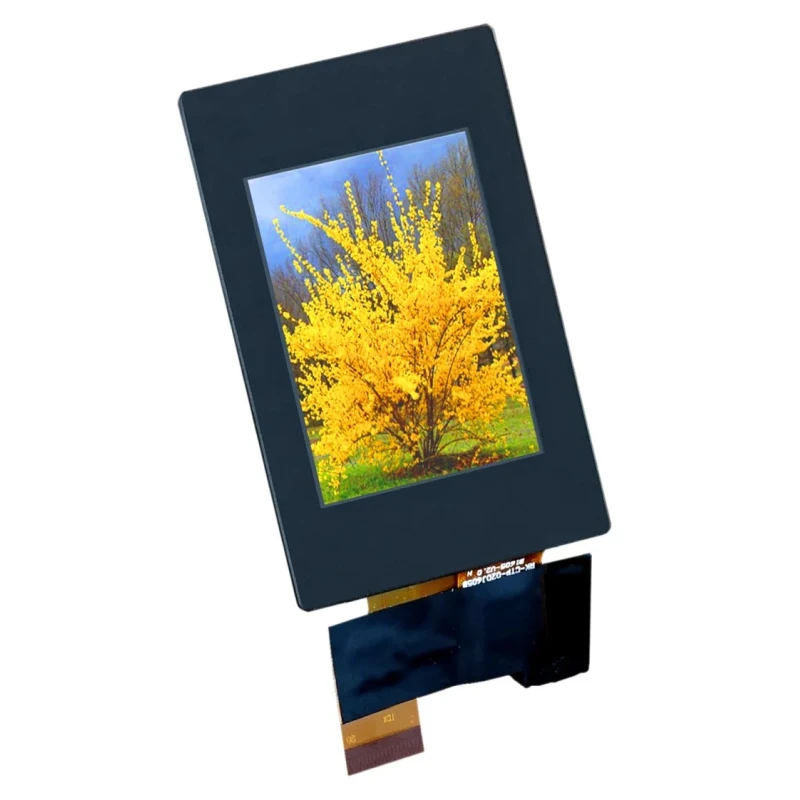

Display Visions EA TFT020-23AITC 2 Inch TFT LCD Display Touch Screen 50.8 mm 240 x 320 Pixel EA TFT020-23AITC

Free Delivery in India | Lowest Global Shipping Charges

Display Visions EA TFT020-23AITC 2 Inch TFT LCD Display Touch Screen 50.8 mm 240 x 320 Pixel EA TFT020-23AITC

Name: Display Visions EA TFT020-23AITC 2 Inch TFT LCD Display Touch Screen 50.8 mm 240 x 320 Pixel EA TFT020-23AITC
Brand: Display Visions
SKU: 170994



Category LCD Colour Displays Brand Display Visions Condition New

Specifications

Country of Origin	India
Display Type	TFT
Brand	Display Visions
Model	EA TFT020-23AITC
Depth	2.2mm
Width	36mm
Maximum Operating Temperature	70°C
Brightness	800cd/m²
Minimum Operating Temperature	-20°C
Interface Type	8-Bit Parallel
Screen Resolution	240 x 320 pixel
Minimum Supply Voltage	3.3V
Viewing Area Dimensions	31.2 x 41.4 mm
Backlight Type	LED
Diagonal Display Size	50.8mm

Key Features

The display features an optical bonded PCAP touch panel for enhanced input sensitivity.
It uses IPS technology providing full viewing angles and color stability.
Brightness level is rated at 800 cd/m², ensuring vivid visibility.
Backlight is LED type, contributing to energy efficiency and brightness uniformity.
The display operates with a minimum supply voltage of 3.3 volts.
Temperature operating range spans from -20°C to +70°C for versatility in environments.
The interface type is 8-bit parallel for compatibility with various controllers.
Designed without specific standards or approvals but optimized for industrial display applications.

Product Description

Display Visions EA TFT020-23AITC TFT LCD Display Touch Screen features a 2 inch diagonal size and 240 x 320 pixel resolution, delivering high clarity and vibrant color representation. This TFT display incorporates an optical bonded PCAP touch panel, enhancing input precision and user interaction.

The IPS technology employed ensures full viewing angles with effective all-angle colour stability management (AACS), making this display suitable for diverse industrial, manufacturing, and electronic applications where wide-angle viewing is critical.

Brightness of 800 cd/m² accompanies an LED backlight that ensures uniform illumination and energy-efficient operation. Operating voltage starts at 3.3 volts, facilitating integration into low-power electronic systems.

Measuring 36 mm in width and 2.2 mm in depth, with a viewing area of 31.2 x 41.4 mm, this compact display module fits well into compact equipment or embedded devices. The operating temperature range of -20°C to 70°C supports use in harsh environments including industrial automation, medical instrumentation, and portable electronics.

The 8-bit parallel interface supports straightforward integration with numerous controllers and microprocessors, lending to its versatility in electronic design and R&D prototyping.

The display offers an OLED alternative technology substitute for projects requiring OLED modules. Features a capacitive touch technology with multi-touch capability for enhanced user interface designs. Considered ideal for industrial, commercial, and laboratory applications requiring precision touch control and consistent display performance.

Overall, the EA TFT020-23AITC is crafted for professionals seeking a reliable and high-performance TFT LCD display with robust operational parameters and touch functionality. Explore additional Display Visions modules and high-quality electronic components at EnvMart for comprehensive industrial solutions.

Explore more products in our LCD Colour Displays category.
