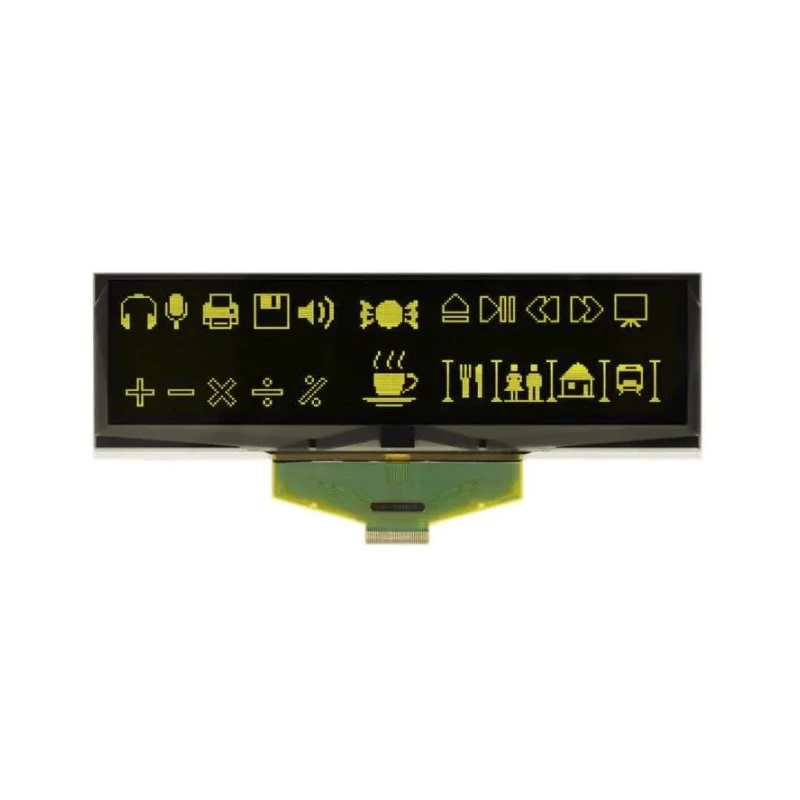

Display Visions 139.7 mm Passive Matrix Yellow OLED Display 256 x 64 Pixel COB SPI EA W256064-XGLG

Display Visions EA W256064-XGLG is a 139.7 mm diagonal passive matrix OLED display designed for compact handheld and industrial electronic applications. Its 256 x 64 pixel resolution ensures detailed graphical and textual information display with high clarity. The yellow color OLED offers excellent contrast ratio of 2000:1 enabling sharp visuals even in challenging lighting conditions.

Featuring a Chip-On-Board (COB) driver mounting and integrated SSD1322 controller, this OLED display simplifies design and integration. The SPI 8-bit interface supports communication with 3.3V logic systems commonly used in embedded electronics. Its operational temperature range from -40°C to 80°C makes it highly suitable for automotive, industrial automation, and laboratory environments where temperature extremes are encountered.

The display's compact external dimensions of 146 mm width, 45 mm height, and 2.05 mm depth facilitate its use in space-constrained devices. With a fast response time of 10µs, this display provides smooth and timely graphical updates, ideal for measurement instruments, wearable devices, and portable electronics. The forward voltage and current specifications (4V DC, 1A) guide proper power management.

Designed to meet RoHS standards, it ensures environmental compliance and safety. Typical industrial use cases include visual indicators in control panels, diagnostic displays in laboratory instruments, and user interfaces in automotive electronics. This OLED module’s efficient power usage and wide temperature tolerance make it a reliable choice for critical applications.

Passive matrix OLED technology with 256 x 64 pixel resolution for crisp display output. Integrated SSD1322 controller with SPI 8-bit interface enables easy system integration. Wide operating temperature range from -40°C to 80°C accommodates harsh environments.

Compact external dimensions (146x45x2.05 mm) fit space-limited designs. High contrast ratio of 2000:1 ensures excellent readability. Low power consumption suitable for battery-operated handheld devices. Fast 10 microseconds response time allows dynamic graphical representation.

Bright yellow color display for distinct visual feedback. Compliance with RoHS directives promotes environmental safety. Versatile application in industrial, automotive, laboratory, and communication systems.
