Display Visions 4.3 in TFT LCD Colour Display Touch Screen 480 x 272 pixel EA R480X-43ALW

Free Delivery in India | Lowest Global Shipping Charges

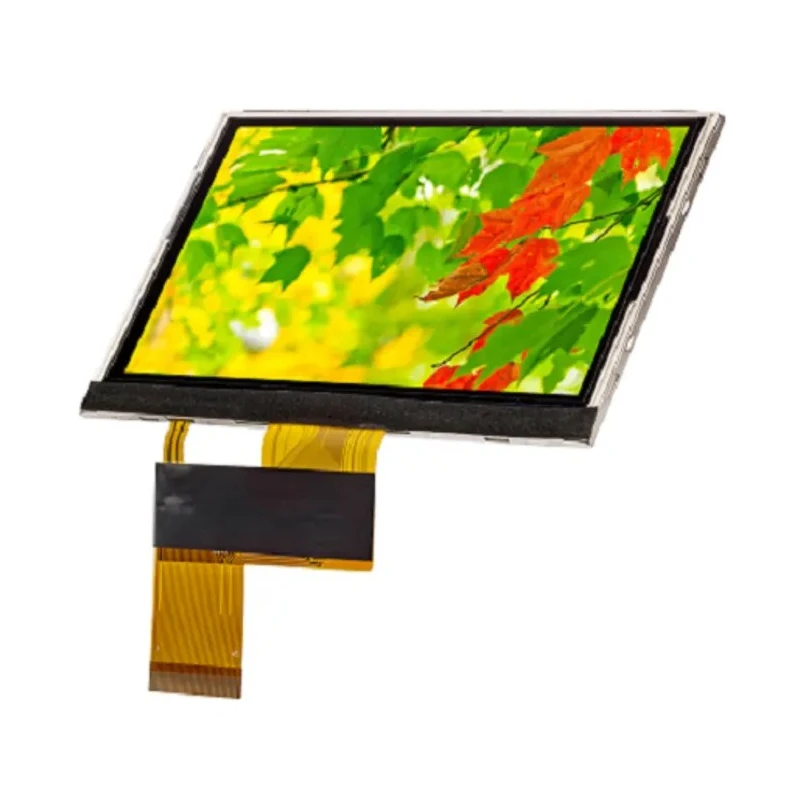

Display Visions 4.3 in TFT LCD Colour Display Touch Screen 480 x 272 pixel EA R480X-43ALW

Name: Display Visions 4.3 in TFT LCD Colour Display Touch Screen 480 x 272 pixel EA R480X-43ALW
Brand: Display Visions
SKU: 298967
Price: 82.26 USD
Availability: InStock



Category LCD Colour Displays Brand Display Visions Condition New

Specifications

Country of Origin	India
Display Type	TFT LCD
Brand	Display Visions
Current	8mA
Height	67.1mm
Model	EA R480X-43ALW
Depth	2.65mm
Width	105.4mm
Series	EA R480X
Maximum Operating Temperature	70°C
Brightness	1000cd/m²
Minimum Operating Temperature	-20°C
Power Dissipation	1024mW
Interface Type	24 Bit
Screen Resolution	480 x 272 pixel
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	3V
Viewing Area Dimensions	95.04 x 53.86 mm
Backlight Type	LED
Diagonal Display Size	4.3in
Contrast Ratio	800:1
800	1

Key Features

This 4.3 inch TFT display offers vibrant full colour output with 24-bit RGB interface.
High brightness of 1000 cd/m² ensures good visibility in varied lighting conditions.
The touch screen interface supports user interaction and control.
Operating voltage range is from 3 V to 3.6 V with low power dissipation of 1024 mW.
Wide operating temperature range from -20°C to 70°C for diverse environment suitability.
Viewing area measures 95.04 x 53.86 mm with compact dimensions of 105.4 x 67.1 x 2.65 mm.
Backlight uses energy efficient LED technology for durable illumination.

Product Description

Display Visions EA R480X-43ALW is a high-quality 4.3 inch TFT LCD colour display featuring a touch screen and a resolution of 480 x 272 pixels. Designed for precision visual output, it incorporates advanced AACS technology with a 24-bit RGB interface for vibrant, full colour images.

This display operates on a single power supply ranging from 3 V minimum to 3.6 V maximum, consuming just 1024 mW of power which makes it energy efficient. It features an LED backlight that provides a brightness level of 1000 cd/m², ensuring excellent visibility even under bright ambient light conditions.

The compact form factor with dimensions 105.4 mm width, 67.1 mm height, and 2.65 mm depth makes it suitable for integration into space-constrained industrial and electronic applications. Its viewing area spans 95.04 x 53.86 mm, delivering clear and detailed image reproduction with an 800:1 contrast ratio.

Capable of operating in harsh environments, the display supports a temperature range from -20°C up to 70°C. The touch screen interface allows for intuitive user control, ideal for embedded system interfaces, industrial machines, and interactive electronic devices.

This display module meets the needs of industrial, electronic components, automation systems, and embedded display use cases where compact size, high resolution, and energy efficiency are critical.

4.3 inch TFT LCD colour display with 480 x 272 pixel resolution. 24-bit RGB interface for accurate colour representation. Touch screen enabled for user interaction. LED backlighting providing 1000 cd/m² brightness. Operating voltage from 3 V to 3.6 V and low power dissipation.

Wide operating temperature range from -20°C to 70°C. Compact size: 105.4 mm width x 67.1 mm height x 2.65 mm depth. Contrast ratio of 800:1 for sharp image quality.

This product is ideal for integration in electronic manufacturing, industrial automation, and embedded systems requiring a vibrant, energy-efficient display module. Explore more industrial display solutions at EnvMart.
