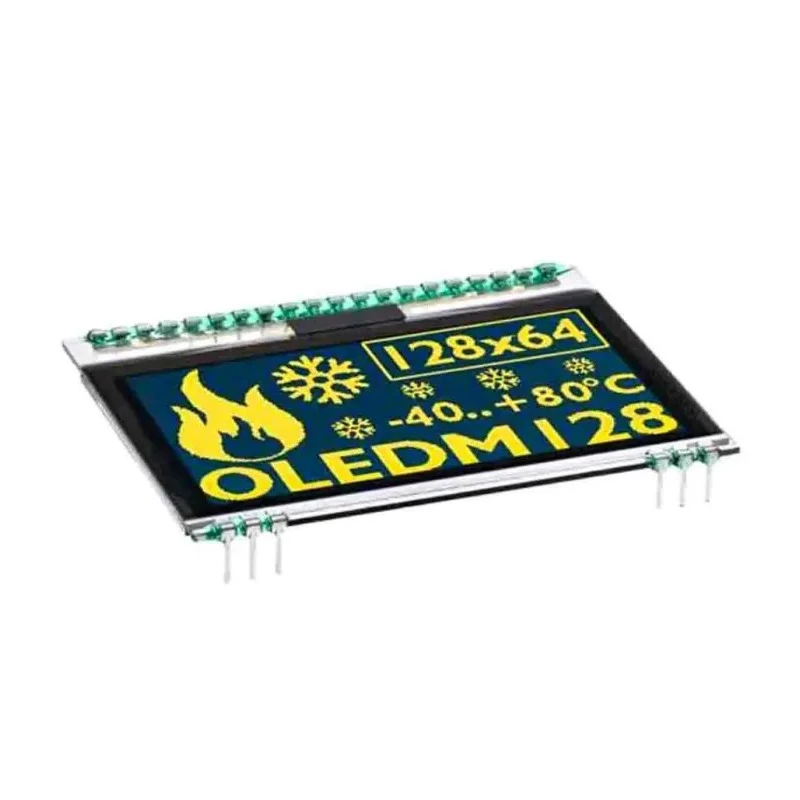

Display Visions 58.42 mm Passive Matrix Yellow OLED Display 128 x 64 Pixel Graphics I2C, SPI EA OLEDM128-6GGA

Display Visions EA OLEDM128-6GGA passive matrix yellow OLED display offers a 58.42 mm diagonal size with resolution of 128 x 64 pixels. It features a high contrast ratio of 2000:1 and a yellow display color, optimized for industrial, laboratory, and electronics applications requiring clear graphical output.

This OLED Display supports dual interface types, I2C and SPI, providing flexible integration options for embedded systems and handheld devices. It employs a passive matrix type panel with an aspect ratio of 17:31, ensuring crisp and stable graphics.

The display has a viewing area dimension of 34 x 62 mm with overall external dimensions of 67.5 mm width and 47.8 mm height. Its driver mounting is a graphics type allowing direct soldering or connection through standard 2.54 mm precision sockets, enhancing mechanical reliability compared to cable connectors.

Designed to operate within a wide temperature range from -40°C to 80°C, this display is well suited for use in industrial environments, laboratory instruments, manufacturing devices, and other commercial electronics where durability and performance are critical.

The forward voltage is 3.3V DC with a typical forward current of 28mA, allowing energy-efficient operation. The Display Visions EA OLED series provides fast response times with no afterglow, enhancing visual quality for dynamic graphical content.

The display features a 58.42 mm diagonal active area with a viewing area of 34 x 62 mm. It uses passive matrix technology with an aspect ratio of 17:31 for clear, sharp visuals. Interfaces include I2C (SDA, SCL) and SPI (MOSI, CLK, CS, D/C) for flexible integration.

High contrast ratio of 2000:1 and yellow color improve readability. Operating temperature range supports harsh environments (-40°C to 80°C). Driver mounting is graphics type for direct mounting and soldering. External dimensions are 67.5 mm width and 47.8 mm height for compact integration.

This product is ideal for electronics manufacturers, system integrators, and developers of handheld and compact display modules for industrial and commercial sectors. Explore more display solutions from Display Visions on EnvMart for reliable and efficient OLED technology.
