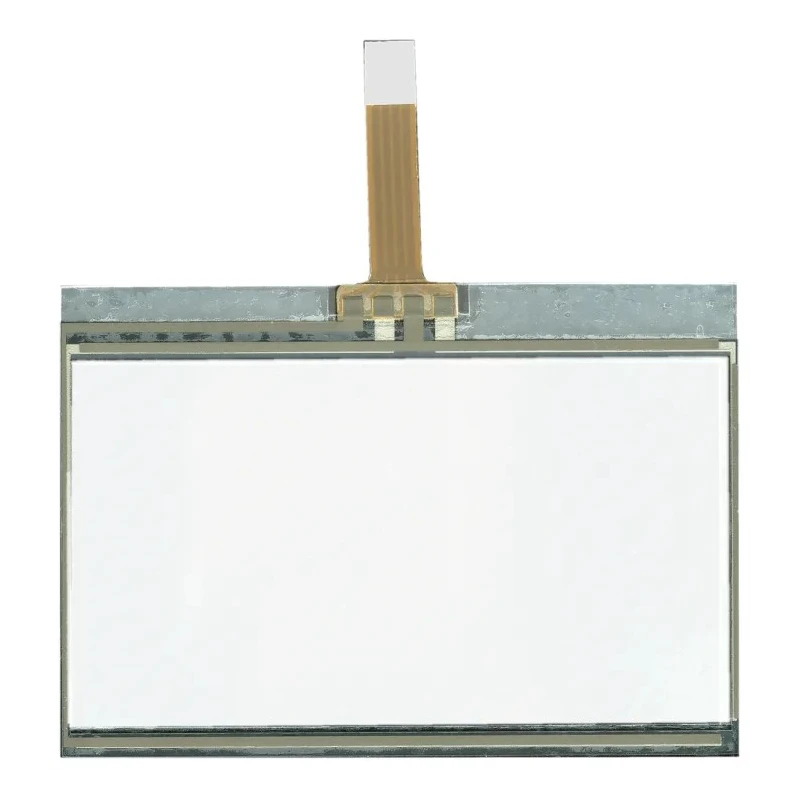

Display Visions 4 Wire Resistive Touch Screen Overlay 65 x 36.5 mm EA TOUCH128-2

Free Delivery in India | Lowest Global Shipping Charges

Display Visions 4 Wire Resistive Touch Screen Overlay 65 x 36.5 mm EA TOUCH128-2

Name: Display Visions 4 Wire Resistive Touch Screen Overlay 65 x 36.5 mm EA TOUCH128-2
Brand: Display Visions
SKU: 302211
Price: 30.96 USD
Availability: InStock



Category Touch Screen Overlay Brand Display Visions Condition New

Specifications

Country of Origin	Germany
Voltage	12V
Brand	Display Visions
Current	25mA
Model	EA TOUCH128-2
Sensor Type	4 Wire Resistive
Series	EA DOGL1218X-6
Termination Type	ZIF
External Width	67.5mm
External Height	47.8mm
Viewing Area Dimensions	65 x 36.5 mm
Active Area	62 x 34 mm

Key Features

The sensor uses a 4 wire resistive technology ensuring reliable touch responsiveness.
Operating voltage is 12V with a current draw of 25mA for efficient performance.
It features a ZIF termination type for easy and secure connectivity.
External dimensions are 67.5 mm in width and 47.8 mm in height, suitable for integration in small devices.
The active touch area measures 62 x 34 mm, providing accurate touch input within the display region.
Designed to interface with EA DOGL128-6 and similar high-contrast LCD STN displays.
Manufactured in Germany with precision standards ensuring durability and quality.
No specific industry standards or approvals are applicable, simplifying regulatory compliance.

Product Description

Display Visions EA TOUCH128-2 4 Wire Resistive Touch Screen Overlay is engineered for industrial and commercial electronic displays requiring compact, precise touch input. The overlay supports a 4 wire resistive sensor type, popular for its dependable analog sensing in various environments.

With a viewing area dimension of 65 x 36.5 mm and an active area of 62 x 34 mm, this touch screen overlay integrates seamlessly with EA DOGL128-6, an analog high-contrast LCD suitable for supertwist and flat supertwist displays. Its compact external dimensions of 67.5 mm width and 47.8 mm height make it ideal for applications needing space efficiency without sacrificing touch accuracy.

Operating at 12V and drawing only 25mA current, this overlay minimizes power consumption. The incorporation of a ZIF termination type provides a secure and straightforward interface connection, enhancing installation and maintenance.

Although it carries no special certifications or approvals, the product is manufactured in Germany, assuring quality craftsmanship and reliable operation suitable for laboratory, industrial controls, instrumentation, and embedded system projects.

The resistive touch sensor technology enables precise input in various industrial and commercial touchscreen applications. Compact dimensions support integration in space-constrained devices and custom display modules. Low voltage and current requirements reduce system power demands while maintaining responsiveness.

ZIF termination offers convenient wiring options minimizing installation complexity. Compatibility with EA DOGL128-6 displays extends utility across diverse electronic device configurations. German manufacturing standards assure product durability and performance reliability.

No regulatory approvals simplify deployment in various markets and applications.

This Display Visions touch screen overlay is a robust solution for designing embedded systems, industrial HMI interfaces, medical devices, and laboratory instrumentation needing reliable resistive touch input.
