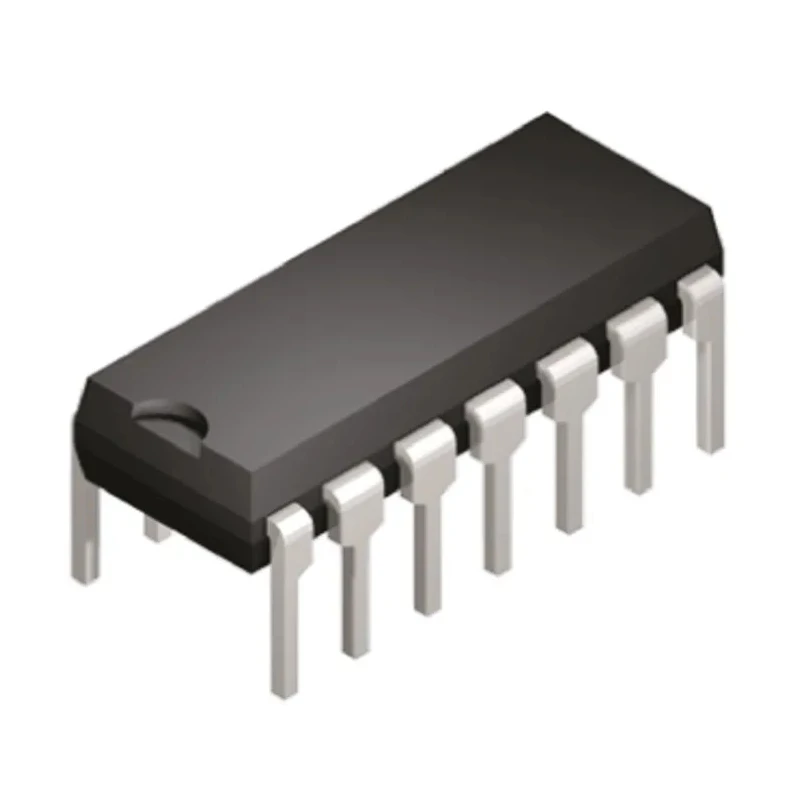

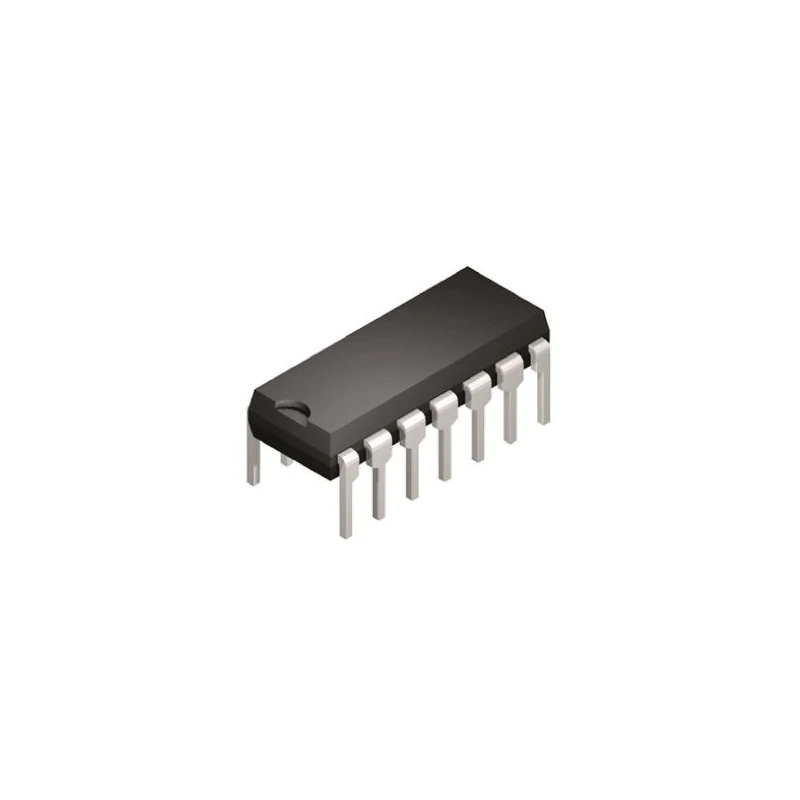

Texas Instruments Operational Amplifier 1.8 MHz, 14-Pin PDIP, 18V TLE2064CN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | TLE2064CN |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | TLE2064 |
| Output Current | 80mA |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 3.5V |
| GBP - Gain Bandwidth Product | 1.8MHz |
| Input Bias Current | 2 nA |
| Vos - Input Offset Voltage | 7.9 mV |
| Slew Rate | 3.4V/μs |
| Input Offset Current | 0.8 nA |
Key Features
- Features a gain bandwidth product of 1.8 MHz for efficient signal amplification.
- Operates with a supply voltage range from 3.5V to a maximum of 18V.
- JFET input stage offers low input bias current of 2 nA and low noise operation.
- Equipped with 4 independent amplifier channels within a single 14-pin PDIP package.
- Input offset voltage typically 7.9 mV with low input offset current of 0.8 nA.
- Slew rate of 3.4 V/μs supports fast signal processing.
- Output current capability up to 80 mA suitable for driving loads directly.
- Operating temperature range from 0°C to 70°C suitable for standard industrial environments.
Product Description
Texas Instruments TLE2064CN is a high-performance Operational Amplifier designed for a broad range of analog applications requiring precise signal amplification. Featuring a gain bandwidth product of 1.8 MHz and a 14-pin PDIP (Plastic Dual In-line Package) with through-hole mount, this device allows easy integration into printed circuit boards with standard through-hole technology.
This quad-channel amplifier integrates JFET input stages that provide exceptionally low input bias current of 2 nA, reducing signal distortion and enhancing accuracy. The input offset voltage of 7.9 mV and offset current of 0.8 nA further ensure minimal error in sensitive circuits.
The device operates efficiently with supply voltages ranging from 3.5 V up to 18 V, making it compatible with a wide array of electronic systems. It supports an output current of 80 mA and a slew rate of 3.4 V/μs which enables rapid response to input changes, ideal for high-frequency and fast switching circuits.
Dimensionally compact (19.3 mm x 6.35 mm x 4.57 mm) and RoHS compliant, the TLE2064CN is suitable for industrial, automotive (non-automotive standard), laboratory instrumentation, and consumer electronics applications. It is engineered for reliable operation within ambient temperatures ranging from 0°C to 70°C.
Gain bandwidth product of 1.8 MHz ensures efficient analog signal processing. Low input bias and offset currents improve circuit precision. Quad operational amplifier configuration provides four independent channels. Slew rate supports fast transitions in input signals.
Maximum supply voltage of 18 V supports various voltage environments. Standard 14-pin PDIP package compatible with through-hole mounting techniques. RoHS compliance assures adherence to environmental protection standards.
Designed for use in industrial, laboratory, and general electronic devices.
This product is widely used in electronic circuit design, signal conditioning, filtering, and instrumentation systems. Explore more in the Operational Amplifier category for complementary components offered by Texas Instruments and other leading manufacturers available on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.8 MHz, which allows for efficient signal amplification.
It operates with a supply voltage range from 3.5V to a maximum of 18V, making it compatible with various electronic systems.
This operational amplifier features four independent amplifier channels within a single 14-pin PDIP package.
The output current capability of the TLE2064CN is up to 80 mA, suitable for driving loads directly.
It has a low input bias current of 2 nA, which helps reduce signal distortion and enhance accuracy in circuits.
The dimensions of this operational amplifier are 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height.
The slew rate of this operational amplifier is 3.4 V/μs, enabling fast signal processing.
The input offset voltage is typically 7.9 mV, which contributes to minimal error in sensitive circuits.
It operates efficiently within an ambient temperature range from 0°C to 70°C, suitable for standard industrial environments.
Yes, this operational amplifier is RoHS compliant, ensuring adherence to environmental protection standards.
This model features a through-hole mount type, compatible with standard printed circuit board integration.
It is designed for use in industrial, laboratory, and general electronic devices, including signal conditioning and instrumentation systems.
