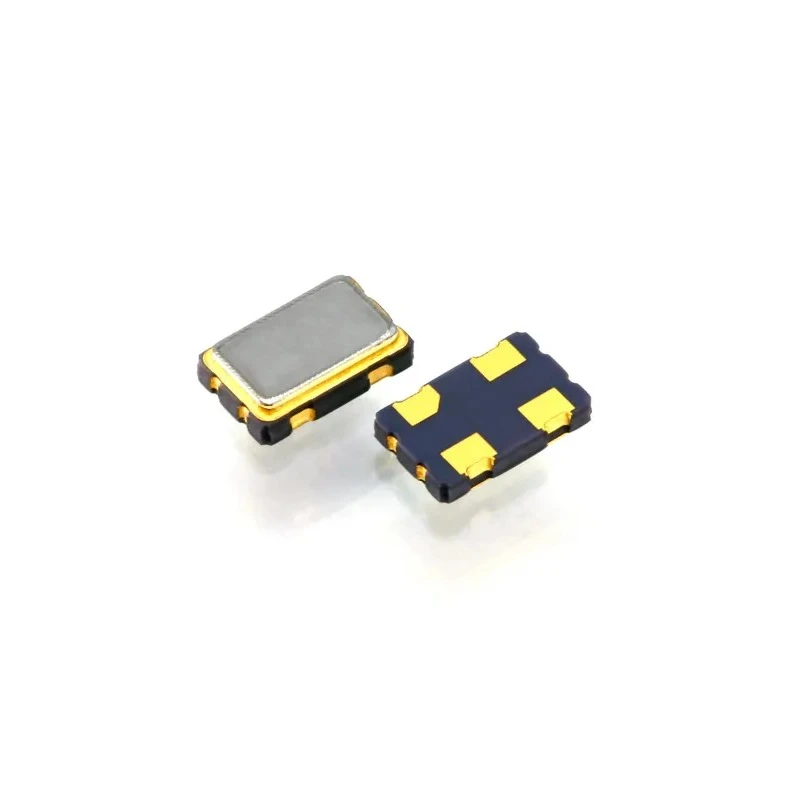

Ecliptek 12.288MHz XO Oscillator 45 ppm CMOS 4-Pin Surface Mount EC3645ETTTS-12.288M TR

Ecliptek EC3645ETTTS-12.288M TR is a compact 12.288MHz XO (crystal oscillator) designed for applications requiring stable frequency output with CMOS logic levels. This surface mount oscillator features a frequency stability of ±45 ppm, making it suitable for use in industrial, communication, and instrumentation applications.

The device operates from a 3.3V maximum supply voltage and includes a tri-state high impedance output pin for power down or standby operation. Its 4-pin surface mount package measures 5mm in length, 3.2mm in width, and 1.3mm in height, supporting space-efficient PCB layouts.

This oscillator is rated for an extended operating temperature range from -45°C to 85°C, ensuring robust performance in harsh environmental conditions. The product is supplied in tape and reel packaging, compatible with automated pick-and-place assembly lines.

Key features of the EC3645ETTTS-12.288M TR include precise frequency stability, low power CMOS output, and a high ease of integration with modern electronic systems. Its applications span industrial control systems, communication devices, and precision timer circuitry requiring a reliable crystal oscillator source.

Nominal frequency: 12.288MHz with XO oscillator type. ±45 ppm frequency stability ensuring timing accuracy. CMOS output level compatible with digital logic circuits. Compact 4-pin surface mount package size: 5mm x 3.2mm x 1.3mm.

Wide operating temperature range: -45°C to 85°C. Includes standby tri-state high impedance feature. Packaging suited for automated industrial assembly. Manufactured in Korea, Republic Of.

This oscillator is ideal for use in industrial electronics, telecommunications, computing devices, instrumentation, and embedded systems requiring stable clock sources. Explore more crystal oscillators and electronic components in the EnvMart Crystal Oscillator category.
