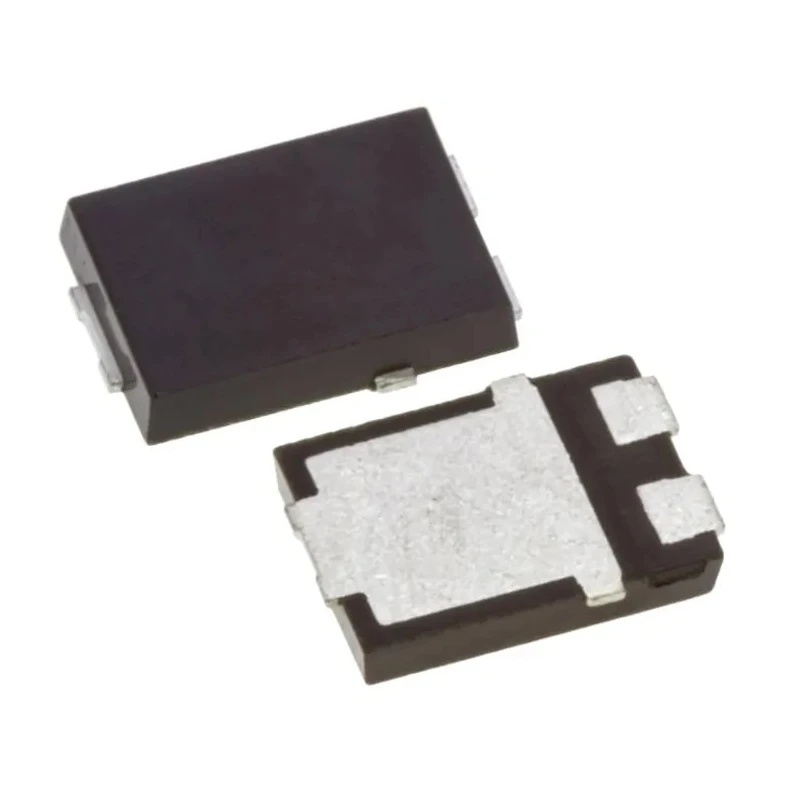

Vishay 60 V 15 A Schottky Diode Surface Mount 2-Pin TO-277 V15PM63-M3/H

Free Delivery in India | Lowest Global Shipping Charges

Vishay 60 V 15 A Schottky Diode Surface Mount 2-Pin TO-277 V15PM63-M3/H

Name: Vishay 60 V 15 A Schottky Diode Surface Mount 2-Pin TO-277 V15PM63-M3/H
Brand: Vishay
SKU: 170489
Price: 0.66 USD
Availability: InStock



Category Semiconductor Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	4.75mm
Brand	Vishay
Height	4.8mm
Length	6.65mm
Model	V15PM63-M3/H
Width	1.2mm
Mount Type	Surface
Maximum Operating Temperature	175°C
Package Type	TO-277
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	15A
Peak Reverse Repetitive Voltage Vrrm	60V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	6.5mA
Peak Non-Repetitive Forward Surge Current Ifsm	220A
Maximum Forward Voltage Vf	0.66V

Key Features

Trench MOS Barrier Schottky technology ensures very low forward voltage drop of 0.66 V.
Maximum operating temperature up to 175°C for high thermal stability.
Low peak reverse current of 6.5 mA enhances efficiency.
Meets RoHS compliance and automotive standard AEC-Q101 requirements.
Ideal for use in low voltage high frequency inverters and DC/DC converters.
Ultra-low forward voltage and power losses ensure high efficiency operation.
Designed for automated surface mount assembly processes.

Product Description

Vishay V15PM63-M3/H is a high current density Schottky diode designed for surface mount applications. It supports a maximum continuous forward current of 15 A and a peak reverse repetitive voltage of 60 V, packaged in a compact TO-277 2-pin format. The device features Trench MOS Barrier technology which provides a very low forward voltage of approximately 0.66 V, reducing power losses significantly.

This diode operates reliably in a wide temperature range from -40°C to 175°C, making it suitable for demanding industrial and automotive environments. Its low peak reverse current of 6.5 mA and high surge current capability of 220 A enable robust performance under transient conditions.

The small dimensions of the package (length 6.65 mm, diameter 4.75 mm, height 4.8 mm, width 1.2 mm) make it highly suitable for automated PCB assembly and compact electronic designs.

It complies with RoHS standards for environmental safety and meets the automotive AEC-Q101 standard, ensuring suitability for automotive and high-reliability applications. Typical applications include low voltage, high frequency inverters, freewheeling diodes, DC/DC converters, and polarity protection circuits.

Trench MOS Schottky technology for low forward voltage drop. Compact and low-profile TO-277 surface mount package. Wide operating temperature range: -40°C to 175°C. Meets RoHS and automotive AEC-Q101 standards. High surge current rating and low peak reverse current.

Optimized for high efficiency and low power loss operation. Ideal for industrial, automotive, power electronics, and inverter applications. Designed for reliable automated placement and soldering. Explore more semiconductor devices and Schottky diodes in EnvMart’s Electronics & Electricals section for power and signal management solutions.
