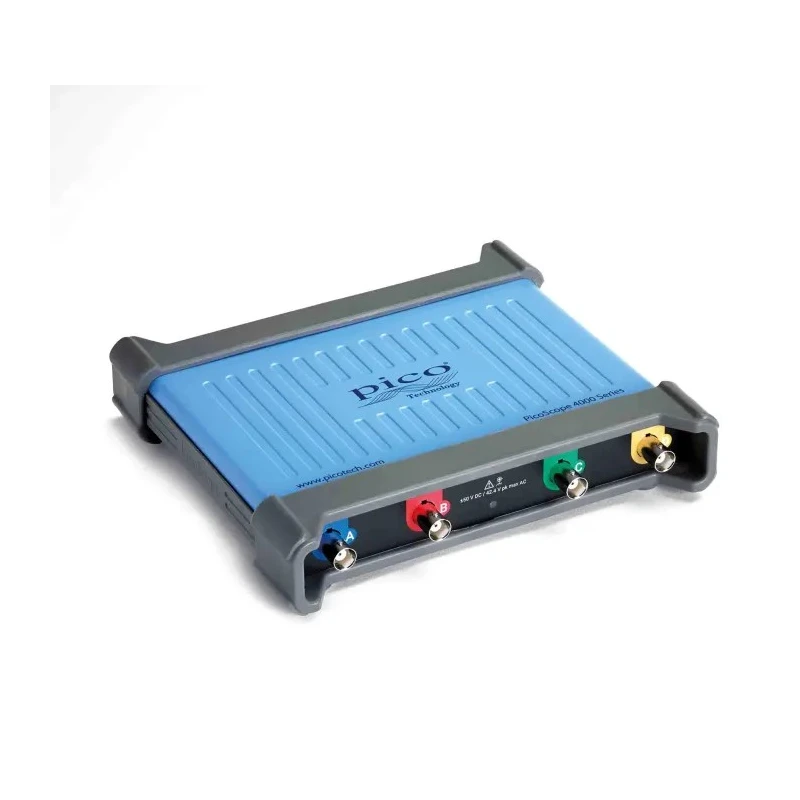

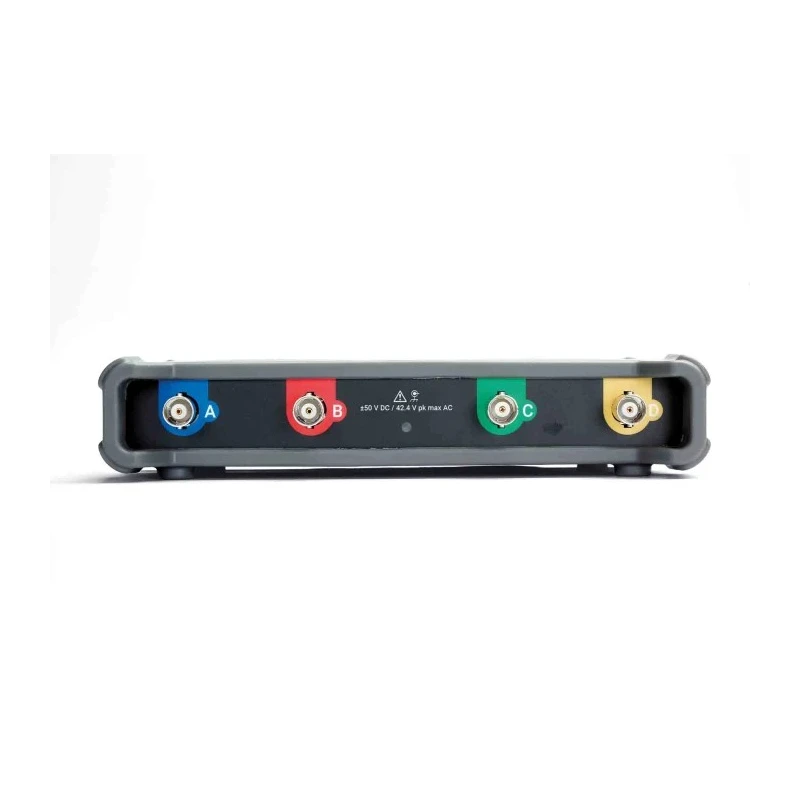

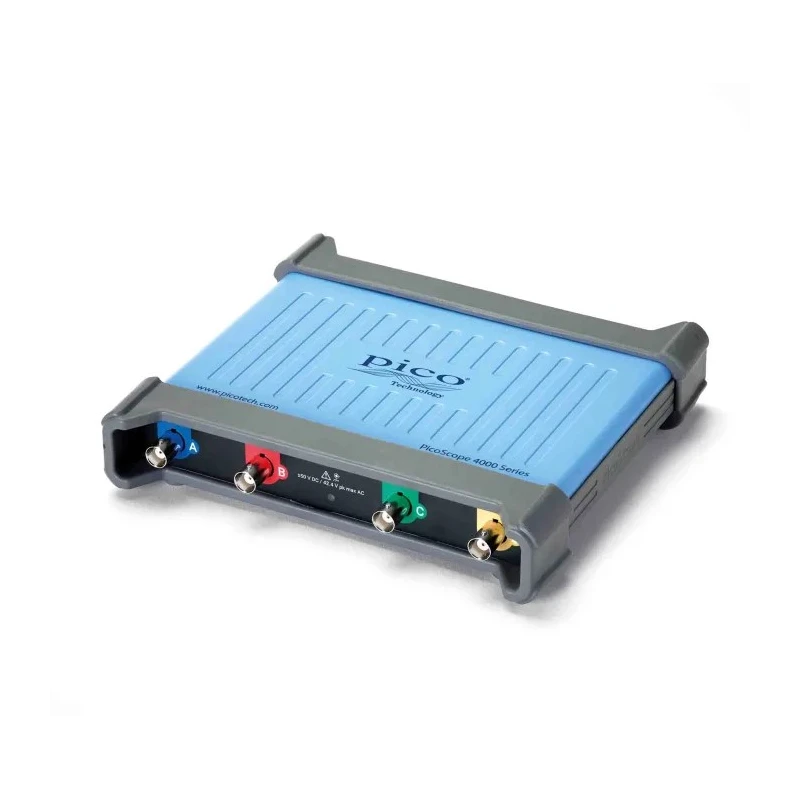

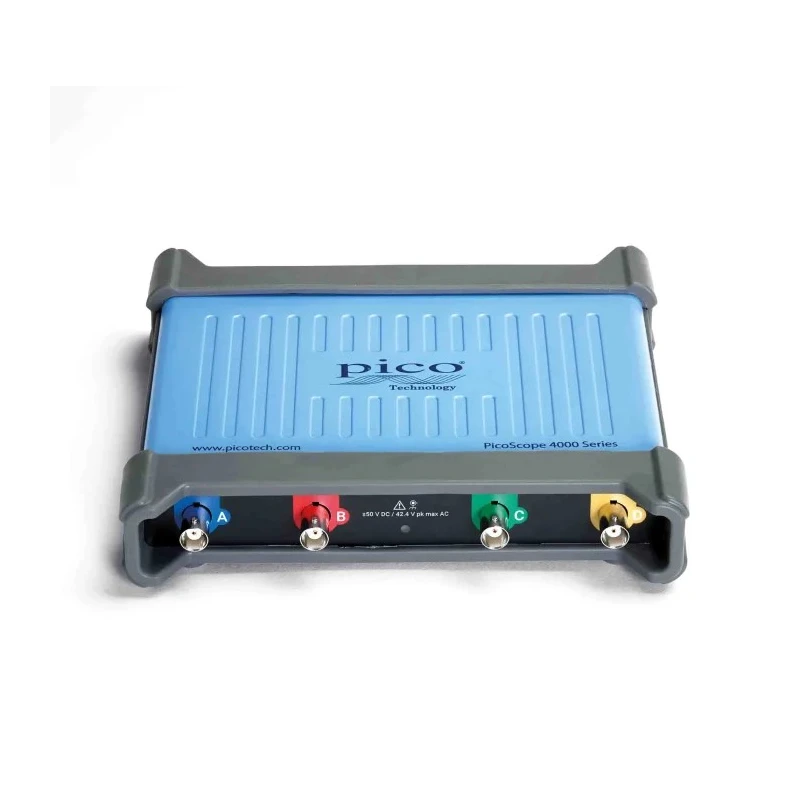

Pico Technology PC Based Oscilloscope 4 Channel 20 MHz Bandwidth USB 12-Bit Resolution PicoScope 4424A
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Resolution | 12-bit |
| Brand | Pico Technology |
| Height | 170mm |
| Model | PicoScope 4424A |
| Width | 190mm |
| Bandwidth | 20MHz |
| Series | PicoScope 4000A |
| Interfaces | USB 3 |
| Number Of Channels | 4 |
| Vertical Resolution | 12 bit |
| Rise Time | 17.5ns |
| Interface Type | USB |
| Oscilloscope Type | PC Based |
| Minimum Vertical Sensitivity | 2mV/div |
| Minimum Time Base | 20ns/div |
| Maximum Vertical Sensitivity | 10V/div |
| Maximum Time Base | 5000s/div |
| Two 10 | 1/1:1 switched probes |
Key Features
- Offers 12-bit hardware resolution with optional 16-bit resolution enhancement.
- Features 4 input channels with bandwidth up to 20 MHz and 80 MS/s sampling rate.
- Equipped with 256 MS deep capture memory for detailed waveform capture.
- Includes a built-in 14-bit signal generator capable of 80 MS/s AWG.
- Utilizes SuperSpeed USB 3.0 interface for fast data transfer to PC.
- Supports advanced digital triggering and serial bus decoding functionality.
- Compatible with PicoScope 6 and PicoSDK software for user interface and custom programming.
Product Description
Pico Technology PicoScope 4424A is a high-resolution 4-channel PC-based oscilloscope designed for precise electronic waveform analysis in industrial, laboratory, and educational environments. It offers a 20 MHz bandwidth with a 12-bit hardware resolution, extendable to 16 bits with resolution enhancement technology, enabling detailed signal acquisition with low distortion.
The instrument incorporates a large 256 MS deep capture memory to store extensive waveform data, sampled at a maximum 80 MS/s rate, making it suitable for complex time-domain signal investigations.

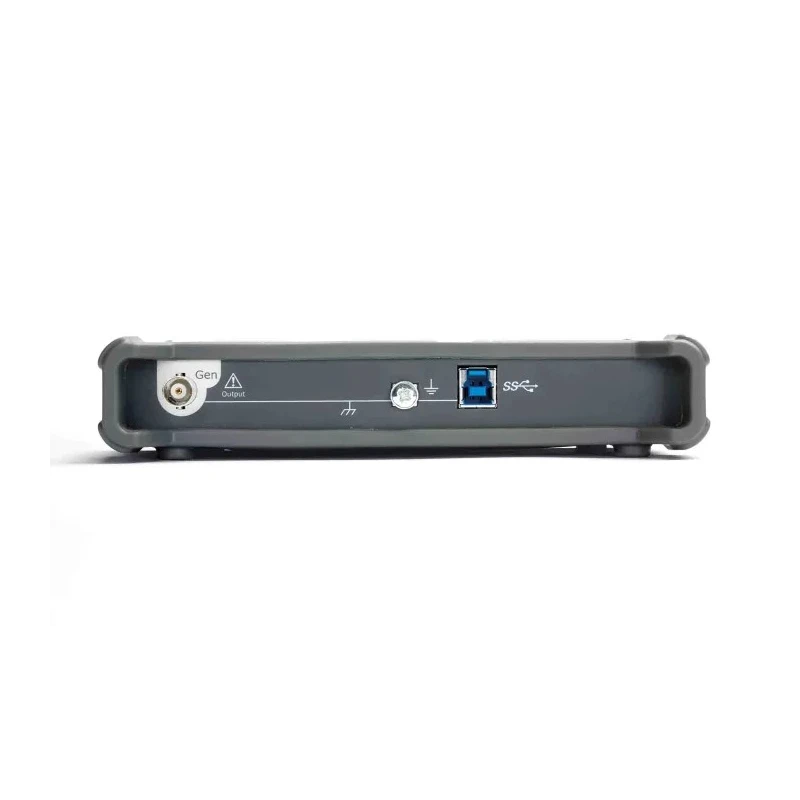

Its built-in 14-bit signal generator provides an arbitrary waveform generator (AWG) functionality, supporting sample rates up to 80 MS/s, allowing comprehensive signal testing and simulation capabilities directly from the device.

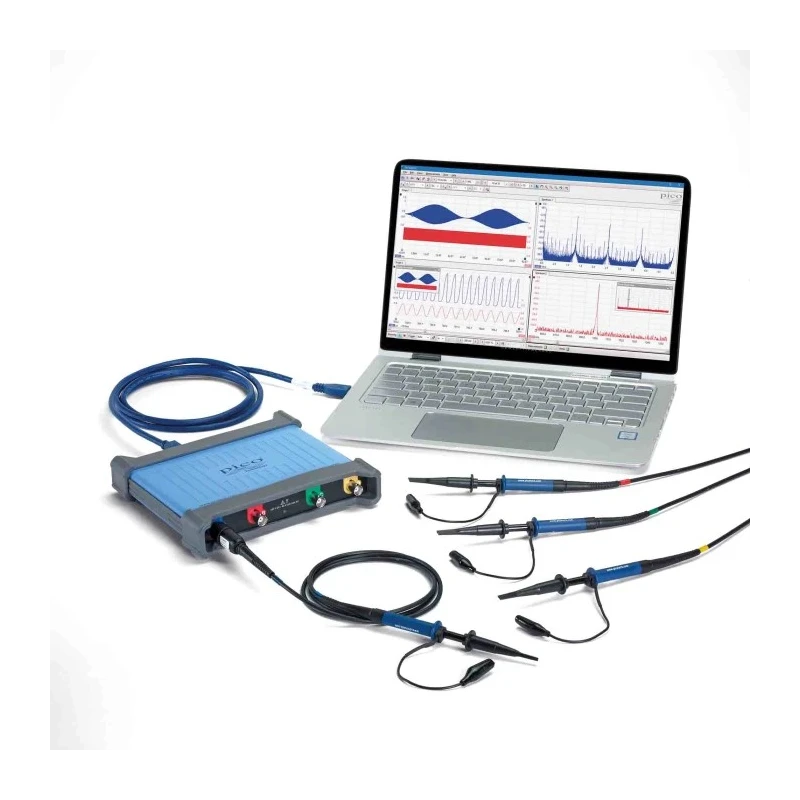

The PicoScope 4424A uses a SuperSpeed USB 3.0 interface, ensuring rapid communication and data transfer speeds with a host PC. It ships with USB 3.0 cable and two switchable 10:1/1:1 amplitude probes to cover a wide range of voltage measurement requirements.
The oscilloscope supports the popular PicoScope 6 software user interface and provides the PicoSDK for software developers to create customized measurement and automation applications, expanding its utility across different sectors including electronics manufacturing, debugging, research & development, and education.
12-bit hardware resolution expandable to 16 bits. 20 MHz bandwidth and 80 MS/s sample rate. 256 MS deep capture memory for detailed waveform analysis. Built-in 14-bit signal generator with 80 MS/s AWG. SuperSpeed USB 3.0 for fast PC communication.
Advanced digital triggering and serial bus decoding features. Comes with two 10:1/1:1 switchable probes and USB cable. Compact size for convenient benchtop operation.
This oscilloscope is ideal for industrial test and measurement, electronics development, educational laboratory settings, and precision waveform analysis requiring a portable PC-based solution.
