Broadcom 850 nm Infrared LED PLCC 4 Surface Mount IR LED AREQ-8020-00000

Free Delivery in India | Lowest Global Shipping Charges

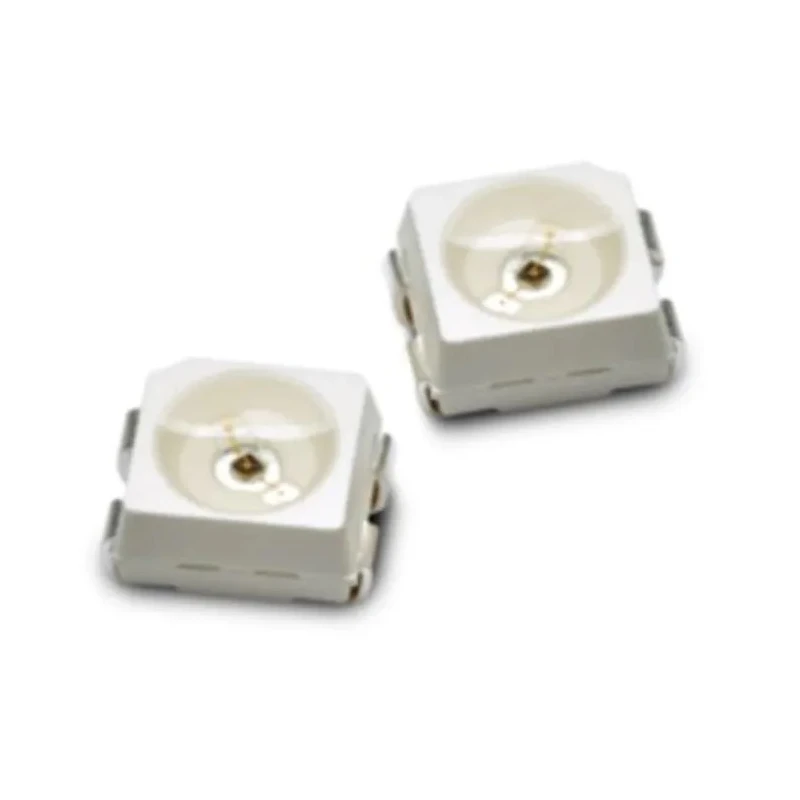

Broadcom 850 nm Infrared LED PLCC 4 Surface Mount IR LED AREQ-8020-00000

Name: Broadcom 850 nm Infrared LED PLCC 4 Surface Mount IR LED AREQ-8020-00000
Brand: Broadcom
SKU: 169944
Price: 0.66 USD
Availability: InStock



Category IR LED Brand Broadcom Condition New

Specifications

Country of Origin	China
Brand	Broadcom
Model	AREQ-8020-00000
Packaging	Tape & Reel
Mount Type	Surface
Series	AREQ-8020-00000
Number Of Leds	1
Package Type	PLCC 4
Standards/Approvals	JEDEC MSL 3
Number of Pins	4
Lens Shape	Circular
Maximum Supply Voltage	3.6V
Peak Wavelength	850nm
Angle of half intensity	120°
Radiant Intensity	35mW/sr

Key Features

The LED features a circular lens shape for optimized infrared illumination.
It has a wide viewing angle of 120 degrees ensuring broad coverage.
Designed for surface mount applications with a standard PLCC 4 package type.
Supports a maximum supply voltage of 3.6 volts for reliable operation.
Manufactured to JEDEC MSL 3 standards ensuring quality and moisture sensitivity protection.
Packaged in tape and reel format facilitating easy pick and place assembly.
Suitable for industrial sensing and infrared illumination applications.
Single LED unit with 4 pins for electrical connections.

Product Description

Broadcom AREQ-8020-00000 Infrared LED is a high-quality electronic component designed for precise infrared illumination and sensing applications. It emits infrared light at a peak wavelength of 850 nm, delivering a radiant intensity of 35 mW per steradian, making it ideal for a variety of industrial, electronic, and sensing uses.

This LED is built in a PLCC 4 surface mount package measuring approximately 3.5 mm by 2.8 mm by 1.9 mm, compatible with industry-standard reflow soldering processes for reliable PCB assembly. The component features a circular lens shape and a wide half-intensity viewing angle of 120 degrees, providing broad and uniform infrared coverage.

The device operates safely up to a maximum supply voltage of 3.6 V, with JEDEC MSL 3 moisture sensitivity level classification ensuring robustness in manufacturing and storage conditions. The LED comes taped and reeled, facilitating automated pick and place assembly processes during manufacturing.

It is primarily designed for industrial sensing and infrared illumination tasks, suitable for inclusion in various electronic and optoelectronic devices requiring infrared light sources.

The LED features a circular lens shape optimized for infrared light distribution. It offers a peak wavelength of 850 nm, ideal for infrared applications. Packaging in tape and reel ensures efficient automated assembly. Wide viewing angle of 120 degrees enhances illumination coverage.

Operating voltage up to 3.6 V supports reliable electronic performance. JEDEC MSL 3 standard for moisture sensitivity ensures product quality. Compact PLCC 4 package compatible with surface mount technology. Single LED with 4 pin connections simplifying circuit integration.

Manufactured in China, meeting industrial compliance specifications.

This Broadcom IR LED is a dependable choice for construction of infrared illumination and sensing equipment in industrial, manufacturing, and electronic device applications. EnvMart offers this component for professionals seeking high-performance optoelectronic parts.
