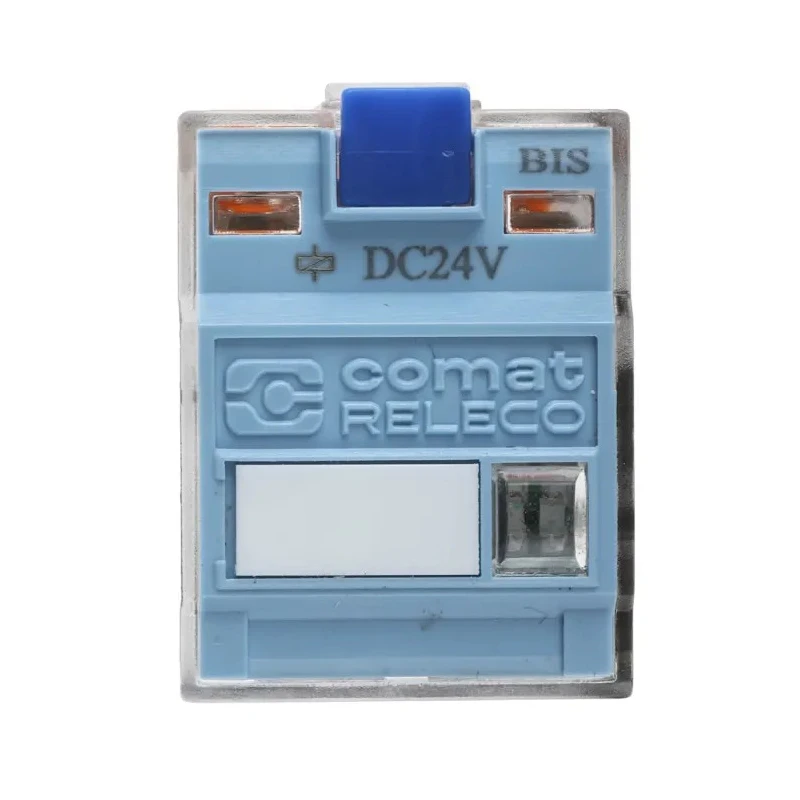

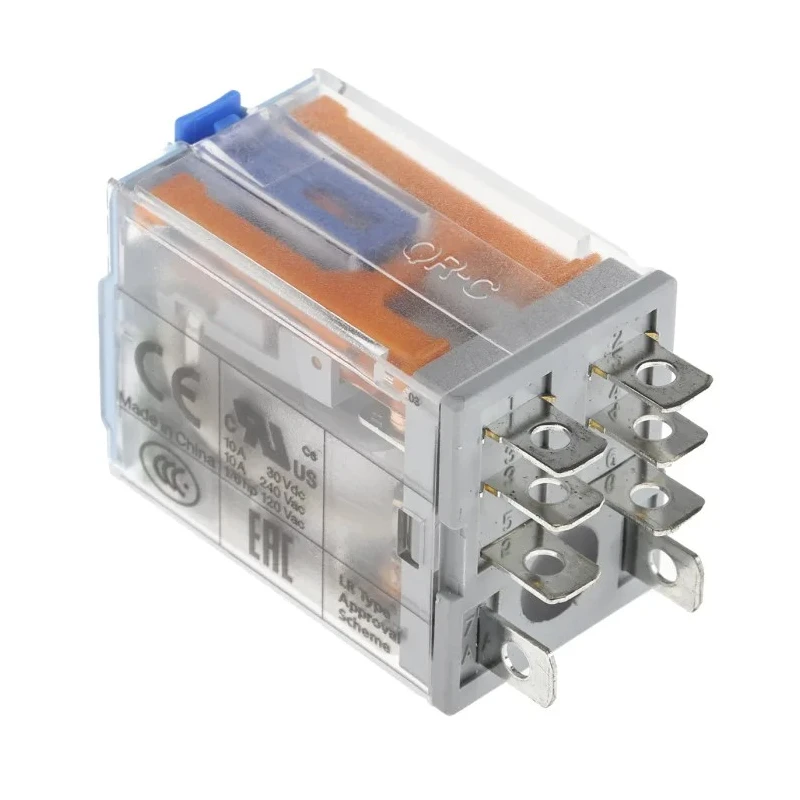

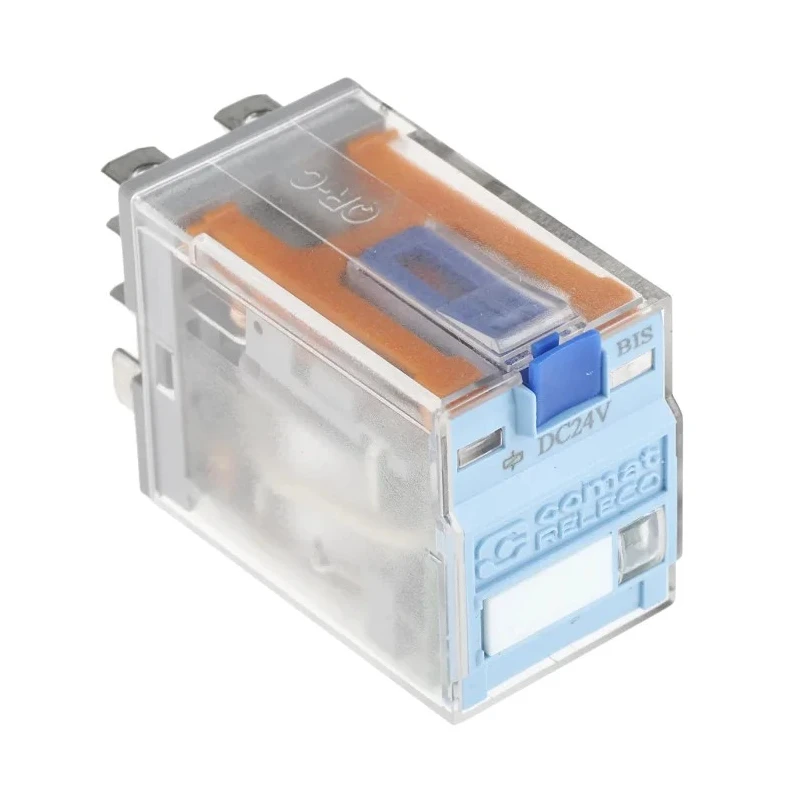

Releco PCB Power Relay 24V dc Coil 10A Switching Current DPDT C7-A20X / DC 24 V

Free Delivery in India | Lowest Global Shipping Charges

Releco PCB Power Relay 24V dc Coil 10A Switching Current DPDT C7-A20X / DC 24 V

Name: Releco PCB Power Relay 24V dc Coil 10A Switching Current DPDT C7-A20X / DC 24 V
Brand: Releco
SKU: 158985
Price: 28.1 USD
Availability: InStock



Category Power Relay Brand Releco Condition New

Specifications

Country of Origin	China
Brand	Releco
Length	28mm
Model	C7-A20X / DC 24 V
Mount Type	PCB
Contact Material	Silver Alloy
Series	C7
Maximum Operating Temperature	60°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	10A
Terminal type	Quick Connect
Standards/Approvals	CSA, EN, IEC, RoHS, UL
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Coil Resistance	594Ω
Coil Voltage	24V dc
Switching DC Voltage	30V dc
Switching AC Voltage	30V ac
Coil Power	1W

Key Features

This power relay features a double pole double throw (DPDT) contact configuration for versatile switching.
It operates with a 24V dc coil voltage and handles a maximum switching current of 10A.
The relay incorporates a quick connect terminal type for easy installation on printed circuit boards.
Coil resistance is 594 ohms with a coil power consumption of 1 watt ensuring efficient energy use.
Designed for operating temperatures between -40°C and 60°C, suitable for varying environmental conditions.
Silver alloy contact material provides excellent electrical conductivity and durability.
Includes a test button with color-coded, dual-function to push-to-test or lift-to-latch the relay status.
An LED indicator and mechanical flag improve monitoring and maintenance of the relay state.

Product Description

Releco C7-A20X / DC 24 V PCB Power Relay is a high-performance electrical component designed for use in printed circuit board applications where compact and reliable switching is required. Featuring a coil voltage of 24V dc and capable of switching currents up to 10A, this DPDT (Double Pole Double Throw) relay is built to meet rigorous industrial and commercial performance demands.

This relay is engineered with quick connect terminals enabling easy assembly and maintenance on PCB layouts. Its coil resistance of 594 ohms and coil power rating of 1 watt optimize energy consumption while maintaining stable operation over its specified temperature range of -40°C to +60°C, making it suitable for harsh environments.

Contact material consists of silver alloy, which ensures excellent conductivity and long service life under switching loads. The relay also includes practical features such as a color-coded test button that functions to either test or latch the relay, an LED indicator for status visibility, and a mechanical flag indicator for clear mechanical status feedback.

Industry certifications including CSA, EN, IEC, RoHS, and UL approvals underscore its compliance with global safety and quality standards. The relay is ideal for use in industrial automation, control panels, HVAC, instrumentation, and power management systems where dependable switching performance is critical.

This power relay has a coil voltage of 24V dc and switching current rating of 10A. DPDT contact configuration supports complex control circuits with dual pole switching. Quick connect terminal design facilitates rapid and secure PCB mounting.

Incorporates coil resistance of 594 ohms with 1 watt coil power for efficient operation. Suitable for operating temperatures from -40°C to 60°C, extending usability across climates. Silver alloy contacts offer reliable electrical performance and durability under load.

Test button and LED indicators enhance operational testing and monitoring capabilities. Certified to CSA, EN, IEC, RoHS, and UL standards ensuring safety and compliance.

This Releco PCB Power Relay is a trusted component in electrical control, automation, and instrumentation fields. EnvMart offers this relay as part of its industrial electronics and electrical components portfolio, supporting customers with reliable and standards-compliant products.
