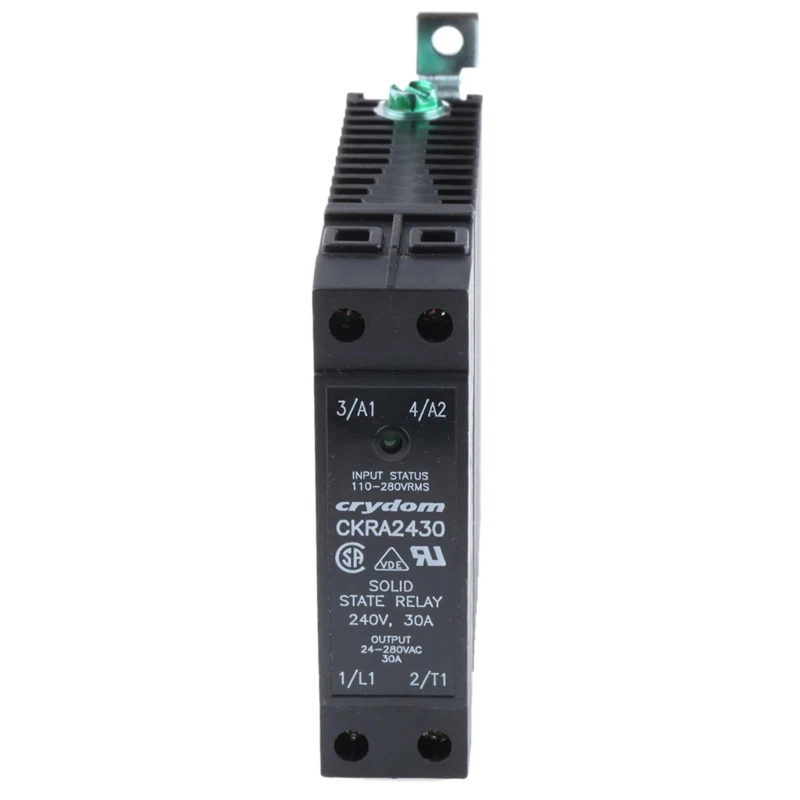

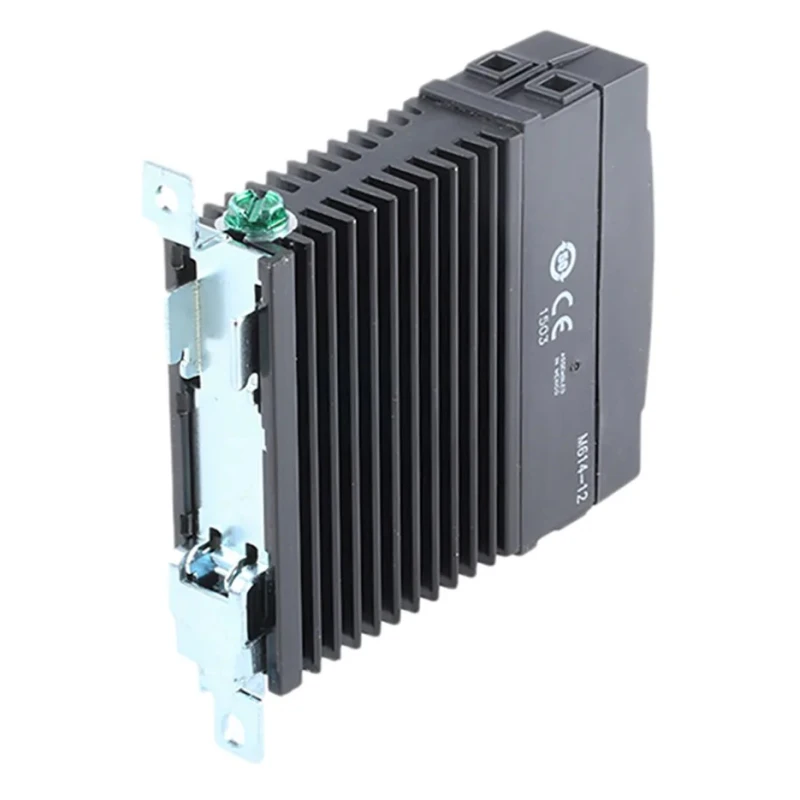

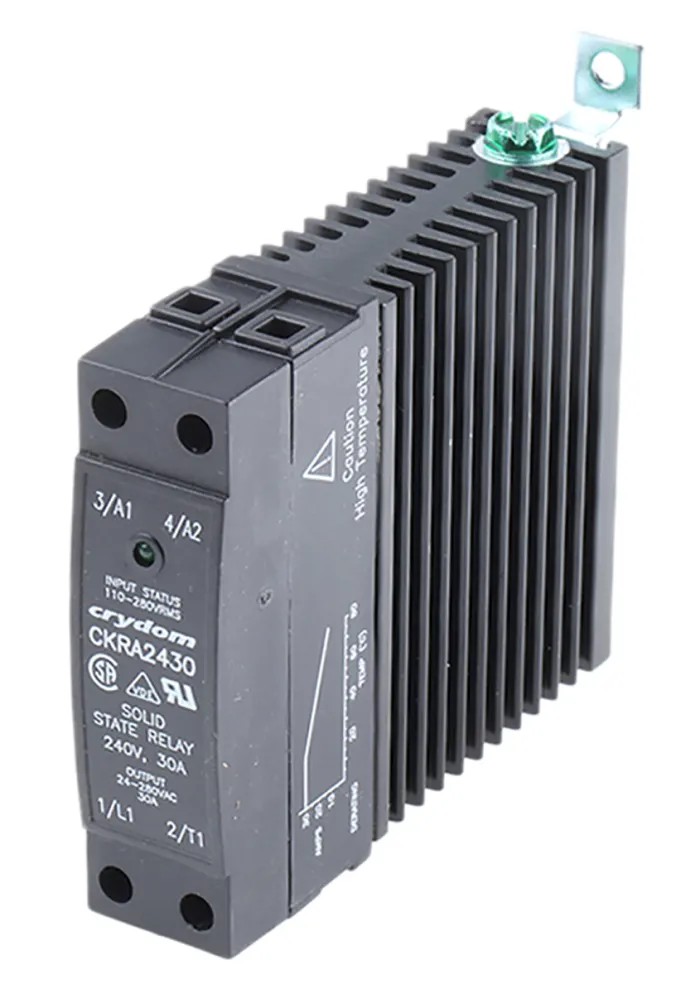

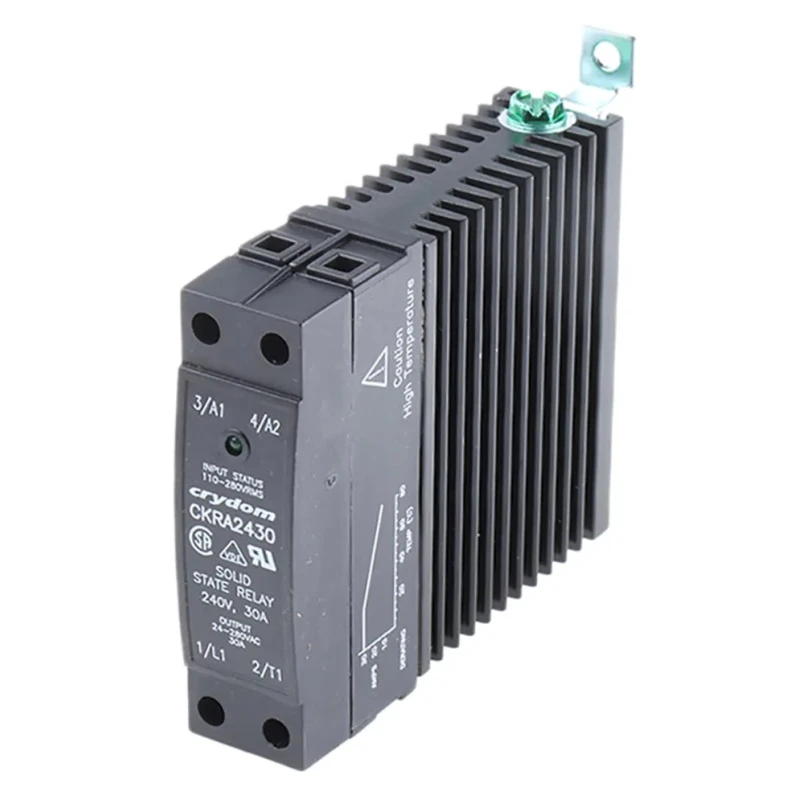

Crydom Solid State Relay, Zero Cross Switching Type, 30 A Load, DIN Rail Mount, 280 Vrms Load, 110-280 V Control CKRA2430

Crydom CKRA2430 is a solid state relay from the CKR series, designed for industrial automation and electrical control applications. It features zero cross switching technology to minimize electrical noise and prolong relay life. With a rated load current of 30 A and load voltage capacity of 280 Vrms, it is ideal for use in heavy-duty electrical circuits.

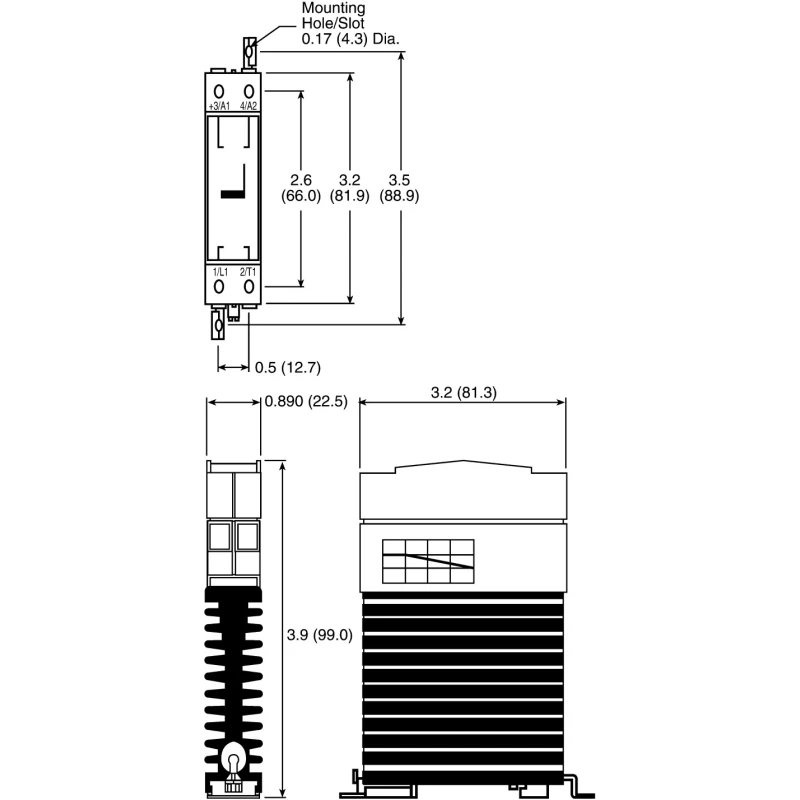

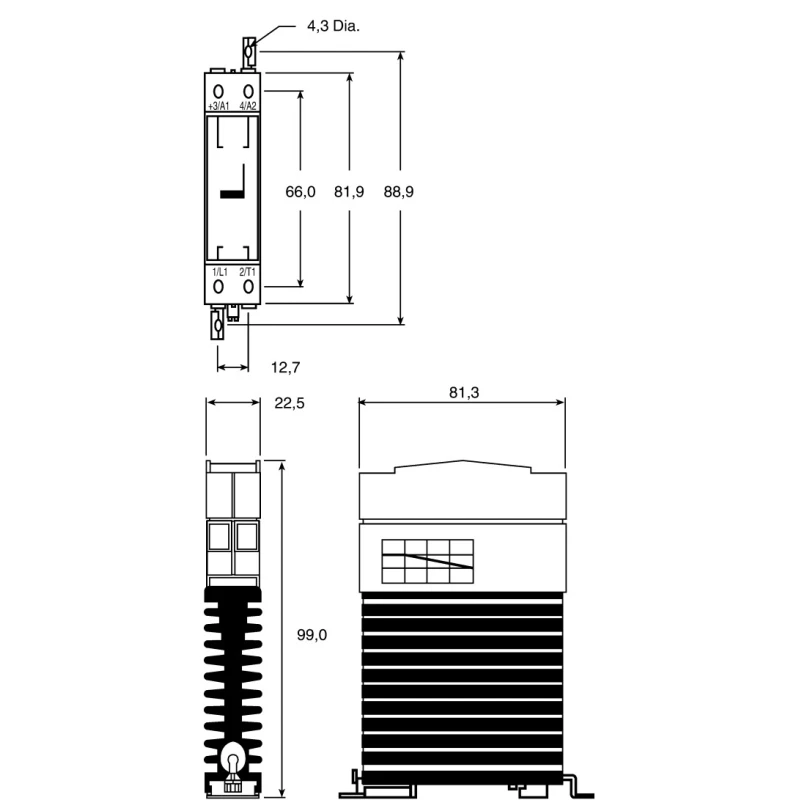

The relay mounts easily on a DIN rail, providing a compact solution with dimensions of 81.9 mm length, 22.5 mm width, and 99 mm height. It uses box clamp terminals to ensure secure and reliable connections, making installation straightforward and safe.

The unit boasts a fast response time with a turn-on time of 10 ms and turn-off time of 40 ms, keeping up with high-speed industrial processes. Its thermally conductive epoxy housing offers excellent heat resistance, allowing operation in temperatures ranging from -40°C to 80°C.

A green LED indicator clearly displays input voltage presence for easy operational monitoring. The off state leakage current is rated at 10mArms, which is important for maintaining system stability and safety. The relay uses SCR output type and complies with RoHS standards, underscoring its environmental friendliness.

This solid state relay is suitable for use in various industrial environments including manufacturing, process automation, and power distribution systems requiring reliable, maintenance-free switching. Its robust features and compact form factor make it an efficient choice for replacing mechanical relays.

Designed for heavy-duty applications with a maximum load current of 30A. Compact dimensions (81.9 x 22.5 x 99 mm) save space on DIN rails. Equipped with a green LED indicator for easy status monitoring. Thermally conductive epoxy housing ensures effective heat dissipation.

Features box clamp terminals for secure and reliable wiring. Operates in a temperature range from -40°C to 80°C for diverse environments. Zero cross switching function reduces electrical noise and increases relay lifespan.

Off state leakage current rating of 10mArms enhances safety and efficiency. Suitable for automated assembly lines, power distribution, and industrial machinery control. Manufactured in Mexico adhering to RoHS compliance standards.
