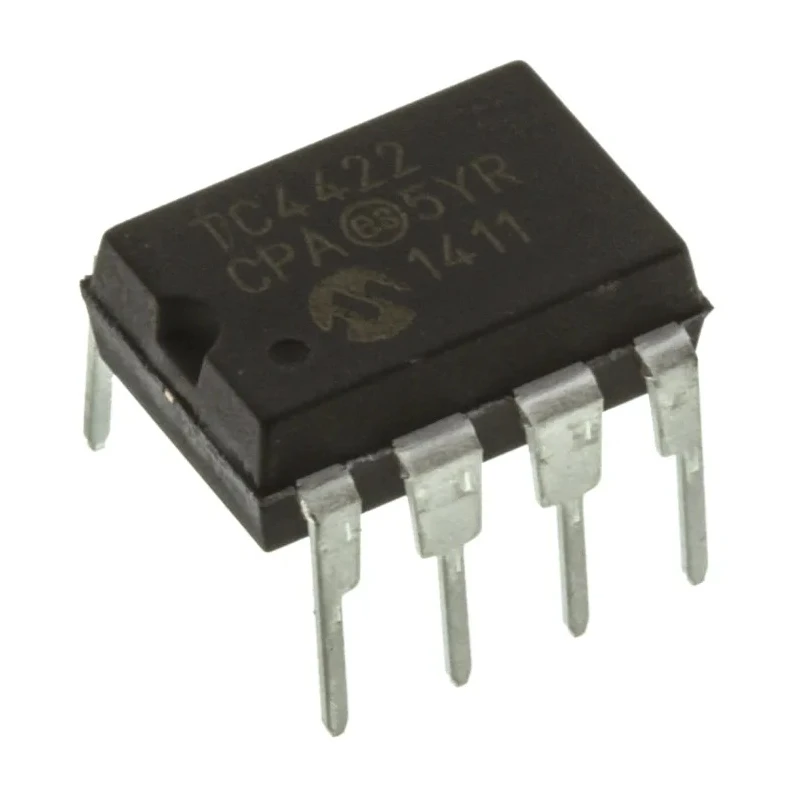

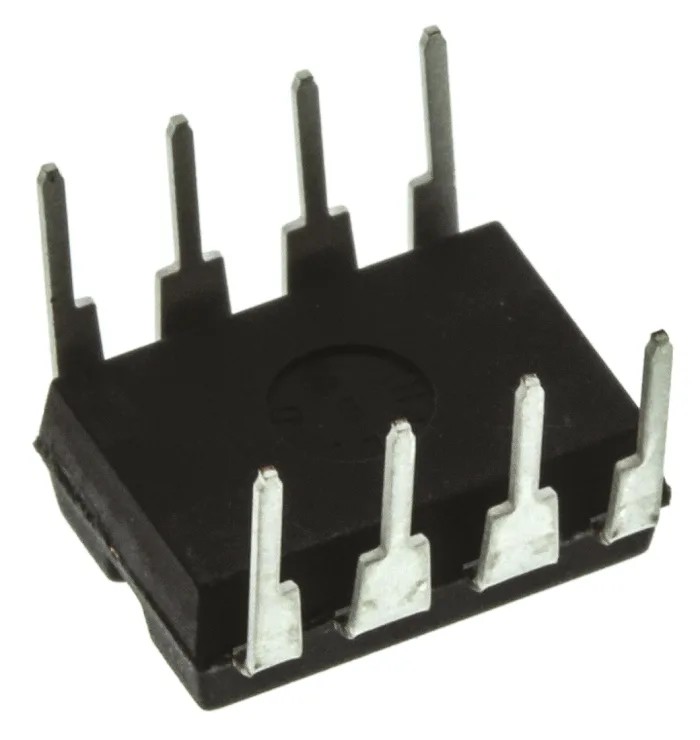

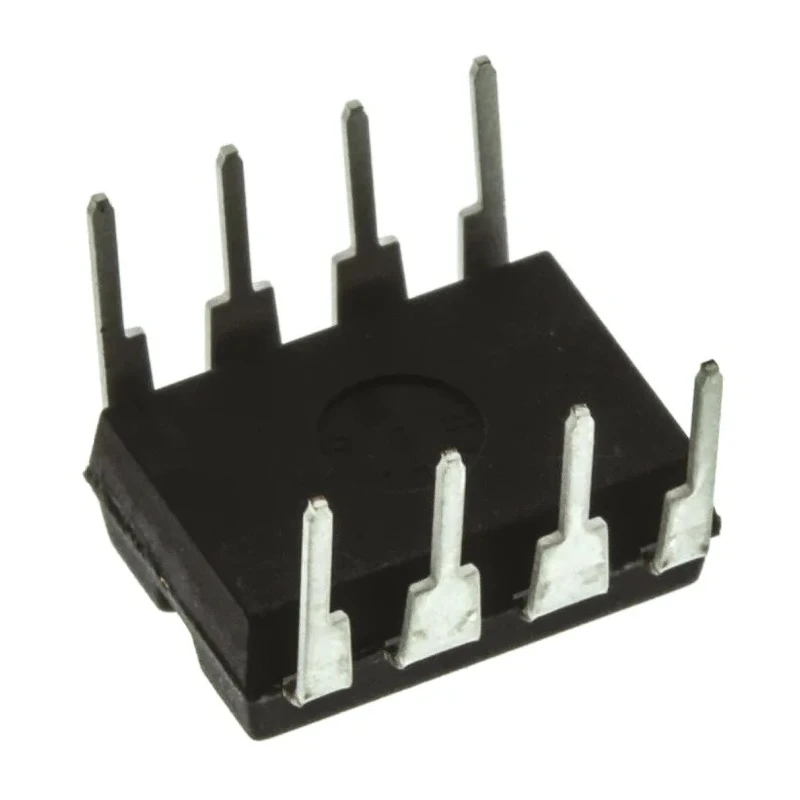

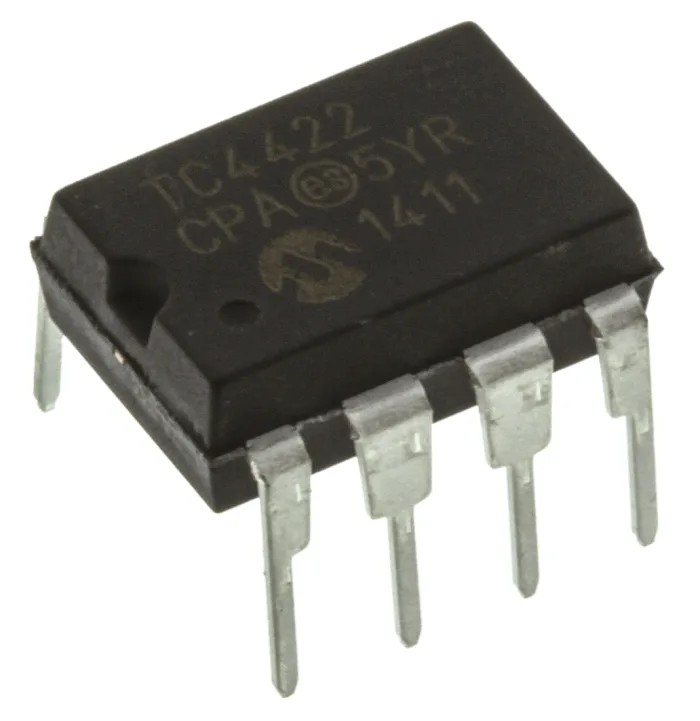

Microchip MOSFET Gate Driver 9 A 8-Pin 20V PDIP TC4422CPA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.06mm |
| Length | 10.16mm |
| Model | TC4422CPA |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | TC4422 |
| Output Current | 9A |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number of outputs | 5 |
| Rise Time | 60ns |
| Pin Count | 8 |
| Maximum Supply Voltage | 20V |
| Minimum Supply Voltage | 18V |
| Number of Drivers | 1 |
| Fall Time | 60ns |
| Driver Type | MOSFET |
| Microchip MOSFET Gate Driver 1, 9 A 8-Pin 20V, PDIPBrand | Microchip |
Key Features
- Provides a maximum output current of 9 amperes for robust driving capability.
- Equipped with a 5-output configuration to support versatile MOSFET driving applications.
- Offers fast switching with rise and fall times of 60 nanoseconds.
- Operates within a supply voltage range of 18V to 20V.
- Designed for through-hole mounting with a compact PDIP package.
- Supports a wide operating temperature range from 0°C to 70°C for reliable performance.
- Measures 10.16 mm in length, 6.6 mm in width, and 4.06 mm in height, suitable for space-conscious designs.
- Implements a single driver design compatible with various industrial applications.
Product Description
The Microchip TC4422CPA MOSFET Gate Driver offers a robust solution for driving MOSFETs with a peak output current of 9 amperes. Packaged in an 8-pin PDIP format, it facilitates straightforward through-hole mounting and is ideal for various power management integrated circuit requirements.
This driver features both rise and fall times of 60 nanoseconds, allowing for efficient high-speed switching. It operates effectively within a supply voltage range of 18V to 20V, ensuring compatibility with many industrial and electronic applications. With a single driver and five outputs, it supports diverse MOSFET configurations.
Physically compact with dimensions of 10.16 mm length, 6.6 mm width, and 4.06 mm height, the TC4422CPA fits well into space-sensitive circuit designs. It is manufactured to operate under ambient temperatures from 0°C to 70°C, ensuring dependable operation in a wide range of environmental conditions.
Though it does not meet automotive standards, this gate driver excels in industrial, manufacturing, laboratory, and general electronics component usage. Its through-hole mounting type simplifies circuit board designs and assembly processes.
Provides high peak current output for enhanced MOSFET switching. Rapid switching speeds with equal rise and fall times. Compact PDIP package facilitates easy mounting. Wide voltage and temperature operating ranges ensure reliability.
Suitable for multiple MOSFET driver applications in power management.
This Microchip MOSFET Gate Driver TC4422CPA is a trusted choice for electronics engineers focusing on power and semiconductor control solutions. Explore more Microchip components and industrial electronics products within EnvMart for your technical projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TC4422CPA provides a maximum output current of 9 amperes, allowing for robust driving capability of MOSFETs.
It operates within a supply voltage range of 18V to 20V, ensuring compatibility with various applications.
The TC4422CPA features rise and fall times of 60 nanoseconds, enabling fast switching performance.
This model is equipped with five outputs, allowing for versatile MOSFET driving configurations.
The dimensions of this model are 10.16 mm in length, 6.6 mm in width, and 4.06 mm in height, making it suitable for space-conscious designs.
It operates within a wide temperature range from 0°C to 70°C, ensuring reliable performance in various environments.
This model is designed for through-hole mounting, which simplifies circuit board designs and assembly processes.
No, the TC4422CPA does not meet automotive standards but is suitable for industrial, manufacturing, laboratory, and general electronics applications.
The TC4422CPA comes in an 8-pin PDIP package, facilitating easy mounting in various circuit designs.
This model implements a single driver design, which supports a variety of MOSFET driving applications.
The TC4422CPA is part of the TC4422 series, which includes various MOSFET gate driver solutions from Microchip.
It is designed for various power management integrated circuit requirements, making it suitable for industrial and electronic applications.
