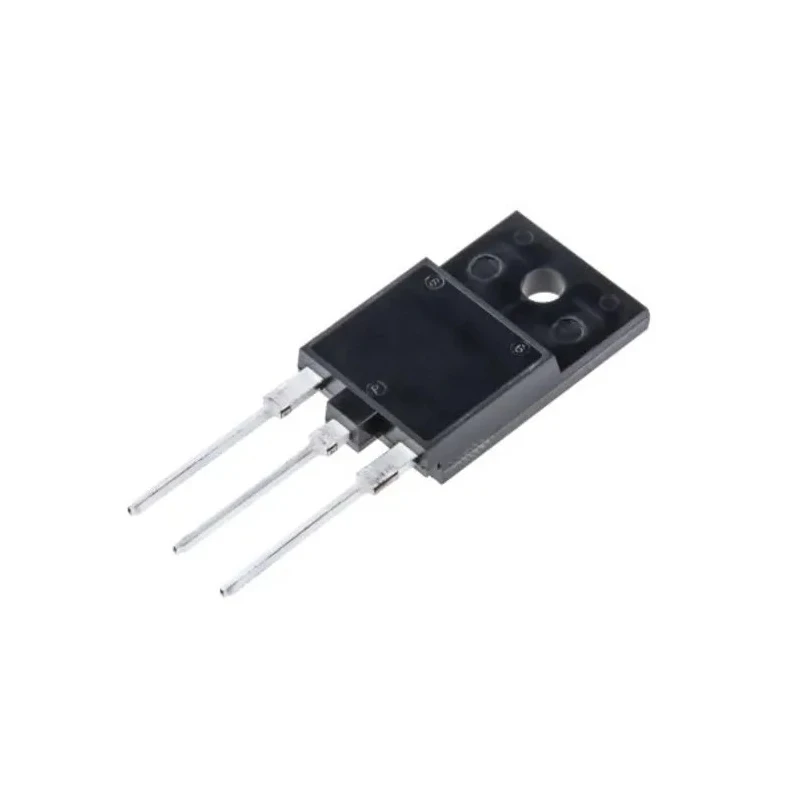

STMicroelectronics Through Hole 3-Pin TRIAC 600 V Rated Average On-State Current 26A TO-3PF Package T2650-6PF

STMicroelectronics T2650-6PF is a snubberless TRIAC semiconductor device housed in a TO-3PF through hole package, engineered for general purpose AC switching applications. Rated for a repetitive peak reverse voltage of 600 V and an average on-state current of 26 A, this TRIAC is well suited for industrial use where high surge current tolerance and high immunity are essential.

The device features a low gate trigger voltage of 1.3 V and a maximum gate trigger current of 50 mA, facilitating efficient triggering control. It is capable of handling surge currents up to 270 A, supporting demanding transient conditions. The TRIAC operates over a broad temperature range from -40°C to 125°C, ensuring reliability in harsh environments.

With its snubberless design and V0 flammability package resin, the T2650-6PF meets safety and performance standards. It is RoHS compliant, reflecting commitment to environmental safety. The single configuration and 3-pin design provide installation flexibility in various industrial and commercial AC switching systems.

This TRIAC is suitable for applications such as industrial motor control, lighting dimming, heater control, and other AC power control systems up to approximately 3 kW at 120 VAC when used with an appropriate heatsink.

Technical highlights include a compact height of 44.4 mm and a length of 15.7 mm, optimized for PCB layouts and thermal management. The TRIAC supports a maximum holding current of 75 mA to maintain conduction stability. The peak gate power dissipation is 1 W, balancing efficiency and robustness.

Its rugged design supports electrical and thermal stresses in industrial environments.

EnvMart offers this reliable STMicroelectronics T2650-6PF TRIAC under its Semiconductor category, enabling engineers and technicians to source high-quality components for robust AC switching applications.
