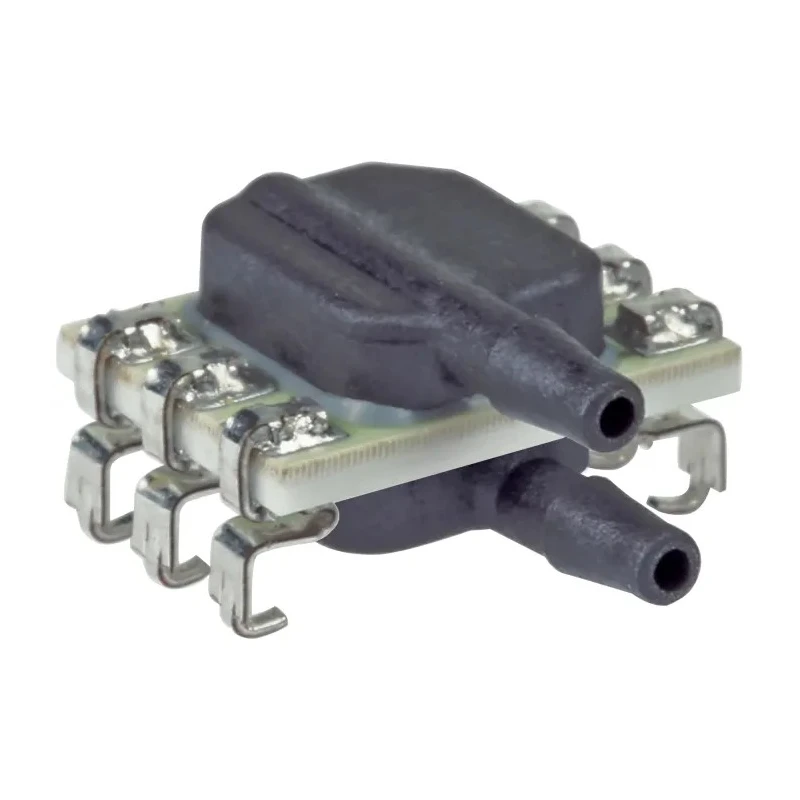

Honeywell Technologies ABPMRRV060MGAA5 Gauge Pressure Sensor Board Mount SMT 60 mbar ±0.25% Accuracy 5V ABPMRRV060MGAA5
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 60 mbar |
| Height | 10.63mm |
| Length | 7.3mm |
| Model | ABPMRRV060MGAA5 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 6.3mm |
| Mount Type | Board |
| Series | ABP |
| Maximum Operating Temperature | +85°C |
| Port Type | Dual Radial Barbed |
| Package Type | SMT |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | BPA Free, LFGB, NSF-169 |
| Pin Count | 6 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -0.3V |
| Minimum Operating Pressure | 0mbar |
| Maximum Overload Pressure | 2000mbar |
Key Features
- This piezoresistive sensor operates from -40°C to +85°C for robust performance in harsh conditions.
- It supports board mounting with a compact SMT package containing 6 pins for easy integration.
- The sensor supports single supply voltages up to 5V and has a maximum overload pressure of 2000 mbar.
- It features dual radial barbed ports and is suitable for dry gases or liquid media with gel protection.
- High update rates include 2 kHz digital and 1 kHz analogue outputs for real-time measurement.
- The device includes an onboard ASIC for temperature compensation and calibration.
- With ISO 9001 automotive standard compliance, it is ideal for HVAC, medical ventilators, pneumatic control, and commercial appliance pressure monitoring.
Product Description
Honeywell ABPMRRV060MGAA5 is a high-precision gauge pressure sensor designed for board mounting in electronic assemblies. This SMT device measures pressures up to 60 mbar relative to ambient with an accuracy of ±0.25%, making it suitable for applications requiring reliable low-range pressure sensing.
The sensor employs a piezoresistive element combined with an integrated ASIC providing calibrated and temperature compensated outputs. It supports single-supply operation with voltages up to 5V and delivers fast response through 2 kHz digital and 1 kHz analogue update rates.
Featuring a compact footprint (10.63 mm height, 7.3 mm length, and 6.3 mm width) and 6 pins, it mounts easily on standard PCBs. The dual radial barbed port design allows use with dry gases or liquids when gel protected, expanding its versatility in environments exposed to condensation or non-corrosive fluids.
This sensor is rated for rugged industrial environments, operating from -40°C to 85°C. Its overload pressure capability of 2000 mbar ensures durability under pressure spikes. The unit meets BPA Free, LFGB, NSF-169 environmental standards and ISO 9001 automotive quality protocols.
Typical applications include ventilator and patient monitoring, HVAC differential pressure measurement, pneumatic valve position sensing, and commercial appliance pressure tracking. It is suited for industrial, medical, laboratory, HVAC, and manufacturing contexts that demand precise pressure feedback.
±0.25% full scale accuracy for improved measurement fidelity. Robust operating temperature range from -40°C to +85°C. High update rates support real-time system control. Compact SMT package for seamless integration into electronic boards.
Supports dry gases and liquid media with protective gel covering. Compliance with automotive and strict environmental standards. Onboard ASIC for temperature compensation and calibration. Explore our selection of precision Pressure Sensor ICs and components at EnvMart for industrial, HVAC, medical, and commercial instrumentation needs.
