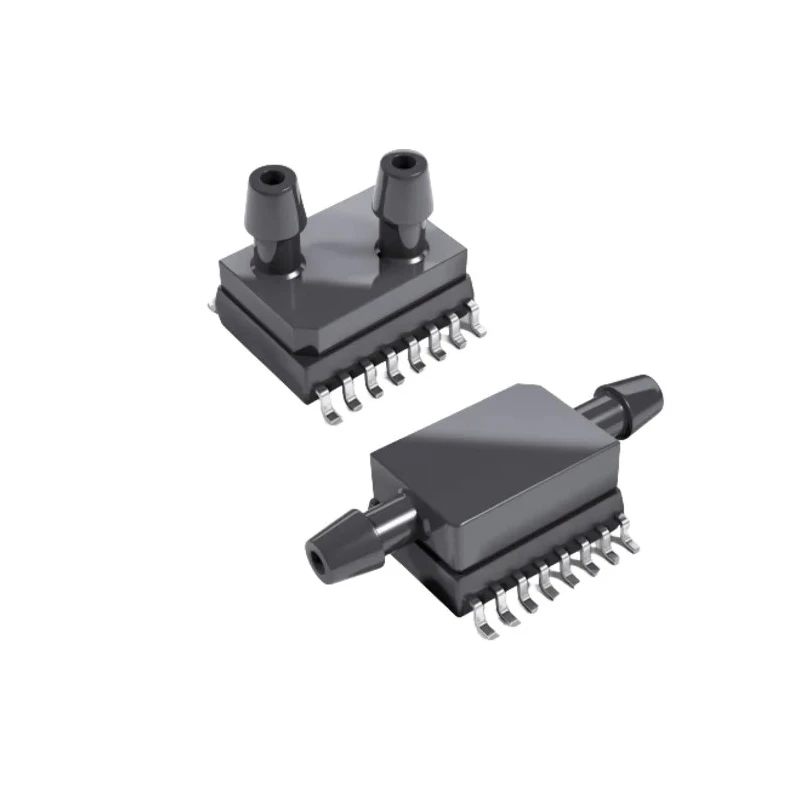

TE Connectivity Differential Pressure Sensor Surface Mount 16-Pin SOIC 3-5V Operating Voltage SM9333-BBE-S-125-000
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Maximum Operating Pressure | 125 pA |
| Height | 9.32mm |
| Length | 10.26mm |
| Model | SM9333-BBE-S-125-000 |
| Sensor Type | Differential Pressure Sensor |
| Mount Type | Surface |
| Series | SM9333-BBE-S-125-000 |
| Maximum Operating Temperature | 85°C |
| Port Type | Dual Horizontal |
| Package Type | SOIC |
| Minimum Operating Temperature | -20°C |
| Pin Count | 16 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3V |
| Minimum Operating Pressure | -125Pa |
| Maximum Overload Pressure | 7kPa |
Key Features
- Offers sensitive differential pressure sensing with a range of -125 Pa to +125 Pa.
- Operates on a minimum supply voltage of 3V and a maximum of 5V.
- Maximum pressure overload up to 7 kPa for durability.
- Integrated MEMS pressure transducer and CMOS mixed signal processing for accurate results.
- Temperature compensated from -20°C to +85°C for stable performance.
- Dual horizontal ports facilitate precise airflow measurement.
- Designed for medical applications such as CPAP, sleep apnea monitoring, ventilators, and gas flow instrumentation.
Product Description
TE Connectivity SM9333-BBE-S-125-000 is an advanced differential pressure sensor designed for precise ultra-low pressure measurement with a digital, fully conditioned output. It features MEMS pressure transducer technology combined with CMOS mixed signal processing, ensuring accurate multi-order pressure and temperature compensation.
The sensor operates within a pressure range of -125 Pa to +125 Pa, with a maximum overload pressure rating of 7 kPa, making it robust for various industrial and medical applications. Its operating voltage range is 3V to 5V, and the device functions reliably across temperatures from -20°C to +85°C.
This component is surface mounted in a 16-pin SOIC package measuring 10.26 mm in length and 9.32 mm in height. The dual horizontal ports enable precise differential pressure detection useful in airflow measurement and other sensitive instrumentation.
Industry applications include continuous positive airway pressure (CPAP) devices, sleep apnea monitoring systems, ventilators, gas flow instrumentation, air flow measurement, and other medical and industrial monitoring systems.
Provides pressure calibrated and temperature compensated output for reliable sensing. Utilizes MEMS and CMOS technologies to deliver high precision digital outputs. Compact and durable surface mount package for PCB integration.
Wide compensated temperature range suited for harsh environments. Applicable in medical respiratory and industrial airflow systems.
As a trusted product from TE Connectivity, this sensor is ideal for use in electronics, industrial, and medical device manufacturing. Browse EnvMart's extensive catalog for more advanced sensor components and pressure measurement solutions.
Explore more products in our Pressure Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor operates within a voltage range of 3V to 5V.
It measures differential pressure within a range of -125 Pa to +125 Pa.
The maximum overload pressure rating is 7 kPa.
This model has a length of 10.26 mm and a height of 9.32 mm.
It features dual horizontal ports for precise differential pressure detection.
The sensor operates reliably across a temperature range of -20°C to +85°C.
It comes in a surface mount 16-pin SOIC package.
This sensor is designed for medical applications such as CPAP devices, sleep apnea monitoring, ventilators, and gas flow instrumentation.
It utilizes MEMS pressure transducer technology combined with CMOS mixed signal processing for accurate results.
Yes, it provides pressure calibrated and temperature compensated output for reliable sensing.
The product is manufactured in the United States.
It has a wide compensated temperature range, making it suitable for use in harsh environments.
