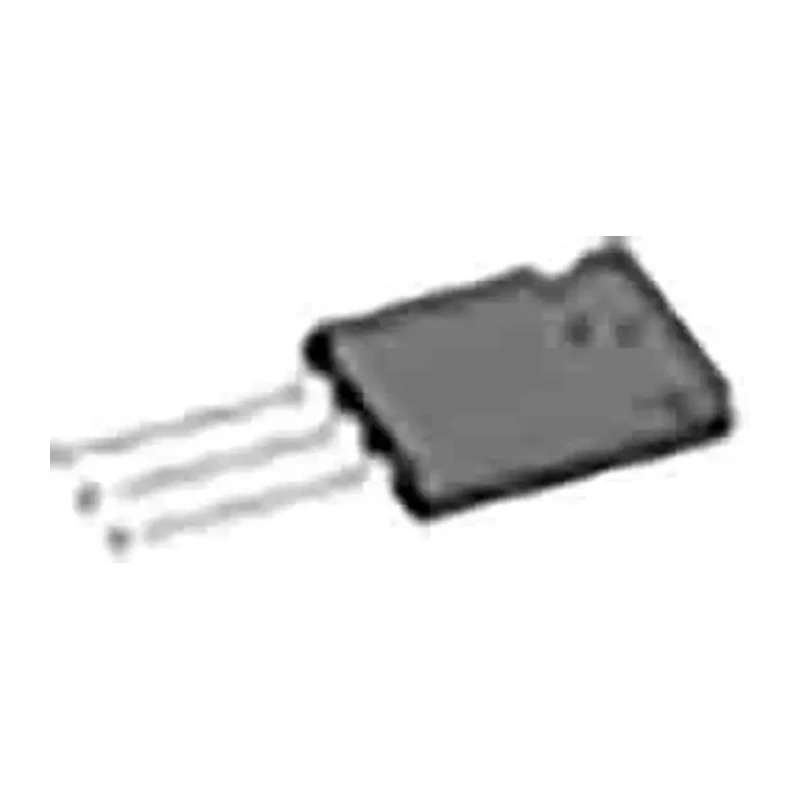

Littelfuse 1600 V 10 A Low Leakage Switching Diode 3-Pin ISO247 DMA10P1600HR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Littelfuse |
| Height | 41.75mm |
| Length | 16.24mm |
| Model | DMA10P1600HR |
| Width | 5.3mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | ISO247 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Diode Configuration | Single |
| Rectifier Type | Low Leakage |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 130A |
| Maximum Forward Voltage Vf | 1.18V |
Key Features
- Surface mount 3-pin ISO247 package ensures compact installation.
- Low leakage current design improves efficiency and reliability.
- Maximum forward voltage of 1.18 V reduces power loss.
- Operates in temperature ranges from -55°C to 150°C.
- Peak forward surge current rating of 130 A for transient protection.
- Robust planar passivated chip design for improved thermal behavior.
- High commutation robustness suitable for single and three phase bridge configurations.
- Ideal for industrial power rectification and switching applications.
Product Description
Littelfuse DMA10P1600HR is a high-performance switching diode designed for power rectification uses in industrial and electronic systems.
This diode features a maximum continuous forward current of 10 amperes and peak reverse repetitive voltage of 1600 volts. It uses a surface mount ISO247 package with a 3-pin configuration for easy PCB integration.
The diode is characterized by a low leakage current and low forward voltage drop of 1.18 volts, improving efficiency and reducing thermal losses during operation. Its peak forward surge current rating of 130 amperes provides robustness against transient currents.
The device operates reliably over a wide temperature range from -55°C to 150°C, making it suitable for harsh industrial environments. Its planar passivated chip technology ensures improved thermal behavior, allowing for efficient heat dissipation.
This Littelfuse switching diode is suitable for single and three-phase bridge rectifier configurations. With very low peak reverse current of only 10 microamperes, it ensures long-term stability and minimized power waste.
Surface mount 3-pin ISO247 package for compact assembly. Low leakage current minimizes power loss. High surge current tolerance for protection against current spikes. Wide operating temperature range for industrial use. Improved thermal characteristics for reliability.
Low forward voltage drop enhances efficiency. High commutation robustness for switching applications. Single diode configuration suitable for rectification. No automotive certification, but reliable for general electronics.
This Littelfuse diode is ideal for power electronics manufacturing, industrial automation, and electronic component supply bureaus. Choose from EnvMart’s extensive Schottky diode range for all your electronic solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 10 amperes.
The diode operates reliably over a temperature range from -55°C to 150°C.
The maximum forward voltage drop is 1.18 volts, which helps reduce power loss.
The peak forward surge current rating for this diode is 130 amperes.
It uses a surface mount ISO247 package with a 3-pin configuration for easy PCB integration.
The diode configuration is single, suitable for rectification applications.
The dimensions are 41.75 mm in height, 16.24 mm in length, and 5.3 mm in width.
This diode is ideal for industrial power rectification and switching applications.
It is classified as a low leakage rectifier, which improves efficiency and reliability.
The country of origin for this diode is India.
