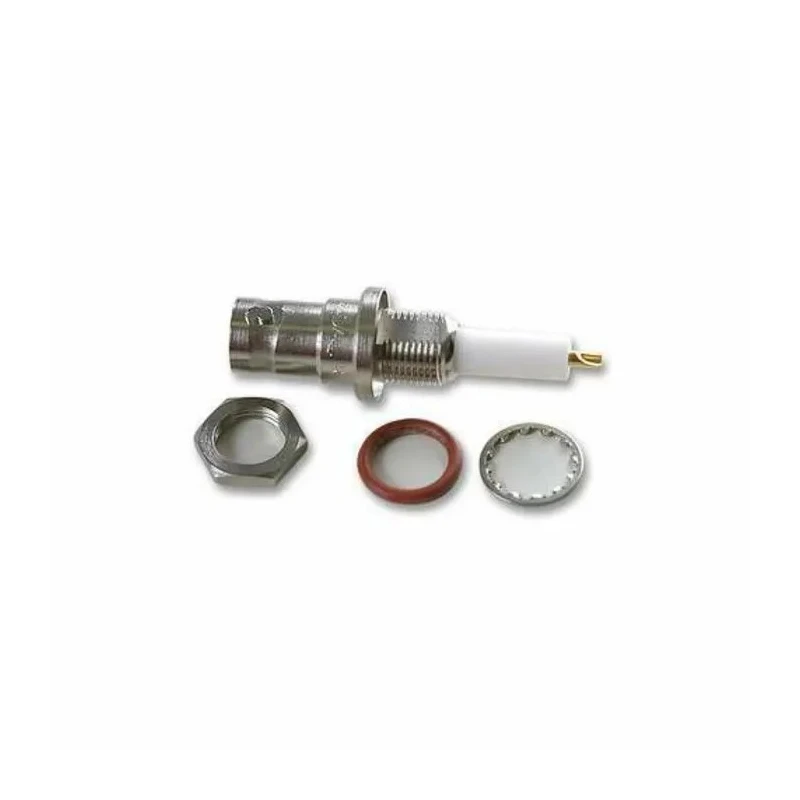

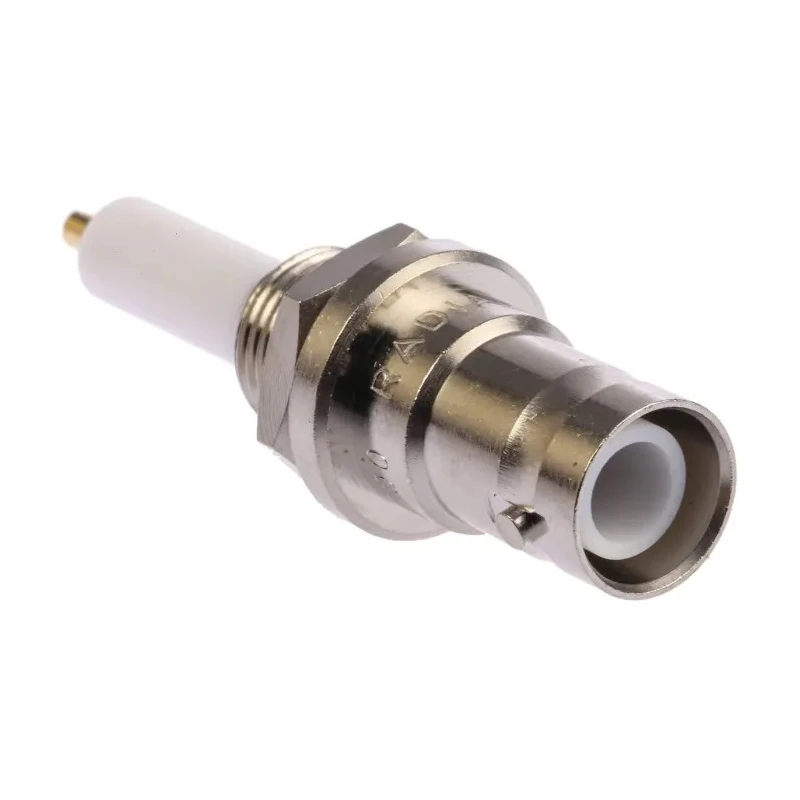

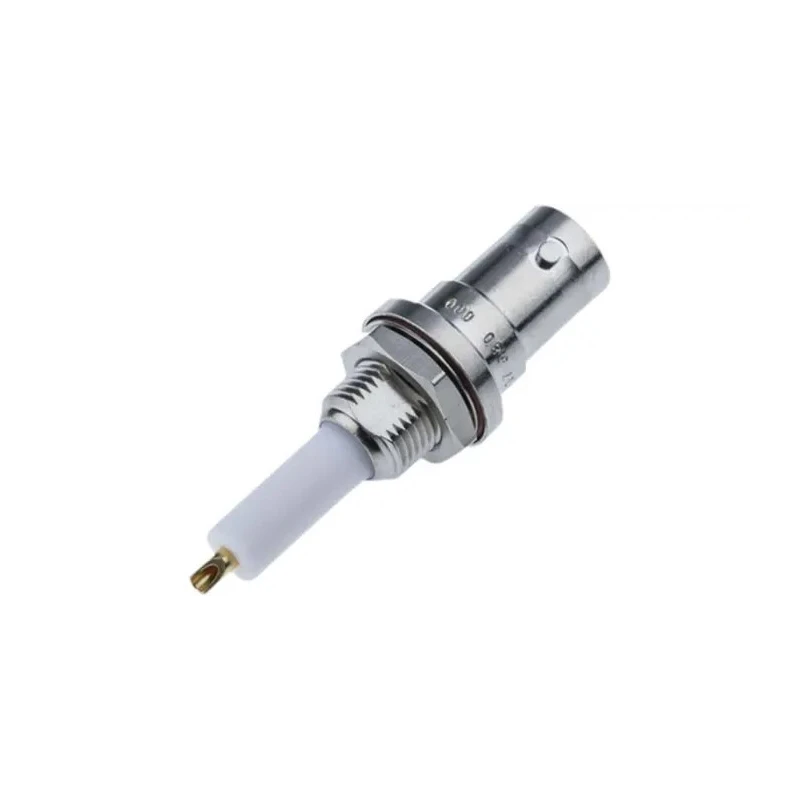

Radiall RP-SHV Series Coaxial Connector Panel Mount Male SHV 50 Ω Straight Body Solder Cup R317580000
Specifications
| Country of Origin | France |
|---|---|
| Size | Standard |
| Brand | Radiall |
| Orientation | Straight |
| Model | R317580000 |
| Mount Type | Panel Mount |
| Operating Frequency | 2GHz |
| Contact Material | Beryllium Copper |
| Series | RP-SHV |
| Termination Type | Solder Cup |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Reverse |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SHV |
| Body Plating | Nickel |
Key Features
- This connector is designed for RF applications requiring a reliable 50 Ω impedance.
- The panel mount design accommodates a maximum panel thickness of 5mm.
- Nickel-plated body ensures corrosion resistance and durability.
- Gold-plated beryllium copper contacts provide excellent conductivity and signal integrity.
- Operates reliably between -65°C and 165°C temperature range.
- Features a bayonet fitting with a silicone gasket for a sealed bulkhead connection.
- Suitable for operating frequencies up to 2 GHz for high-frequency RF signals.
- Panel cutout size requirement is 9.6 x 8.9 mm for proper installation.
Product Description
Radiall R317580000 RP-SHV Series Coaxial Connector is a panel mount male SHV type designed for 50 Ω impedance applications. It features a straight body configuration with a solder cup termination, ideal for RF and electronic component use, ensuring excellent connectivity and durability.
This connector is built with a nickel-plated body that provides robust corrosion resistance and a professional finish suitable for demanding industrial environments. The gold-plated beryllium copper contacts enhance electrical performance by reducing contact resistance and providing long-lasting reliability.
Designed for panel mount installation, it supports a maximum panel thickness of 5 mm and requires a precise panel cutout of 9.6 x 8.9 mm. The bayonet fitting combined with a silicone gasket offers a secure and sealed bulkhead connection, protecting the interface from environmental factors.
The RP-SHV connector operates within a wide temperature range of -65°C to 165°C, suitable for various industrial, laboratory, and telecommunications applications. It supports operating frequencies up to 2 GHz, making it suitable for high-frequency signal transmission.
This product is manufactured in France and adheres to quality standards ensuring consistent performance in critical applications. Its reverse polarity and male contact configuration are designed for compatibility with complementary components in RF systems.
This connector is designed for RF applications requiring a reliable 50 Ω impedance. The panel mount design accommodates a maximum panel thickness of 5mm. Nickel-plated body ensures corrosion resistance and durability. Gold-plated beryllium copper contacts provide excellent conductivity and signal integrity.
Operates reliably between -65°C and 165°C temperature range. Features a bayonet fitting with a silicone gasket for a sealed bulkhead connection. Suitable for operating frequencies up to 2 GHz for high-frequency RF signals.
Panel cutout size requirement is 9.6 x 8.9 mm for proper installation. Discover more high-quality Coaxial Connectors and electronic components at EnvMart to enhance your industrial and electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 165°C.
This connector is designed for a reliable 50 Ω impedance.
It supports operating frequencies up to 2 GHz, suitable for high-frequency RF signals.
The contacts are made of gold-plated beryllium copper, which enhances conductivity and signal integrity.
The panel cutout size requirement is 9.6 x 8.9 mm for proper installation of this connector.
It features a solder cup termination type, which is ideal for secure connections.
The minimum operating temperature is -65°C, allowing it to function in extreme conditions.
This model is designed for panel mount installation.
The body is nickel-plated, providing corrosion resistance and durability.
Yes, it features a bayonet fitting with a silicone gasket for a sealed bulkhead connection.
This product is manufactured in France.
The connector has a male contact configuration, designed for compatibility with complementary components.
