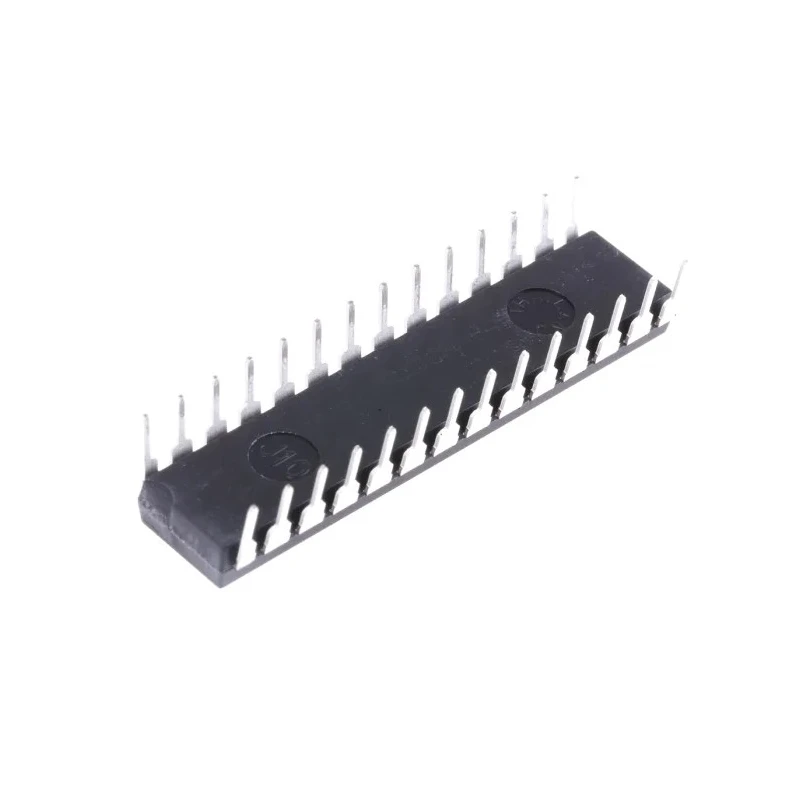

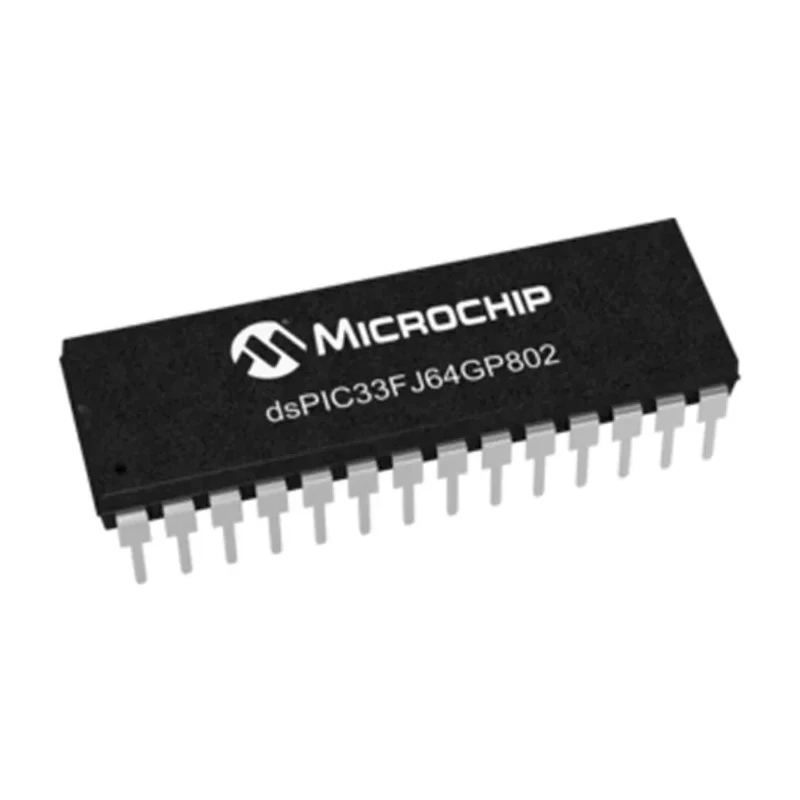

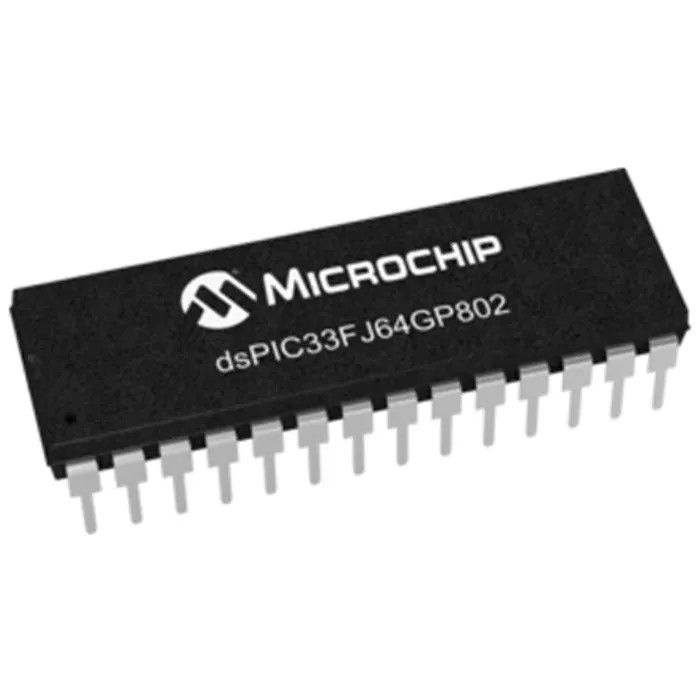

Microchip 16 bit Digital Signal Processor 40 MIPS 64kB FLASH 28-Pin SPDIP DSPIC33FJ64GP802-I/SP

Microchip DSPIC33FJ64GP802-I/SP is a 16 bit Digital Signal Processor delivering a high-speed 40 MIPS processing capability with an integrated 64kB FLASH memory. Packaged in a 28-Pin SPDIP through-hole mounting type, this microcontroller offers robust performance for embedded control systems requiring precise and efficient data processing.

This DSPIC33F device adopts a RISC instruction set architecture optimized for digital signal controller (DSC) applications, including digital audio, speech processing, and motor control systems. Its 70 MIPS device million instructions per second capability supports complex algorithms and high-speed data handling.

The processor includes a 16kB RAM for efficient data storage and rapid access, enhancing processing speed for time-critical operations. Designed to operate within a supply voltage from 3V to 3.6V, it ensures compatibility with low voltage designs and helps in reducing power consumption.

The microcontroller integrates several advanced peripherals including a 12-bit ADC with 10 input channels, 4 PWM units with 16-bit resolution, and 5 timers with 16-bit resolution, enabling robust signal acquisition and control capabilities. The device’s temperature operating range extends from -40°C to 85°C, making it suitable for industrial and automotive applications where environmental conditions vary widely.

This model complies with the AEC-Q100 automotive standard, attesting its reliability and suitability for automotive electronics requiring high quality and durability. The compact dimensions (approximately 35.56 mm length, 3.81 mm height, and 0.295 inch width) facilitate easy incorporation into PCBs designed for embedded systems.

Applications of this DSP include precision motor control, digital power supplies with high-speed PWM and ADC modules, and digital filter implementations in industrial, automotive, and consumer electronics.

Engineers and developers benefit from comprehensive technical documents, design resources, and support available for Microchip’s dsPIC33F family, facilitating efficient prototyping and deployment of advanced digital signal processing solutions.

High-performance 16 bit RISC architecture with 70 MIPS device instructions. 64kB program memory with FLASH technology for reliable storage. Wide supply voltage range from 3V to 3.6V ensures stable operations. Comprehensive peripherals including 10 ADC channels, 4 PWM channels, and 5 timers.

Operating temperature range from -40°C to 85°C suitable for harsh environments. Automotive grade AEC-Q100 qualification for quality assurance. Through Hole mount type with a compact 28-pin SPDIP package for easy PCB integration.

ADC resolution of 12 bit and PWM resolution of 16 bit for precise control. Timer resolution of 16 bit enhances timing accuracy. Single core design optimized for digital signal processing applications. Explore more Microchip Digital Signal Processors and microcontrollers at EnvMart to support your industrial, automotive, and embedded electronics projects.
