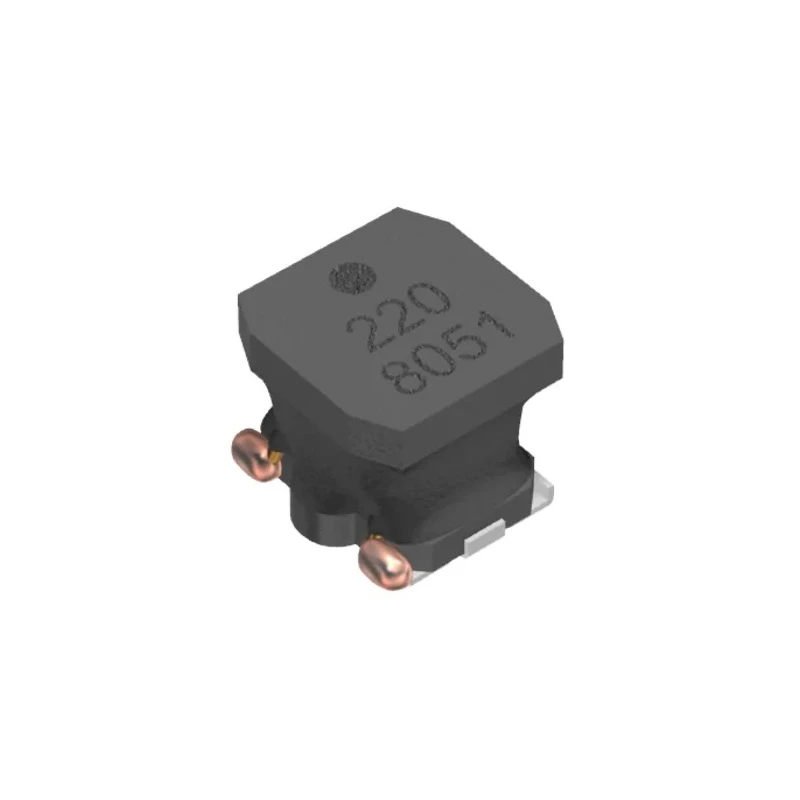

TDK 5045 Shielded Wirewound Surface Mount Inductor with Ferrite Core 22 μH ±20% 2A Idc VLS5045EX-220M-H
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | TDK |
| Height | 4.5mm |
| Length | 5mm |
| Model | VLS5045EX-220M-H |
| Depth | 5.3mm |
| Packaging | Tape & Reel |
| Series | VLS-EX-H |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 5045 |
| Maximum DC Current | 2A |
| Maximum DC Resistance | 162.5mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Shielded |
| Automotive Standard | AEC-Q200 |
Key Features
- This inductor features a high magnetic shield construction using ferrite magnetic material compatible with high-density mounting.
- The 5045 package case measures 5mm length, 4.5mm height, and 5.3mm depth for compact surface mounting.
- It has a maximum DC resistance of 162.5mΩ, ensuring efficient current flow with low loss.
- Designed to meet automotive AEC-Q200 standards, it supports operating temperatures from -40°C to 125°C.
- Suitable for automotive applications such as ECM, airbags, headlights, electronic power steering, meters, and ABS systems.
- RoHS compliant with ferrite core providing durability and reliability in power circuit applications.
Product Description
TDK VLS5045EX-220M-H is a shielded wirewound surface mount inductor incorporating a ferrite core, offering a nominal inductance of 22 μH with ±20% tolerance measured at 100kHz frequency. This component supports a maximum DC current of 2A and is housed in a compact 5045 package suitable for surface mounting on PCBs.
The design features high magnetic shielding achieved through ferrite magnetic material, promoting compatibility with high-density circuit boards and minimizing electromagnetic interference. The inductor’s optimized ferrite core shape enhances current capacity and decreases DC resistance to 162.5mΩ, which improves power efficiency and thermal performance.
Operating within an automotive standard AEC-Q200, it withstands harsh temperature environments from -40°C up to 125°C, making it highly reliable for critical automotive electronic applications including Engine Control Modules (ECM), airbags, vehicle headlights, electronic power steering, analog and digital meters, and Anti-lock Braking Systems (ABS).
The product offers a surface mount termination style to enable automated PCB assembly processes and is RoHS compliant, ensuring environmental safety and regulation conformity. High magnetic shield wirewound ferrite core for power circuit applications.
Compact 5mm x 4.5mm x 5.3mm package size enabling high-density mounting. Low maximum DC resistance of 162.5mΩ for efficiency. Reliable operation across wide automotive temperature range (-40°C to 125°C). Conforms to automotive AEC-Q200 qualification for automotive electronics.
RoHS compliant ensuring environmentally safe manufacturing.
This TDK surface mount inductor is ideal for industrial, automotive electronics manufacturing, embedded power supplies, and electronic instrumentation requiring compact, high-performance inductive components.
Explore more Surface Mount Inductors and electronic components on EnvMart for your industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this model is 22 μH with a tolerance of ±20%.
It supports a maximum DC current of 2A.
The dimensions of the package are 5mm in length, 4.5mm in height, and 5.3mm in depth.
The maximum DC resistance is 162.5 mΩ, which helps ensure efficient current flow.
It operates within a temperature range of -40°C to 125°C.
Yes, it is compliant with the automotive AEC-Q200 standards and RoHS regulations.
This inductor features a shielded construction using a ferrite core.
It utilizes a surface mount termination style, suitable for automated PCB assembly.
It is packaged in tape and reel format.
It is suitable for automotive applications such as ECM, airbags, headlights, and ABS systems.
The core material is ferrite, which contributes to its magnetic shielding capabilities.
This inductor belongs to the VLS-EX-H series.
