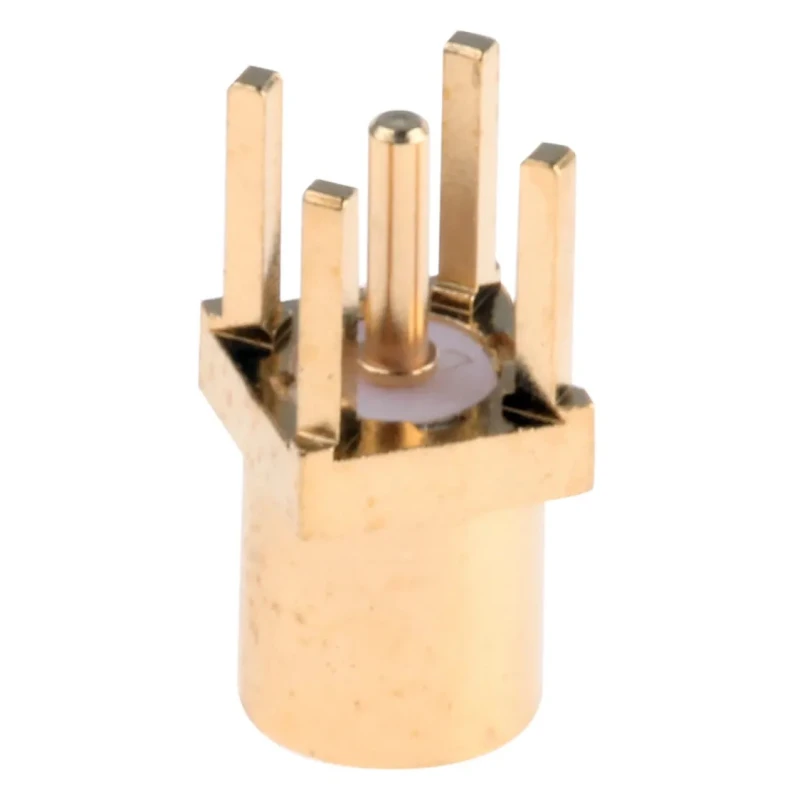

Radiall MMCX Series Coaxial Connector Through Hole Female MCX 50 Ω Straight Body Solder R110 426 000
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | Radiall |
| Orientation | Straight |
| Model | R110 426 000 |
| Mount Type | Through Hole |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper |
| Series | MMCX |
| Termination Type | Solder |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MCX |
| Body Plating | Gold |
| RS PRO Coaxial Connector PCB Female MCX, 50 Ω, Straight Body SolderBrand | RS PRO |
| Radiall, jack PCB Mount, 50Ω, Solder Termination, Straight BodyBrand | Radiall |
Key Features
- Provides a reliable 50 Ω impedance connection for RF signals.
- Features a female MCX connector gender with straight body orientation.
- Mount type is through hole for PCB mounting applications.
- Gold plating on body and contact offers excellent corrosion resistance.
- Operating frequency supports up to 6 GHz for high-frequency applications.
- Designed for a wide temperature range from -55°C to 155°C.
- Contact material is beryllium copper ensuring durability and conductivity.
- Termination type is solder, enabling secure PCB connections.
Product Description
Radiall R110 426 000 is a MMCX Series Coaxial Connector featuring a through hole mount type and female MCX connector gender. It provides a standard 50 Ω impedance and a straight body orientation, optimized for PCB mounting and reliable signal transmission in RF applications up to 6 GHz.
The connector is constructed with a gold-plated body and contacts, enhancing corrosion resistance and signal integrity. The contact material is high-quality beryllium copper, ensuring excellent electrical conductivity and mechanical robustness.
This MMCX connector operates reliably within a wide temperature range of -55°C to 155°C, making it suitable for demanding industrial and electronic environments. Its solder termination type ensures secure and stable PCB assembly.
Designed for applications including electronic components, power & connectors, and RF coaxial connectors & adapters, this product supports high-frequency signal connections with minimal loss and interference.
Provides a reliable 50 Ω impedance connection for RF signals. Features a female MCX connector gender with straight body orientation. Mount type is through hole for PCB mounting applications. Gold plating on body and contact offers excellent corrosion resistance.
Operating frequency supports up to 6 GHz for high-frequency applications. Designed for a wide temperature range from -55°C to 155°C. Contact material is beryllium copper ensuring durability and conductivity. Termination type is solder, enabling secure PCB connections.
This Radiall MMCX connector is ideal for industrial, laboratory, telecommunications, and manufacturing sectors requiring dependable coaxial connectivity for RF signals. Explore more Coaxial Connectors and electronic components in EnvMart's extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a reliable 50 Ω impedance connection for RF signals.
It supports an operating frequency of up to 6 GHz, making it suitable for high-frequency applications.
This unit operates reliably within a wide temperature range from -55°C to 155°C.
The termination type is solder, which enables secure connections for PCB mounting applications.
The contact material is beryllium copper, ensuring good electrical conductivity and mechanical robustness.
It features gold plating on both the body and contacts, which enhances corrosion resistance and signal integrity.
The mount type is through hole, designed specifically for PCB mounting applications.
This model features a female MCX connector gender with a straight body orientation.
It belongs to the MMCX Series, which is designed for reliable RF signal transmission.
The size is classified as standard, suitable for typical PCB applications.
The country of origin for this connector is India.
It is designed for applications in electronic components, power & connectors, and RF coaxial connectors & adapters.
